Fully Automatic Industrial Welding Robots / robotic spot welding machine

Fully Automatic Industrial Welding Robots / robotic spot welding machine

spot welding robots

automatic welding robot

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

HS-RSH

Contact Us

Request A Quote
Product Details
Product Name:
Fully Automatic Spot Welding System For Application In Automotive Industry
Application:
Transporting And Stacking
Size:
600x1300x1700mm
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Driving Mode:
AC Servo Driving
Repeat Positioning Accuracy (mm):
±0.05
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

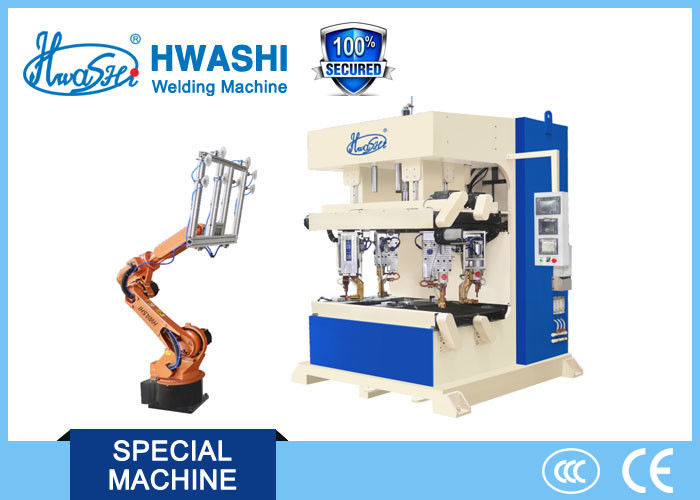

Fully Automatic Spot Welding System for Application in Automotive Industry



1.Adopt four sets of medium frequency inverter welding power system ,with smaller transformer dimension ,weight and higher production efficiency.

2.Adopt hrdraulic pressure system for control welding power and welding electrode up and down movement.

3.Adopt servo motor as mobile driving source for welding head and sheet metal location device. It is of quite good moving accuracy , and saving position data, which can be used for welding different products.

4.In order to achieve automation production , it can match use with material handling robot machine.



This machine can achieve one time welding sheet metal four corners. Adjusting four corer position size as per real condition welding products. Manual loading and discharging. In order to have more automation production , high speed and high production efficiency , machine can be equipped with material handling robot.



Machine can achieve automatic moving and location as well as welding with manual loading and unloading material, which is available for welding different products. It adopts horizontal structure, double welding head , which is driven by servo motor, will moving at Y axis . Double position fixture moving at X axis direction.



Input Power  380V Three-Phase
Welding Power 25Kx4
Input Current 80A
Output Voltage DC5.6V
Max Short Circuit Current 20KA
Max Welding Mould 101 sets
Occupying Rate 1000HZ
Output Mode DC
Servo Motor 400W
Sheet Metal Size 1500x700mm



COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.



APPLICATION

Used to loading and unloading, welding, stacking transportation, gelatinization and spraying industry.
