Hwashi Stainless Steel Industrial Chair Automatic Robot Arm Welding Machine

Hwashi Stainless Steel Industrial Chair Automatic Robot Arm Welding Machine

spot welding robots

automatic welding robot

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

HS-RAW08

Contact Us

Request A Quote
Product Details
Product Name:
Hwashi Stainless Steel Industrial Chair Automatic Robot Arm Welding Machine
Application:
Welding For Sheet Metal, Automobile Parts, Etc.
Size:
600x1300x1700mm
Weight:
170kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Hwashi Stainless Steel Industrial Chair Automatic Robot Arm Welding Machine






DESCRIPTION

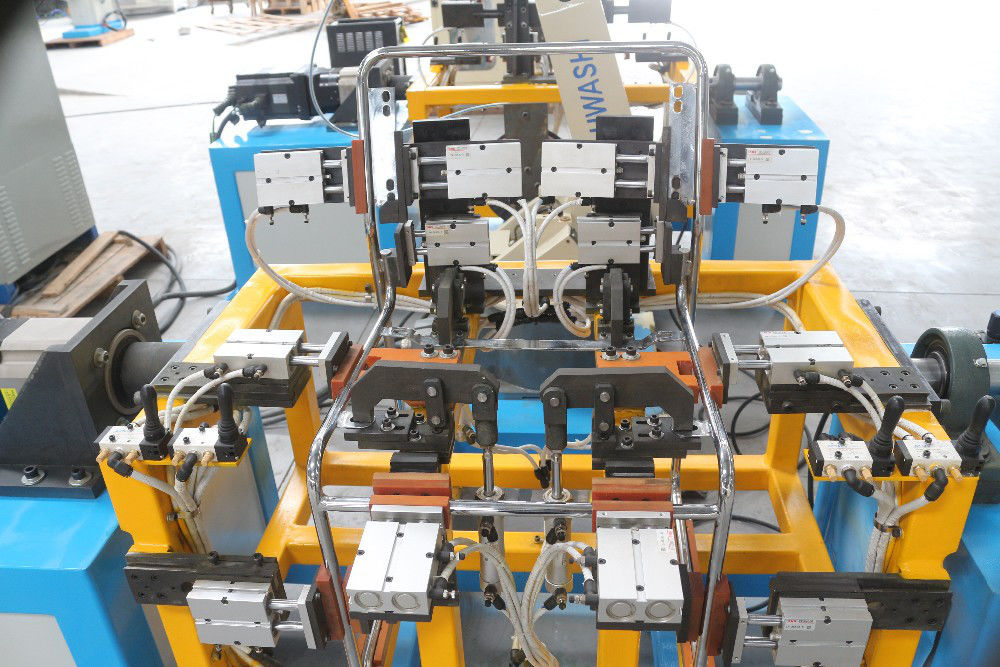

According to the requirements of the product, we design the robot that adopts six-axis robot system equipped with arc welder to complete the welding automatically. The robot uses cylinder or clamp and utilize the leverage principle to fix product. This method can meet the requirement for automatic welding and can guarantee that the robot could weld each part of the product. According to the production efficiency requirement, we design two sets of fixtures. One is used for loading the work piece, the other is used for welding.



While the station 1 is being welded, station 2 is being loaded and fixed the work piece synchronously. Two stations work alternately.
This machine can achieve automatic welding with manually loading material. It can also improve the welding quality and welding efficiency.
What’s more, it can reduce the production cost. The problem of unstable quality and low production efficiency caused by pure manual operation has been solved.





SPECIFICATION

Model HS-RAW08
DOF 6
Driving Mode AC servo Driving
Effective Load (kg) 6
Repeat Positioning Accuracy (mm) ±0.05
Motion Range (°) J1 ±170
J2 ±120~-85
J3 ±85~-165
J4 ±180
J5 ±135
J6 ±360
Max Speed (°/S) J1 150
J2 150
J3 180
J4 270
J5 270
J6 270
Allowable Max Torque J4 7.2
J5 7.2
J6 5.2
Moving Radius (mm) 893
Machine Weight 75







APPLICATION

Applied to all kinds metal, SS , aluminum products.Can be customzed according to your products.





FEATURE

1. Slim, fast six-axis welding
2. robot increases productivity and achieves highest welding performance
3. Large, 50 mm thru-hole for torch cabling, sensor wires and water cooling. Eliminates cable interference,
simplifies programming and reduces cable wear.
4.Optimized mounting area for feeder reduces interference



HS-RAW Series robot improves the accuracy and efficiency



  • Improved drives and motors for accurate positioning and better repeatability.
  • Slim and compact design allows closer installation in less floor space.
  • Maintainability is improved with easier inspections and parts replacement.

Superior Spot Welding Capability

  • Industry leading advanced servo gun software features and technologies.

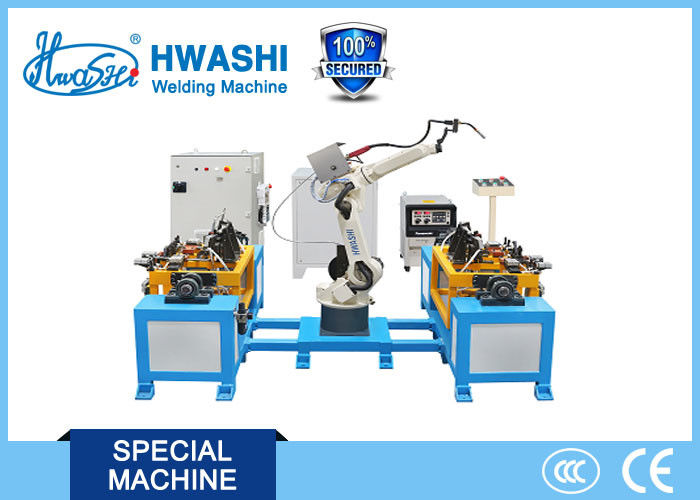

          Hwashi Stainless Steel Industrial Chair Automatic Robot Arm Welding Machine 0





Hwashi Stainless Steel Industrial Chair Automatic Robot Arm Welding Machine 1

Hwashi Stainless Steel Industrial Chair Automatic Robot Arm Welding Machine 2





COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.

We have videos show how our machines work. Also professional R&D team can be provided to design machines according to your unique requirement.

Awaiting cooperating with you ! Thank you !
