HWASHI Six Axis MIG Industrial Welding Robots with Rotate Table

HWASHI Six Axis MIG Industrial Welding Robots with Rotate Table

    • HWASHI Six Axis MIG Industrial Welding Robots with Rotate Table
    • HWASHI Six Axis MIG Industrial Welding Robots with Rotate Table
  • HWASHI Six Axis MIG Industrial Welding Robots with Rotate Table

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: HS-R6-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: HWASHI Six Axis MIG Industrial Welding Robots With Rotate Table Application: Welding For Storage Wire Mesh / Shelf Corner
    Size: 600x1300x1700mm Weight: 2000kg
    Condition: New Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years

    HWASHI Six Axis MIG Industrial Welding Robots with Rotate Welding Table



    DESCRIPTION

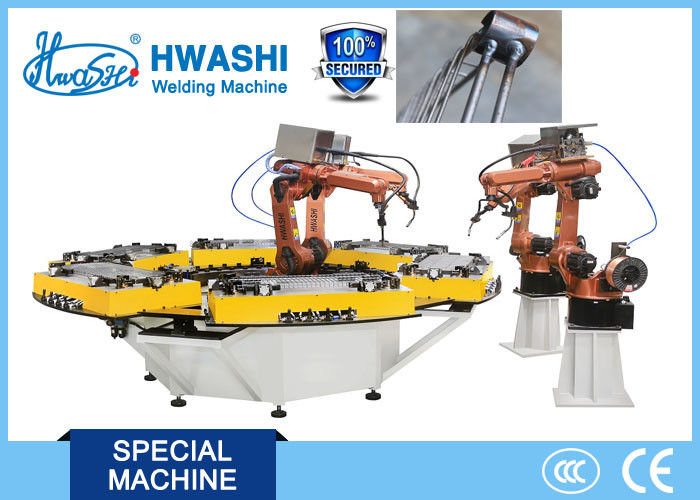

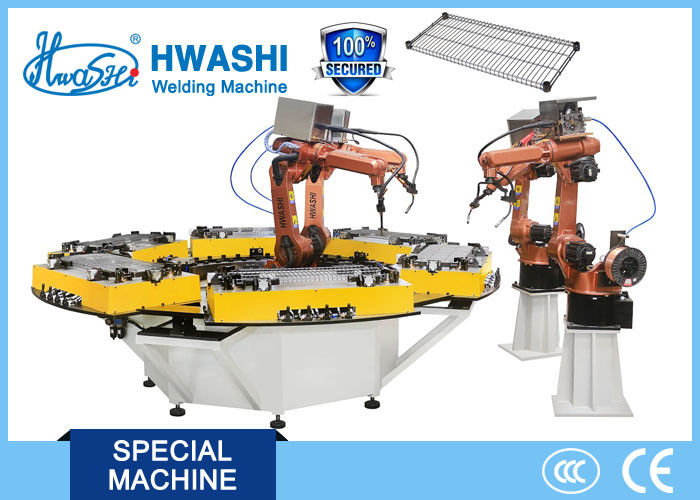

    This automatic CO2 MIG robot welding system is customized for welding Storage Wire Mesh / Shelf  .It has rotary table with 8 positions for loading materials



    Welding Process:

    1. Firstly, put the Storage Wire Mesh / Shelf parts inside fixture, then it will be clamped in jig.

    2. Then start the machine, and positioner will rotate fixture which is loaded with work piece to welding position;





    SPECIFICATION



    Name HS-RAW06
    Type Standard Type with integrated torch
    Structure 6-axis, independent multiple articulation
    Wrist Load 6kg
    Motion Range Max Reaching Distance 1437mm
    Min Reaching Distance 404mm
    Front and Back Motion Range 1033mm



    Motion

    Speed

    Arm Rotation 225°/S
    Lifting Arm 225°/S
    Stretching 225°/S
    Wrist Rotation 425°/S
    Bending 425°/S
    Reverse 629°/S
    Repeated Positioning Accuracy Within ±0.08mm
    Servo Motor Total Power 3400W
    Brake Specs All shaft-driven brake
    Installation Normal
    Weight About 170kg






    FEATURES:



    1. Welding system: Panasonic  MIG or TIG welding machine with automatic wire feeding system. Stable performance.

    2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.

    3. Welding gun system: famous brand TBI welding gun.

    4. Welding gun cleaning and wire cutting system: TBI brand.

    5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.

    6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.

    7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

    8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.







    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
