Six Axis Robotic TIG Welding Machine , Arc Welding Robot Arm for Wire Racks Corner
DESCRIPTION

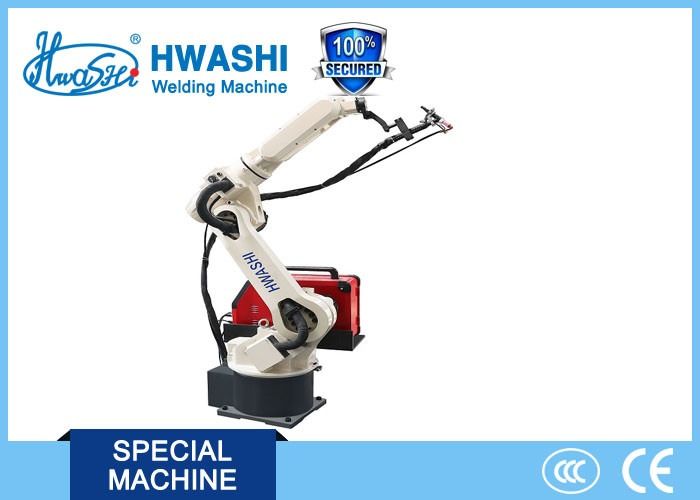

1.Six-Axis Robot System HS-RH08, equipped with TIG Welder from Japan Panasonic.
2.Robot Locating Fixture
Robot arm model: HS-RH08, be able to lift 8kg of item. The motion radius is 1437mm which means the maximum reaching distance is 1437mm. Front and back distance could reach 1033mm. Six-axis movement.
SPECIFICATION
| Items | Parameters | |
| Model | HS-08RH | |
| Degrees of Freedom | 6 | |
| Driving Method | AC servo driving | |
| Max. Payload | 8kg | |
| Repeated Positioning Accuracy | ±0.05mm | |
| Motion Range | J1Axis | ±170° |
| J2Axis | ＋120°～ -85° | |
| J3Axis | ＋85°～ -165° | |
| J4Axis | ±180° | |
| J5Axis | ±135° | |
| J6Axis | ±360° | |
| Max. Speed | J1Axis | 2.27rad/s, 130°/s |
| J2Axis | 2.27rad/s, 130°/s | |
| J3Axis | 2.27rad/s, 130°/s | |
| J4Axis | 3.93rad/s, 225°/s | |
| J5Axis | 2.53rad/s, 145°/s | |
| J6Axis | 6.98rad/s, 400°/s | |
| Allowed Torque | J4Axis | 12N.m |
| J5Axis | 10N.m | |
| J6Axis | 8N.m | |
| Environment | Temperature | 0℃～55℃ |
| Humidity | 20%～80%(No frost) | |
APPLICATION
Applied to Wire Racks Corner and another TIG welding.
FEATURES:
1. Welding system: Panasonic TIG welding machine with automatic wire feeding system. Stable performance.
2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.
3. Welding gun system: famous brand TBI welding gun.
4. Welding gun cleaning and wire cutting system: TBI brand.

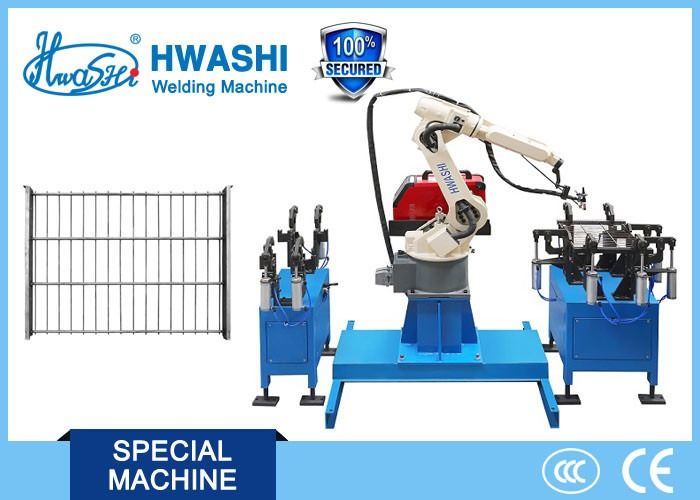

5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.
6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.
7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.
8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.
