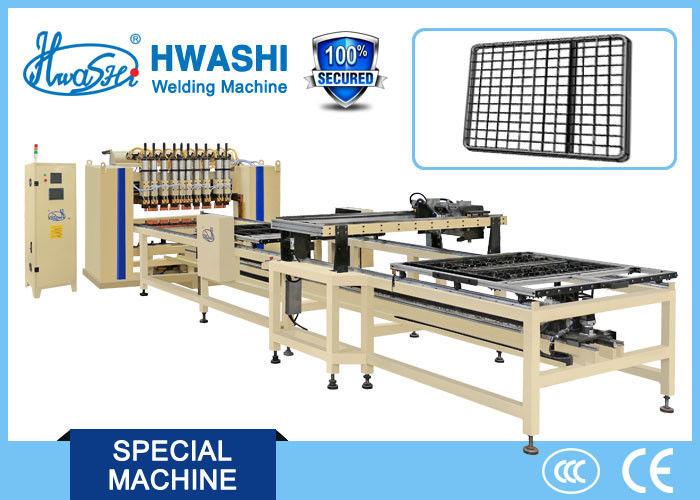

Automatic Bedbase Wire Welding Machine , Bunk Bed Frame Resistance Welder

Automatic Bedbase Wire Welding Machine , Bunk Bed Frame Resistance Welder

Automatic Bedbase Wire Welding Machine , Bunk Bed Frame Resistance Welder

Product Details:

Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-SQ-MF100Kx2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Automatic Bedbase Wire Mesh Welding Machine , Bunk Bed Frame Resistance Welder Application: Welding Of Bedbase Wire Mesh , Bunk Bed Frame
Size: 10000x2400x1850mm Weight: 3500kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years

Automatic Bedbase Wire Mesh Welding Machine , Bunk Bed Frame Resistance Welder



DESCRIPTION



This machine is customized for welding Bedbase Wire Mesh , Bunk Bed Frame



The operator only needs to put the wire and tube profile in the jigs and press the start button, then the machine will conduct welding automatically. It is designed with double-layer feeding system for continuous working.



Row Welding Structure: The welding heads which will be installed on the beam. The copper mould is equipped with Model T groove which can be slightly adjusted from left to right. It is convenient to adjust the distance between welding spots. Suitable for welding work pieces with multiple types of pitch. The welding program of row welding heads is flexible. You may choose to weld from the middle to the two sides or from the two sides to the middle or single welding.



Power Source System: Adopts 2 sets of 100K MFDC transformer, The three-phase power supply, through rectified by a special inverter, is converted into 1000Hz AC voltage and then is transmitted to a medium frequency transformer. The current is rectified in order to supply DC welding current.



Welding Control System: Adopt the intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Automatic testing and compensation which could guarantee the situation that the machine will be at work only when the current value is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint. It can Store 101 sets of special welding program. The features of quick response and high precision of control may help you obtain high quality of welding spots.



Automatic Wire Filling System: Automatic feeding the wire with 2mm diameter and the max length is 1000mm. Use the servo motor to drive and use cylinder to vibrate in order to make sure the wires are in ordered arrangement. This machine is designed 4 sets of automatic wire feeding system for the horizontal and vertical wire filling.







Technical Parameters:



No. Model WL-SQ-MF100Kx2
1 Input Power Three-phase
2 Rated Capacity 100KVA
3 Rated Input Current 300A
4 Rated Duty Cycle Rate 25%
5 Secondary Voltage Adjusting Grade 2
6 Max Secondary Floating Voltage 12.5V
7 Secondary Max Short Circuit Current 26KA
8 Continuous Working Current 20KA
9 Welding Transformer Insulation Grade F
10 Welding Machine Pressuring Curves 2 types
11 Welding Programs Number 101 types
12 Welding Head 10sets
14 Effective Welding Width 1400mm
15 Effective Welding Length 2000mm
16 Stepping Welding Moving Speed 500mm-1000mm/sec
17 Upper Electrode Stroke 80mm
18 Lower Electrode Stroke 50mm





APPLICATION



Continuous welding Bedbase wire mesh ,Bunk Bed Frame



COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







          Automatic Bedbase Wire Welding Machine , Bunk Bed Frame Resistance Welder



          Automatic Bedbase Wire Welding Machine , Bunk Bed Frame Resistance Welder

Sample



Automatic Bedbase Wire Welding Machine , Bunk Bed Frame Resistance Welder
