Laser Welding Robots For Divided Hotpot , Six Axis Laser Welding Robot Machine

Laser Welding Robots For Divided Hotpot , Six Axis Laser Welding Robot Machine

robotic spot welding machine

automatic welding robot

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

HS-R6-08

Contact Us

Request A Quote
Product Details
Product Name:
Laser Welding Robots For Divided Hotpot , Six Axis Laser Welding Robot Machine
Application:
Welding For Divider Hotpot Middle Plate
Size:
6000x1300x1700mm
Weight:
1100 Kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

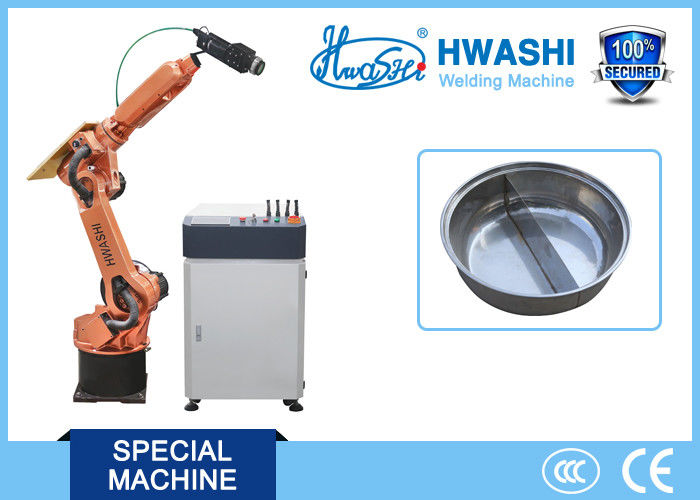

Laser Welding Robots For Divided Hotpot , Six Axis Laser Welding Robot Machine





DESCRIPTION



This welding robot is designed for welding middle plate . Adopt 6 axis robot with Laser welder for automatic welding  Use fixture to fix the middle panel divider and hotpot and ensure the location requirement for robotic automatic welding.





COMPOSITION:

1. Welding system: Layer welding machine .Stable performance.

2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.

3. Working station positioner: It is designed with one working table with fixture

4. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.

5. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.





Items Parameters
Model HS-06RH
Degrees of Freedom 6
Driving Method AC servo driving
Max. Payload 8kg
Repeated Positioning Accuracy ±0.05mm
Motion Range J1Axis ±170°
J2Axis +120°~ -85°
J3Axis +85°~ -165°
J4Axis ±180°
J5Axis ±135°
J6Axis ±360°
Max. Speed J1Axis 2.27rad/s, 130°/s
J2Axis 2.27rad/s, 130°/s
J3Axis 2.27rad/s, 130°/s
J4Axis 3.93rad/s, 225°/s
J5Axis 2.53rad/s, 145°/s
J6Axis 6.98rad/s, 400°/s
Allowed Torque J4Axis 12N.m
J5Axis 10N.m
J6Axis 8N.m
Environment Temperature 0℃~55℃
Humidity 20%~80%(No frost)
Other

Avoid inflammable, explosive, corrosive gas and liquid;

No water, oil, dust;

Keep away from noise(plasma)

Installation Method Ground installing
Robot Main body 180kg
Power Three-phase 380V,50HZ/60HZ,3.6KVA
Electric Cabinet Weight 200kg
