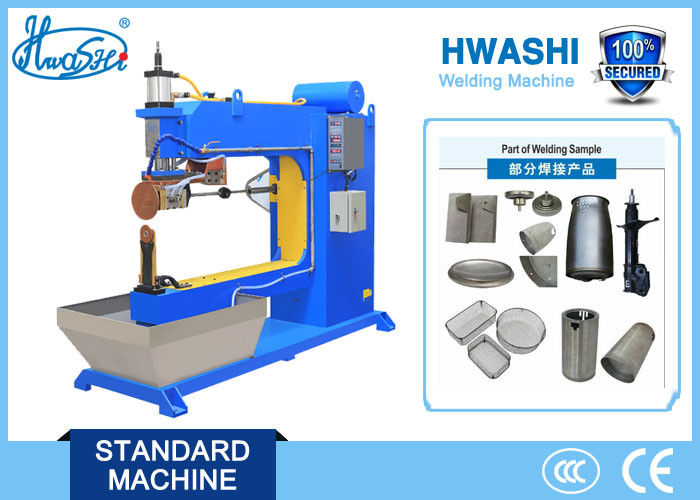

Long Copper Arm Resistance Seam Welding Machine , Rolling Seam Welder Machine

Basic Information
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-FS-90K
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Detail Information
Product Name: Resistance Long Copper Arm Seam Welding Machine, Rolling Seam Welder Equipment Application: Welding For Water Kettle
Size: 480x900x1600*mm Condition: New
Warranty: 12 Months Standard: CE/CCC/ISO
Service Life: 8-10 Years Duty Cycle Rate: 20%
Rated Power: 75KVA
High Light:

seam welder machine

,

mig tig welding machine


Product Description



Long Copper Arm Resistance Seam Welding Machine , Rolling Seam Welder Machine



DESCRIPTION



  • Generally, AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available. In general, the welding thickness is within 3mm of single plate.

  • The weld seam of roll welding is composed of welding spots. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.







SPECIFICATION



Items Specification
Display 5 Inches Blue Display Screen
Rated Power 100KVA
Input Voltage AC 380V, 50Hz
Duty Cycle Rate 20%
Maximum Short Circuit Current 25000A
Inverter Frequency 1000Hz
Welding Cycle Period 11
Welding Pulse Times 3
Current Slow Rise And Down Control Yes
Stored Welding Models 20
Throat Depth 300mm
Cylinder Size

¢100x100mm







APPLICATION

Suitable for welding all kinds of metal kettle water tank,and bottom base.



Similar Welding samples

Long Copper Arm Resistance Seam Welding Machine , Rolling Seam Welder Machine 0Long Copper Arm Resistance Seam Welding Machine , Rolling Seam Welder Machine 1Long Copper Arm Resistance Seam Welding Machine , Rolling Seam Welder Machine 2





FEATURE



  1. Adopt intelligent microcomputer single piece controller which achieve pure digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online.
  2. Adopt intelligent microcomputer control welding system. When the voltage fluctuates, it will compensate the welding current automatically to ensure the stability of welding.
  3. Adopt digital circuit control; select the components from famous factories in the world to ensure the equipment could operate steadily in the long run.
  4. Adopt SEMIKRON from West Germany, IXYS and IR silicon controlled from United States. High precision, long operating life, achieve high stability control of the magnitude of current.
  5. The transmission tile axis adopts the latest mercury conductive technology from abroad. State-of –the-art technology with good performance in transmission and conductivity.
  6. Welding roll wheel adopts the alloy copper material from Japan. High rigidity, good conductivity.



COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.

Long Copper Arm Resistance Seam Welding Machine , Rolling Seam Welder Machine 3



Long Copper Arm Resistance Seam Welding Machine , Rolling Seam Welder Machine 4Long Copper Arm Resistance Seam Welding Machine , Rolling Seam Welder Machine 5Long Copper Arm Resistance Seam Welding Machine , Rolling Seam Welder Machine 6
