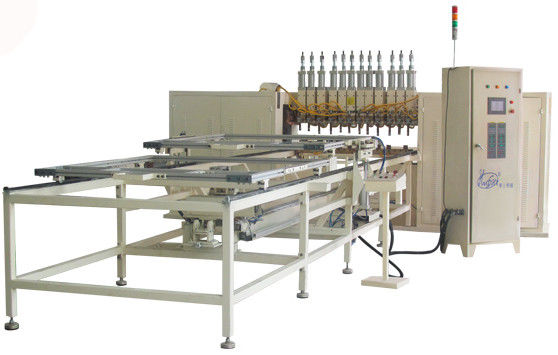

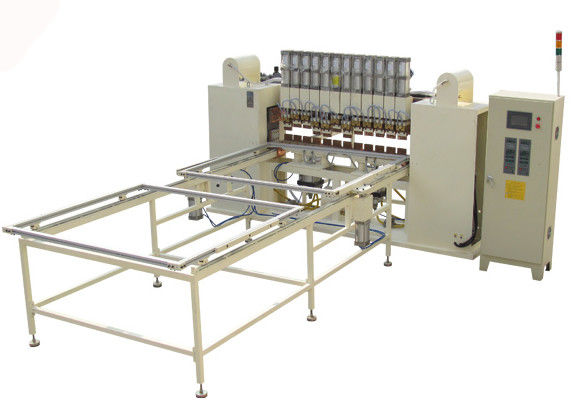

Steel Wire Holding Rack Welder , CNC System Welded Wire Mesh Welding Machine

Steel Wire Holding Rack Welder , CNC System Welded Wire Mesh Welding Machine

    • Steel Wire Holding Rack Welder , CNC System Welded Wire Mesh Welding Machine
    • Steel Wire Holding Rack Welder , CNC System Welded Wire Mesh Welding Machine
    • Steel Wire Holding Rack Welder , CNC System Welded Wire Mesh Welding Machine
  • Steel Wire Holding Rack Welder , CNC System Welded Wire Mesh Welding Machine

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-SQ-150Kx2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Steel Wire Holding Rack Welder, CNC System Welded Wire Mesh Welding Machine Application: Welding Of Oven Wire Shelf, Wire Rack
    Size: 4000x1380x1850mm Weight: 1500kg
    Welding Diameter: 1-8mm(can Be Customized) Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years
    Welding Material: Iron , Carbon Steel , Stainless Steel And Etc.



    Steel Wire Holding Rack Welder , CNC System Welded Wire Mesh Welding Machine

    Steel Wire Holding Rack Welder, CNC System Welded Wire Mesh Welding Machine
    Detail machine picture you can find in bottom page.



    DESCRIPTION



    This kinds of multiple head spot welding machine is our customized machine, which welding head and welding power will be depent on your products and real needs.



    Here are some factors will infuence you choose machine:



    1.Wire mesh products dimension.(max. and min. Length ,width)

    2.Wire diameter( generally 2-6mm)

    3.Your required welding production rated.



    For getting recommend machine with quotation , you only need to send us your products drawing with detail information .  :)



    APPLICATION



    Application: weld metal wire mesh, goods shelf, guard rail, air conditioner mesh, dish rack etc. Continuous welding wire mesh whose width is within 2000mm, length is not restricted.



    Main Engine Control System: Adopt the touch screen of Japan Panasonic as the human-machine interface, Chinese-English input. The PLC, as the control hub as the whole machine, is in charge of reading, transmitting and controlling all kinds of signal processing and coordinating with various external instructing transmission signal mechanism in order to ensure the validity of all orders of execution of the machine.





    SPECIFICATION



    Model

    WL-SQ-150K×8

    Input Voltage

    Three/two-phase 380V

    Input Current

    400A

    Output Voltage

    12V

    Max Short Circuit Current

    45000A

    Welding Effective Width

    2000mm

    Welding Effective Length

    not restricted

    Feeder Moving Speed

    500mm/sec

    Upper Welding Cylinder

    ¢100x100mm

    Lower Welding Cylinder

    ¢160x100mm







    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Can custom design and manufacture based on customers' needs.



    3. Use the most advanced technology ball screw driving to realize higher precision and efficiency.



    4. Key parts use the best quality. Transformer made of copper by ourselves, no spark and excellent welding quality.



    5. There are similar stock to show to customers when you come to visit.



    6. Quick delivery: 15-30 days as we have spare parts stock.



    7. Can do drop shipping: do proper export wood package and arrange shipment for customers.
