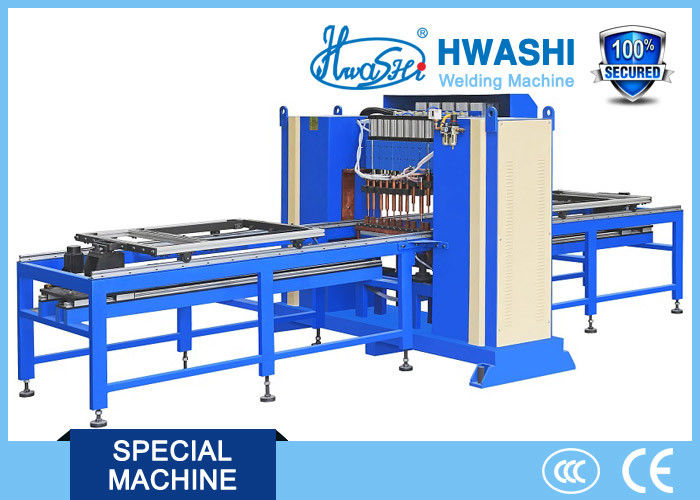

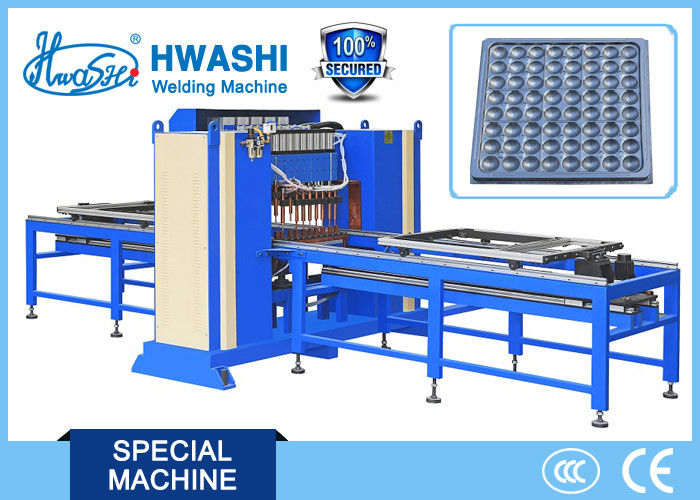

Ten Head Automatic Spot Welding Machine for Stainless Steel Floor Sheet

Ten Head Automatic Spot Welding Machine for Stainless Steel Floor Sheet

sheet metal spot welder

head welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-100x4

Contact Us

Request A Quote
Product Details
Product Name:
HWASHI Ten Head Automatic Spot Welding Machine For Stainless Steel Floor Sheet
Application:
Welding For Stainless Steel Floor Sheet
Size:
2500x1600x1800mm
Weight:
3600kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description



Ten Head Automatic Spot Welding Machine for Stainless Steel Floor Sheet



DESCRIPTION



According to your product, and the characteristics of long secondary of automatic moving. The machine adopts the method of automatic feeding, and cylinder locates the position of product. The table adopts design of ball head so that it is more convenient to move the sheet metal.



FEATURE:

  • Machine Frame:It adopts reinforced special design steel frame with C structure. The gravity reasonably ensures strength and stability of the machine frame when at high speed running.
  • Power Source System: Adopt 4 sets of 50KVA special resistance welding transformer as the welding power source. Single-spot welding. Continuous duty cycle rate is 25%; the output current is larger than 21000A of one transformer. The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 12000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful in order to obtain high quality, high efficiency, stable welding spots.
  • Main Engine Control System: Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Automatic testing and compensation which could guarantee the situation that the machine will be at work only when the current value is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint. The features of quick response and high precision of control may help you obtain high quality of welding spots.

Application:



This machine is extremely suitable for welding metal sheet in electronic appliances,automobile and other industries.



Technical Parameters:



S.N Items Wl-SQ- 50Kx4
1 Input Voltage 380V single phase
2 Power 50KVAx4
3 Input Current 400A
4 Output Voltage 12V
5 Maximum Welding Current 21000Ax4
6 Maximum Welding Model 101Kinds
7 Welding Electrode 10
8 Effective Welding Width 650mm
9 The size of working table 800x1500mm


          Ten Head Automatic Spot Welding Machine for Stainless Steel Floor Sheet 0





Ten Head Automatic Spot Welding Machine for Stainless Steel Floor Sheet 1

Ten Head Automatic Spot Welding Machine for Stainless Steel Floor Sheet 2

Ten Head Automatic Spot Welding Machine for Stainless Steel Floor Sheet 3
