Large Copper Table Type Hanging Sheet Metal Welder for steel cabinets

Large Copper Table Type Hanging Sheet Metal Welder for steel cabinets

metal welding equipment

head welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SP-50K

Contact Us

Request A Quote
Product Details
Product Name:
Large Copper Table Type Hanging Partable Spot Welding Machine For Steel Cabinets
Application:
Welding Of Security Doors, Cabinets, Household Appliances
Weight:
533kg
Warranty:
1year
Standard:
CE/CCC/ISO
Color:
Customized
Material:
Iron
Size:
2500x1800x1800mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

X Type / C Type Hanging Portable Spot Welding Machine , Mini Spot Welder



Description:

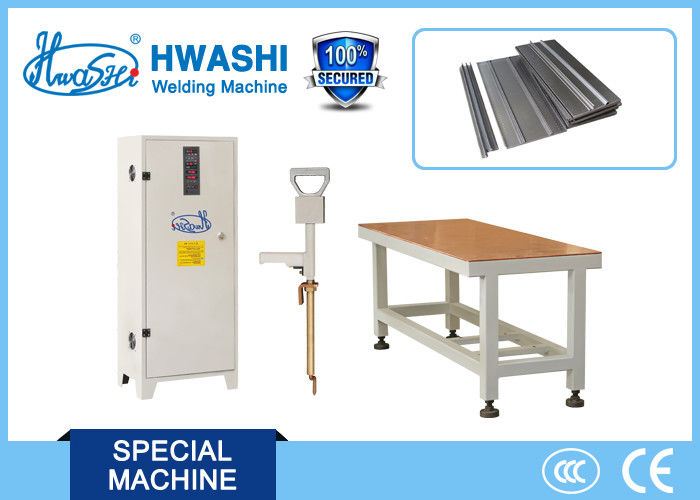

This handheld spot welder is designed with large platform .This machine composes of 1 set 50K AC pulse welding power , handheld welding gun and welding platform and so on. Adopt manual holding welding gun to operate . Manually place work piece on the platform and positioning cylinder will fix work piece through lever principle and then operator holds the welding gun to weld it. This machine structure is simply but flexible, specially for welding metal panel without visible trace on back side to improve product quality.



Features

  1. Machine Frame:It adopts enhanced special design steel frame with C structure. The gravity reasonably ensures strength and stability of the machine frame when at high speed running.
  2. Handheld welding gun mechanism: adopt handheld welding gun structure, light weight, 600mm as whole length , reasonable handheld way. Manual holding is flexible.
  3. Welding Platform: adopt cylinder or high-speed clamper and lever principle to fix work piece to guarantee positioning requirement for welding. Loading materials is convenient and flexible.
  4. Welding power: adopt 1 set of 50KVA special resistance welding transformer as the welding power source. Single-spot welding. Continuous duty cycle rate is 50%; the output current is larger than 21000A. The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 12000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful in order to obtain high quality, high efficiency, stable welding spots.
  5. Welding Control System: Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Automatic testing and compensation which could guarantee the situation that the machine will be at work only when the current value is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint. The features of quick response and high precision of control may help you obtain high quality of welding spots.
Technicla Parameters:



No.

Item

Parameter

1

Welding Power AC 50K
2 Input voltage Three phase 380V±10% 50Hz
3 Rated capacity

50KVA

4 Power factor

90%

5 Duty cycle

25%

6 Frequency

50Hz

7 Welding Model 16 kinds
8 Output way

AC

9 Max. output voltage

AC 9.6V

10

Insulation grade

F

11

Maximum Short-circuit current

21KA

12

Program segment time

adjustable range

0~99 cycles
13 Welding Gun Length 760mm
14 Electrode holder length 400mm
15 Copper Platform 1200mmX500mm( 2 tables)
16 Cable length of welding gun 4m


Application

Mainly used for welding of general fixed welding machine which cannot or inconvenient for welding low carbon steel, low alloy steel, stainless steel, coated steel, plates and bars material. Widely used in automobile, commercial sheet metal, security doors, cabinets, household appliances, and other industries.







COMPATITIVE ADVANTAGE



1. Prompt Response to Customers: Your satisfaction is the goal we pursue.

 HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.
