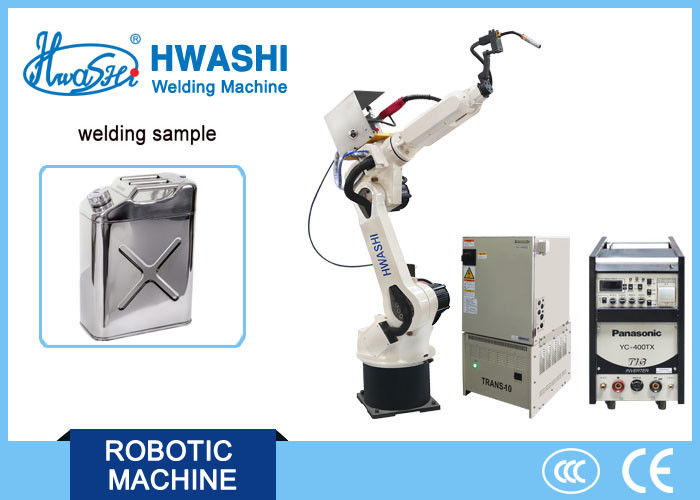

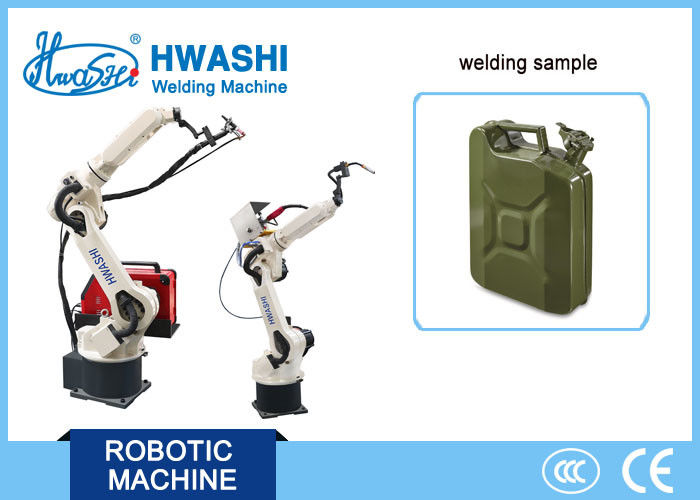

Multi Function Automatic Welding Machine Industrial Robot Arm 4kVA Input Power

Multi Function Automatic Welding Machine Industrial Robot Arm 4kVA Input Power

    • Multi Function Automatic Welding Machine Industrial Robot Arm 4kVA Input Power
    • Multi Function Automatic Welding Machine Industrial Robot Arm 4kVA Input Power
  • Multi Function Automatic Welding Machine Industrial Robot Arm 4kVA Input Power

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: HWASHI
    Certification: CCC CE ISO
    Model Number: HR-R6-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 10000-20000 /set
    Packaging Details: wooden packing
    Delivery Time: 7-45 days
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Name: Multi Function Automatic Welding Machine/Welding Equipment With Robotic Arm Warrant: 1 Year
    DOF: 6 Driving Mode: AC Servo Driving
    Effective Load: 10kg Repeat Positioning Accuracy: ±0.05mm
    Moving Radius: 1400mm Weight: 180kg
    Input Power: 4kVA Input Voltage: Three- Phase 380V
    Frequency: 50Hz





    Robot arm model: HS-RH06, be able to lift 6kg of item. The motion radius is 1437mm which means the maximum reaching distance is 1437mm. Front and back distance could reach 1033mm. Six-axis movement.





    Name HS-RH06
    Type Standard Type
    Structure 6-axis, independent multiple articulation
    Wrist Load 6kg
    Motion Range Max Reaching Distance 1437mm
    Min Reaching Distance 404mm
    Front and Back Motion Range 1033mm



    Motion

    Speed

    Arm Rotation 225°/S
    Lifting Arm 225°/S
    Stretching 225°/S
    Wrist Rotation 425°/S
    Bending 425°/S
    Reverse 629°/S
    Repeated Positioning Accuracy Within ±0.08mm
    Servo Motor Total Power 3400W
    Brake Specs All shaft-driven brake
    Installation Normal
    Weight About 170kg





    Panasonic 350 MIG Welder Technical Parameters

    Model: YD-350GR3

    Name: Japan Panasonic All Digital CO2/MAG Welder

    Description:

    Welding Material: Carbon Steel, Stainless Steel

    1. All digital welder: digital power+digital wire feeder

    2. Double CPU control, high speed high precision data treatment. Increase basic welding performance.

    3. Good arc initiation performance

    4. Wire feeder is equipped with digital motor with encoder. Achieve high precision wire filling.

    5. Welding expert data base.

    6. Increase strength of welding thin plate.

    7. Suitable for multiple kinds of arc welding.

    8. Equipped with stainless steel MIG welding mode.

    9. Equipped with welding condition memory and fuzzy control function.

    Digital communication and data management function.





    Model YD-350
    Control Mode IGBT Inverter
    Rated Input Voltage Phase No.   AC380V three-phase
    Input Power Frequency Hz 50/60
    Input Capacity KVA/KW 14.5/14
    Output Current A 350
    Output Voltage V 31.5
    Rated Duty Cycle Rate % 60
    No Load Voltage V 70
    Output Current Range A 30-430(ohmic load output capacity)A
    Output Voltage Range V 12-35.5(ohmic load output capacity)V
    Initial Current Range A 30-430(ohmic load output capacity)A
    Arc Ending Voltage Range A 12-35.5(ohmic load output capacity)V
    Welding Mode   Individualize/centralize
    Arc Initiation Mode   High frequency arc initiation
    Shell Protection Grade   IP21S
    Insulation Grade   H
    Cooling Mode   Forced Air Cooled
    Suitable Welding Wire Type   Solid wire/ flux-cored wire
    Wire Diameter

    Solid Wire 0.8/0.9/1.0/1.2mm

    Flux-cored wire carbon steel: 1.2 flux-cored wire stainless steel 0.9/1.2mm

    Wire Material

    MS, MS-FCW( for 1.2mm only)

    SUS, SUS-FCW for MIG/MAG (for 1.2mm only)

    Storage   9 channels for welding model storage
    Waveform control mode   Digital control: -7~7
    Time sequence   welding,welding-arc ending,beginning-welding-arc ending,arc spot welding
    Protective gas   CO2 welding (CO2:100%) MAG weldiing (Ar: 80%+CO2:20%)
    MIG welding(Ar:98%+O2:2%)
    Gas checking time S Max 60s
    Gas Pre-Filling Time S 0~5 continuous adjustment (0.1s progressive increase)
    Gas Delay-End Time S 0~5 continuous adjustment (0.1s progressive increase)
    Arc Spot Welding Time S 0~5 continuous adjustment (0.1s progressive increase)
    Dimension mm 380×510×600mm
    Welight kg 50

















    Our Services

    Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi Technology industrial area, huiyang, huizhou city. It is a high-tech enterprise specializing in developing, manuafacturing, and selling of resistance welding machine, automatic welding machine and industrial robot.
    Hwashi company keep up with the trend of intelligentized manufacturing in the world. It has established 50000 square meters of robot developing base in Yichun, Jiangxi and brought in the advanced processing equipments. It has high-quality technical team and workers concerning the mechanical, electronic, welding ,automatic control, mechatronics, and management. Aim at providing high efficient automatic welding solutions to customers and becoming the global leading company for industrial intelligent machinery.
