Place of Origin:
Guangdong China
Brand Name:
HWASHI
Certification:
CCC \ CE
Model Number:
WL-SQ-150K
Contact Us
Video

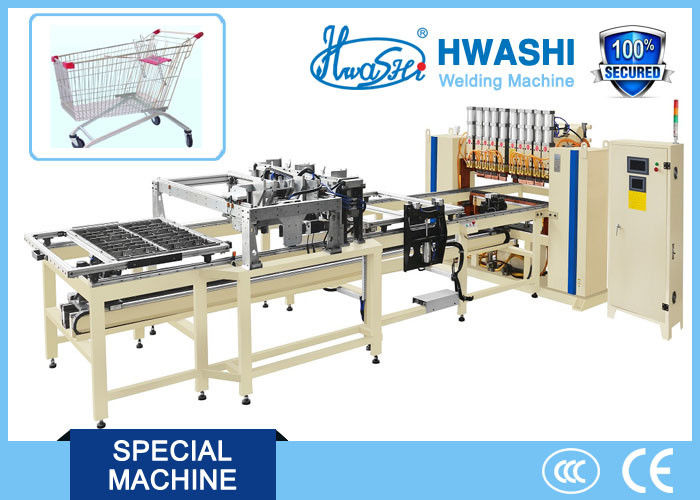

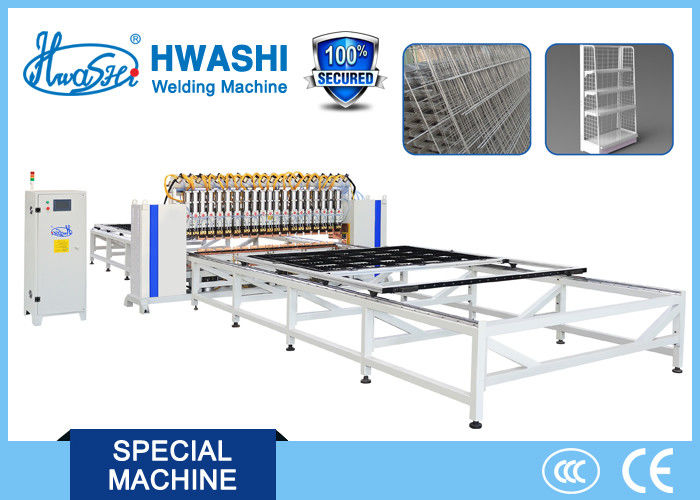

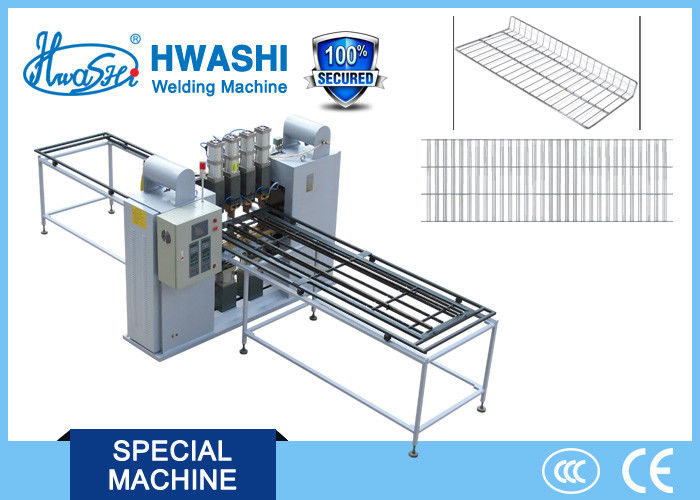

This machine is composed of gantry type structure, welding transformer, pneumatic drive device, upper and lower electrodes, electrical control system, cooling system, and PLC operation control system. The general welder for welding flat net in the market can only weld the square and rectangle net. However, except for square and rectangle, this machine could be used to weld triangle, circular and other shapes of flat net.
FEATURES
1. This machine is designed as reinforced gantry structure with the advantage of high rigidity and stable running. The welding power is designed with medium frequency inverter power supply systems. The welding current of each single point could be adjusted independently in order to ensure the reliability of welding spot.
2.For the sake of increasing the output efficiency, it is designed as double-layer feeder for cycle running. When one feeder is under welding process, another feeder could be loaded with material.
3.Automatic stepping welding,Servo motor will drive the stepping belt to ensure the accuracy of stepping position. Automatic demolding device: after welding the product, the demolding cylinder will jet up for preparationof automatic unloading. Automatic unloading device will grab the product via servo motor control.
4.It will move down to grab the welded product and moving to the setting position via servo motor. It help to reduce laborforce and lower labor intensity. It is designed as 90º rotation of unloading feeder for the convenience of transportation of welded product.
SPECIFICATION
| Input Voltage | two-phase 380V |
| Input Current | 400A |
| Output Voltage | 12V |
| Max Short Circuit Current | 45000A |
| Welding Effective Width | 2000mm |
| Welding Effective Length | not restricted |
| Feeder Moving Speed | 500mm/sec |
| Upper Welding Cylinder | 100x100mm |
| Lower Welding Cylinder | 160x100mm |
APPLICATION
Suitable for welding wire mesh whose width is within 2000mm, length is not restricted.
SAMPLES
MATERIAL CONFIGURATION
1) Adopt silicon controlled from IXYS of United Stated with high precision and long service life.
2) Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.
3) Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system. Clear interface, easy operation, and stable performance.
4) Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within ±15%. Prompt current compensation to ensure the stable welding current of power source.
5) Adopt Taiwan TECO servo motor with powerful strength, high precision and stable control.
6) Adopt South Korea SANWO pneumatic components with stable performance.
7) The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity. Less power consumption, more powerful and stable capacity.
8) Strictly comply with CE security standard to design the machine. Lower the accident rate.
Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi Technology industrial area,huiyang, huizhou city. It is high-tech enterprise specializing in developing, manuafacturing, and selling of resistance welding machine, automatic welding machine and industrial robot.
Hwashi company keep up with the trend of inteeligentized manufacturing in the world. It has established 5000 square meters of robot developing base in Yichun, Jiangxi and brought in the advanced processing equipments. It has high-quality technical team and workers concerning the mechanical, electronic , welding, automatic control,mechatronics, and management. Aim at providing high efficient automatic welding solutions to customers and becoming the global leading company for industrial inyelligent machinery.
COMPATITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
1: Can you provide customized service for our product
Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.
2. What does the whole welding robot system include?
Answer: The whole welding robot system includes the robot arm, controller, welding power source, positioners (one-axis or two axis), fixtures, welding gun cleaner, safety fence, etc.
3. What's the warranty period and delivery time?
Answer: Warranty period is 12 months. While the delivery time would be within 30 days after receiving your deposit.
