IBC Tank Tubular Mesh Welding Machine 300A with Automatic Unloading System

IBC Tank Tubular Mesh Welding Machine 300A with Automatic Unloading System

wire welding machinery

wire welding equipment

Place of Origin:

Guangdong, China

Brand Name:

HWASHI

Certification:

CCC / CE

Model Number:

WL-SQ-MF90K*6

Contact Us

Request A Quote
Product Details
Condition:
New
Welding Power:
Three-phase Medium Frequency DC Power
Input Current:
300A
Continuous Working Current:
20kA
Effective Welding Width:
1150mm
Effective Welding Length:
4200mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
US $10,000-15,000 / Set
Packaging Details
wooden packing
Delivery Time
30 days after payment
Supply Ability
30 Set/Sets per Month
Product Description







DESCRIPTION



This machine is the special automatic welding machine for IBC tank tubular mesh within 4000×1150mm.

HWASHI Automatic Feeder and Unloading System IBC Tote Tank Weding Machine

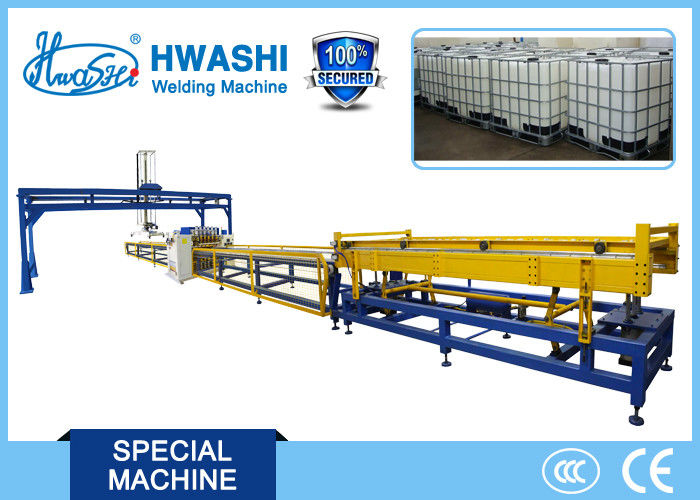

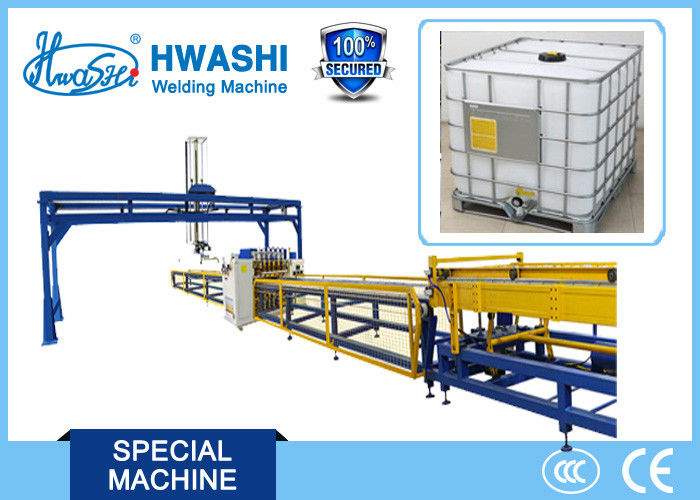

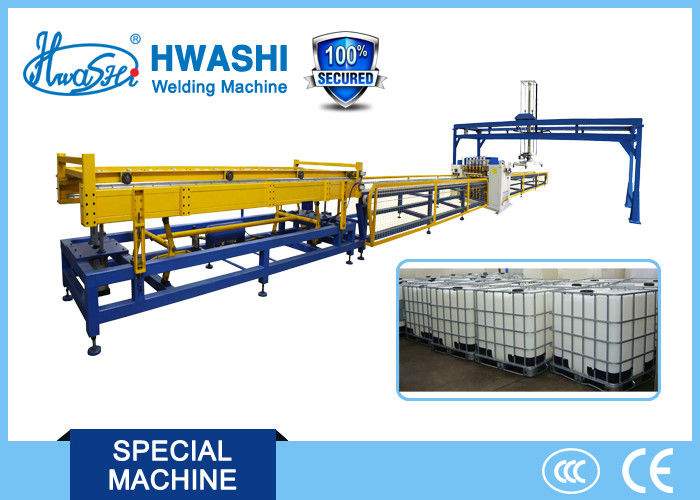

Six-Head Gantry Type Welding Machine WL-SQ-MF-90Kx6 is the special automatic welding machine for welding IBC tank tubular frame. IBC intermediate bulk container is an essential tool in modern storage, liquid transportation. The IBC tank is composed of inner container and metal frame. The metal frame is made of bended tubular mesh.



FEATURES

1. This machine is designed as reinforced gantry structure with the advantage of high rigidity and stable running. The welding power is designed with medium frequency inverter power supply systems. The welding current of each single point could be adjusted independently in order to ensure the reliability of welding spot.



2.For the sake of increasing the output efficiency, it is designed as double-layer feeder for cycle running. When one feeder is under welding process, another feeder could be loaded with material.



3.Automatic stepping welding,Servo motor will drive the stepping belt to ensure the accuracy of stepping position. Automatic demolding device: after welding the product, the demolding cylinder will jet up for preparationof automatic unloading. Automatic unloading device will grab the product via servo motor control.



4.It will move down to grab the welded product and moving to the setting position via servo motor. It help to reduce laborforce and lower labor intensity. It is designed as 90º rotation of unloading feeder for the convenience of transportation of welded product.



MATERIAL CONFIGURATION



APPLICATION

Suitable for welding wire mesh whose width is within 2000mm, length is not restricted.





SAMPLES

.jpg












COMPATITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
