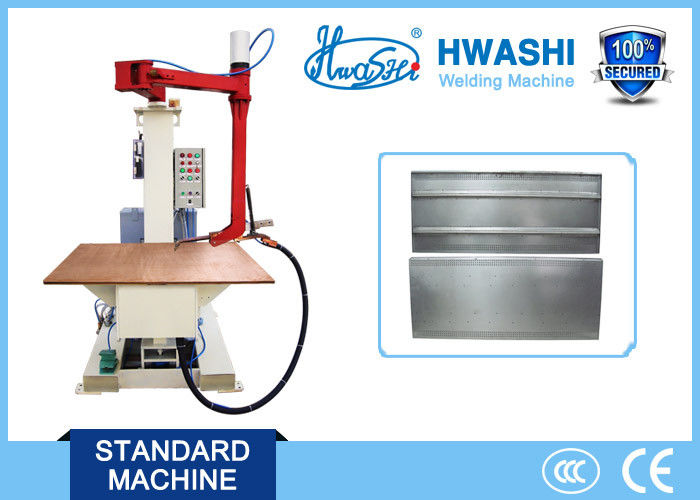

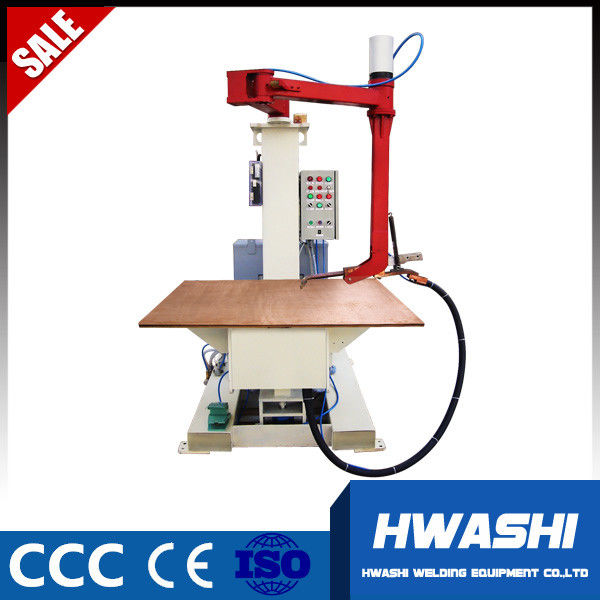

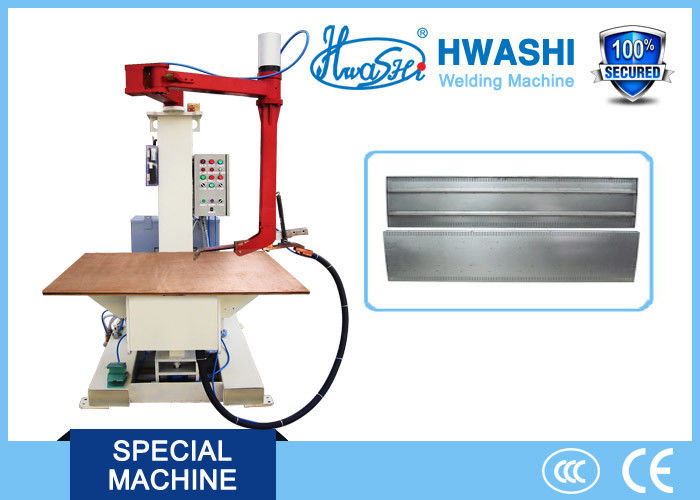

New Condition Sheet Metal Welder Crank Arm Mobile Table Welding Equipment

New Condition Sheet Metal Welder Crank Arm Mobile Table Welding Equipment

    • New Condition Sheet Metal Welder Crank Arm Mobile Table Welding Equipment
    • New Condition Sheet Metal Welder Crank Arm Mobile Table Welding Equipment
    • New Condition Sheet Metal Welder Crank Arm Mobile Table Welding Equipment
  • New Condition Sheet Metal Welder Crank Arm Mobile Table Welding Equipment

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: HWASHI
    Certification: CCC / CE
    Model Number: WL-SMF-75K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: US $1,000 - 50,000 / Set
    Packaging Details: wooden packing
    Delivery Time: 30 days after payment
    Supply Ability: 30 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Warranty: 1 Year Condition: New
    Max.angle Of Crank Moving: 180° Max.range Of Crank Moving: 1000mm
    Effective Size Of Welding Platform: 800mmx800mm Adjusting Rang Of Platform Height: 0-200mm





    DETAILED DESCRIPTION

    1. Crank arm mobile type table welding machine is designed with multi-joint according to the priciple of mechanical arm, which can automatically or manually move in order to ensure the precise presenting position of welding spot.

    2. Ac power,three-phase secondary recitifying power or medium frequency inverter power source are optional to be the welding power source.



    FEATURES

    1. The movement patterns of Crank arm mobile type table welding machine can be chosen as manual or CNC automatic mobile type.

    2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated product.

    3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined goood quality of slide rail, ball screw and automatic detecting system in order to complete the electrode automatic movement.Quick response, high precision of control. Automatic device adopts the X,Y axis of mobile working table, utilizing the PLC to store setting moving program. Simple and convenient setting.

    4. Adopt double side single-point welding method. The lower electrode is designed as complete flate table, which is suitable for welding of flate plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spot.

    APPLICATION

    Welding of metal plates, especially good for welding of computer cases, electric control cabinet, office cabinet and automobile metal plates.





    TECHNICAL PARAMETERS

    Sheet Metal Crank-Arm Mobile Type Table Welding Machine



    S.N Items WL-MF-40K WL-MF-50K WL-MF-75K
    1 Input voltage 380V,3 phases 380V,3 phases 380V,3 phases
    2 Input current 65A 80A 80A
    3 Output voltage 8.5V 10V 12V
    4 Max.Welding Current 15000A 18000A 26000A
    5 Welding Specification 18 kinds 18 kinds 18 kinds
    6 Different Welding Current 6 kinds 6 kinds 6 kinds
    7 Effective size of welding platform 800mmx800mm 800mmx800mm 2000mmx800mm
    8 Max.range of Crank moving 1000mm 1000mm 1200mm
    9 Max.angle of Crank moving 180° 180° 180°
    10 Adjusting rang of platform height 0-200mm 0-200mm 0-200mm



    MATERIAL CONFIGURATION

    1. Adopt silicon controlled from SEMIKRON of West Germany or IXYS of United Stated with high precision and long service life.

    2. Switzerland ABB commutating diode,stable and reliable performance.

    3. It adopts American Motorola integrated circuit and Japan Panasonic PLC,quick reaction and stable performance.

    4. Adopt Japan Panasonic intelligent touch screen PLC control system which is installed with automatic fault alarm system.

    5. Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within±15%.

    6. The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity.

    7. High precision all digital control system effectively resolve the problems of cold joint or loose welding due to the current shunt in projection welding.

    8. Strictly comply with CE security standard to design the machine. Lower the accident rate.





    COMPANY INTRODUCTION





    Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi technology industrial area, huiyang, huizhou city. It is a high-tech enterprise specializing in developing, manuafacturing, and selling of resistance welding machine, automatic welding machine and industrial robot.

    Hwashi has more than 20 technicians who are the experts in R&D work of electrical engineering, mechanical engineering, welding technology,quality inspection,ect. So that Hwashi has the comparehensive R&D capability of developing new product, engineering design and mold design, product inspection and test, on-site technical suppor,ect.
