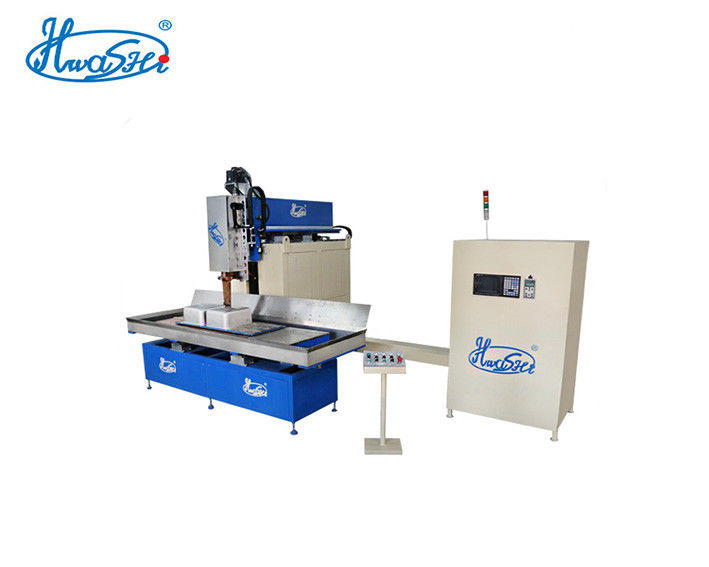

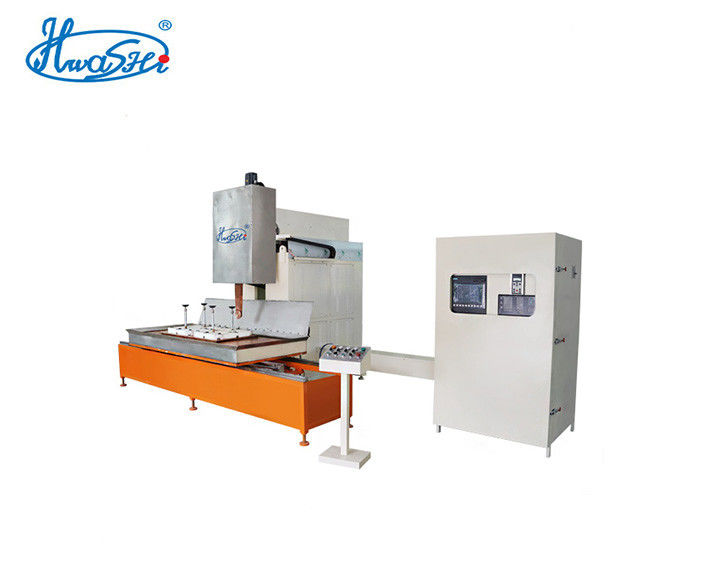

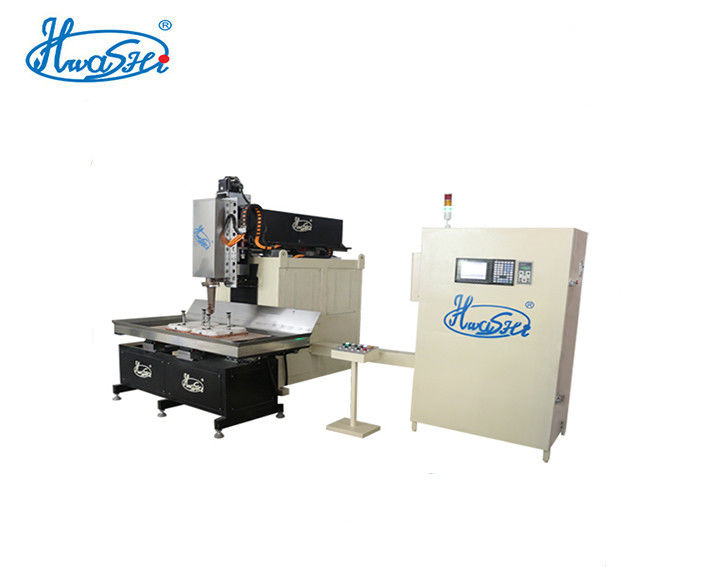

Kitchen Sink Stainless Steel Welding Machine 160KVA Overlap Welding Mode

Kitchen Sink Stainless Steel Welding Machine 160KVA Overlap Welding Mode

    • Kitchen Sink Stainless Steel Welding Machine 160KVA Overlap Welding Mode
    • Kitchen Sink Stainless Steel Welding Machine 160KVA Overlap Welding Mode
    • Kitchen Sink Stainless Steel Welding Machine 160KVA Overlap Welding Mode
    • Kitchen Sink Stainless Steel Welding Machine 160KVA Overlap Welding Mode
    • Kitchen Sink Stainless Steel Welding Machine 160KVA Overlap Welding Mode
    • Kitchen Sink Stainless Steel Welding Machine 160KVA Overlap Welding Mode
  • Kitchen Sink Stainless Steel Welding Machine 160KVA Overlap Welding Mode

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: Hwashi
    Certification: CCC/CE
    Model Number: WL-AMF-160K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: US $20,000-35,000 / Set
    Packaging Details: wooden packing
    Delivery Time: 30-40 days
    Supply Ability: 30 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Welding Diameter: Customers' Requirement Diameter Of Welding Wheel: 100 - 120 Mm
    Forming Time: 1s-10s Adjustable Max.Secondary Floating Voltage: 9.5 V AC
    Welding Mode: Overlap Welding Heat Adjustment Range: 15%-99%





    Kitchen Sink Stainless Steel Welding Machine 160KVA Overlap Welding Mode

    Detailed Description

    CNC Kitchen Sink Automatic Welding Machine

    1. Utilizes the principle of seam welder with circular welding wheel.

    2. The distance between welding spots will be reduced which will make the nugget overlap with each other. When the interlap degree exceed 1/3 of the diameter of the nugget, then a certain degree of air tightness welding will occur.

    3. Medium frequency inverter power source help to save electricity. Adopt the professional automatic control system from MITSUBISHI.

    4. Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.

    5. It could store 15 sets of welding models at most (be able to store 15 sets of welding position and welding current of product).



    Application Area

    Suitable for sink welding within the range of 1600mmx600mm (adjustable according to your needs).



    Technical Parameters

    CNC Kitchen Sink Automatic Welding Machine

    Model WL-AMF-160K CNC Automatic Stailess Steel Double Bowl Sink Welding Machine
    Input Power Single-phase 380V±10% 50 Hz
    Rated Capacity 160KVA
    Rated Duty Cycle 25%
    Maximum Secondary Floating Voltage 9.5VAC
    Max Secondary Short Circuit Current 38000A
    Insulation Grade of Grade F
    Welding Transformer
    Control Program Segment Pressurize, increase by degrees, preheat,quench,welding,quench, temper, hold, stop,welding pulse number
    Time Adjustment Range of Program Segement 0-99 circle, Zero error
    Control Heat Adjustment Range 15%-99%
    Network Voltage Fluctuation Compensation When the rated value of network voltage fluctuates within the range of ±10%, the secondary voltage fluctuates within the range of 3%
    Diameter of Welding Wheel 100-120mm
    Width of welding Wheel 3-5 mm
    Revolving Speed of Welding Wheel 1800-4000mm/min Adjustable
    Moving Range of Axis x ≥1600mm
    Moving Range of Axis Y ≥600mm
    Moving Range of Axis Z ≥350mm
    Rated Bleed Pressue 0.8MPa
    Comsuption of Gas 1 m 3/h
    Pressure of source of Water 0.2Mpa
    Temperature of Source of Water 10-20°C
    Consumption of Cooling Water 1000L/H




    Company Introduction



    Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi Technology industrial area,huiyang, huizhou city. It is a high-tech enterprise specializing in developing, manufacturing, and selling of resistance weldijng machine, automatic welding machine and industrial robot.



    Hwashi has more than 20 technicians who are the experts in R&D work of electrical engineering, mechanical engineering, welding technology, quality inspection,ect. So that Hwashi has the comprehensive R&D capability of developing new product, engineering design and mold design, product inspection and test, on-site technical support,ect.







    FAQ

    Q1:What does your facrory produce?

    A1: We produce and export all kinds of automatic welding machine and robots. We also can design and develop the welding machines according to your requirements.



    Q2:What your standara delivery date?

    A2: Usually 15-20 days. Our company provide just-in-time delivery.



    Q3:Do your factory sale directly?

    A3: Yes. It is our factory sale directly competitive price with high qualityand excellent after-sale service.



    Q4: Do you have CE Certificate?

    A4: Yes. We have CE CCC ISO.



    Q5: Can you export you machines by your factory?

    A5: Yes, we can.



    Q6: Will you send engineer to help installing the welding machine?

    A6: Yes, it need. We can send our engineer to your factory to help installing our welding machine, training the workers and make sure the welding machine running well before leaving.



    Q7: If the machine get damage, what can we do?

    A7: In the guarantee time (1 year), we will send the spare parts to you for free. And provide the technical consultant for anytime. If more terrible, we can send engineers to your factory.
