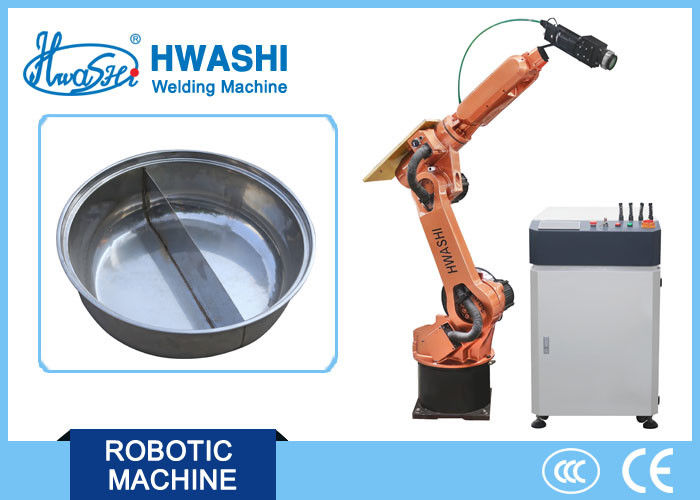

AC Servo Driving Industrial Welding Robots Automatic Welding Equipment 1 Year Warrant

AC Servo Driving Industrial Welding Robots Automatic Welding Equipment 1 Year Warrant

AC Servo Driving Industrial Welding Robots Automatic Welding Equipment 1 Year Warrant

Product Details:

Place of Origin: Guangdong China
Brand Name: HWASHI
Certification: CCC CE ISO
Model Number: HR-R6-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-20000 /set
Packaging Details: wooden packing
Delivery Time: 7-45 days
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Name: Multi Function Automatic Welding Machine/Welding Equipment With Robotic Arm Warrant: 1 Year
DOF: 6 Driving Mode: AC Servo Driving
Effective Load: 10kg Repeat Positioning Accuracy: ±0.05mm
Moving Radius: 1400mm Weight: 180kg
Input Power: 4kVA Input Voltage: Three- Phase 380V
Frequency: 50Hz

2



Robot arm model: HS-RH06, be able to lift 6kg of item. The motion radius is 1437mm which means the maximum reaching distance is 1437mm. Front and back distance could reach 1033mm. Six-axis movement.





Name HS-RH06
Type Standard Type
Structure 6-axis, independent multiple articulation
Wrist Load 6kg
Motion Range Max Reaching Distance 1437mm
Min Reaching Distance 404mm
Front and Back Motion Range 1033mm



Motion

Speed

Arm Rotation 225°/S
Lifting Arm 225°/S
Stretching 225°/S
Wrist Rotation 425°/S
Bending 425°/S
Reverse 629°/S
Repeated Positioning Accuracy Within ±0.08mm
Servo Motor Total Power 3400W
Brake Specs All shaft-driven brake
Installation Normal
Weight About 170kg





Panasonic 350 MIG Welder Technical Parameters

Model: YD-350GR3

Name: Japan Panasonic All Digital CO2/MAG Welder

Description:

Welding Material: Carbon Steel, Stainless Steel

1. All digital welder: digital power+digital wire feeder

2. Double CPU control, high speed high precision data treatment. Increase basic welding performance.

3. Good arc initiation performance

4. Wire feeder is equipped with digital motor with encoder. Achieve high precision wire filling.

5. Welding expert data base.

6. Increase strength of welding thin plate.

7. Suitable for multiple kinds of arc welding.

8. Equipped with stainless steel MIG welding mode.

9. Equipped with welding condition memory and fuzzy control function.

Digital communication and data management function.





Model YD-350
Control Mode IGBT Inverter
Rated Input Voltage Phase No.   AC380V three-phase
Input Power Frequency Hz 50/60
Input Capacity KVA/KW 14.5/14
Output Current A 350
Output Voltage V 31.5
Rated Duty Cycle Rate % 60
No Load Voltage V 70
Output Current Range A 30-430(ohmic load output capacity)A
Output Voltage Range V 12-35.5(ohmic load output capacity)V
Initial Current Range A 30-430(ohmic load output capacity)A
Arc Ending Voltage Range A 12-35.5(ohmic load output capacity)V
Welding Mode   Individualize/centralize
Arc Initiation Mode   High frequency arc initiation
Shell Protection Grade   IP21S
Insulation Grade   H
Cooling Mode   Forced Air Cooled
Suitable Welding Wire Type   Solid wire/ flux-cored wire
Wire Diameter

Solid Wire 0.8/0.9/1.0/1.2mm

Flux-cored wire carbon steel: 1.2 flux-cored wire stainless steel 0.9/1.2mm

Wire Material

MS, MS-FCW( for 1.2mm only)

SUS, SUS-FCW for MIG/MAG (for 1.2mm only)

Storage   9 channels for welding model storage
Waveform control mode   Digital control: -7~7
Time sequence   welding,welding-arc ending,beginning-welding-arc ending,arc spot welding
Protective gas   CO2 welding (CO2:100%) MAG weldiing (Ar: 80%+CO2:20%)
MIG welding(Ar:98%+O2:2%)
Gas checking time S Max 60s
Gas Pre-Filling Time S 0~5 continuous adjustment (0.1s progressive increase)
Gas Delay-End Time S 0~5 continuous adjustment (0.1s progressive increase)
Arc Spot Welding Time S 0~5 continuous adjustment (0.1s progressive increase)
Dimension mm 380×510×600mm
Welight kg 50













Our Services

Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi Technology industrial area, huiyang, huizhou city. It is a high-tech enterprise specializing in developing, manuafacturing, and selling of resistance welding machine, automatic welding machine and industrial robot.
Hwashi company keep up with the trend of intelligentized manufacturing in the world. It has established 50000 square meters of robot developing base in Yichun, Jiangxi and brought in the advanced processing equipments. It has high-quality technical team and workers concerning the mechanical, electronic, welding ,automatic control, mechatronics, and management. Aim at providing high efficient automatic welding solutions to customers and becoming the global leading company for industrial intelligent machinery.
