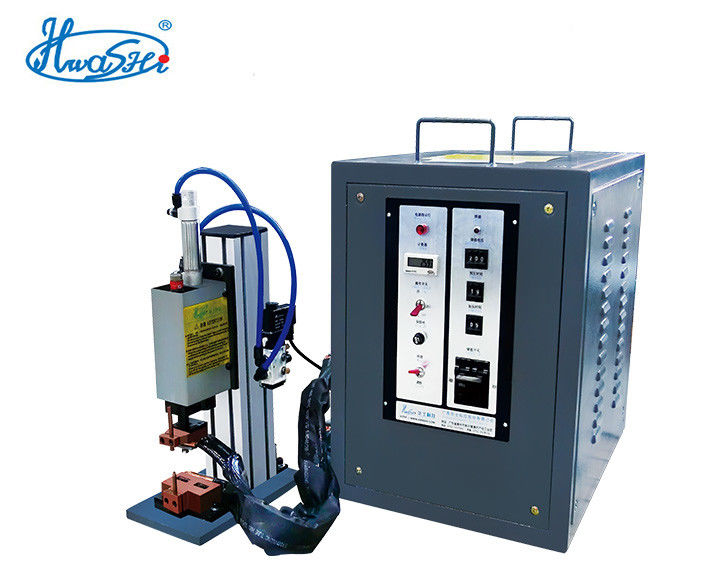

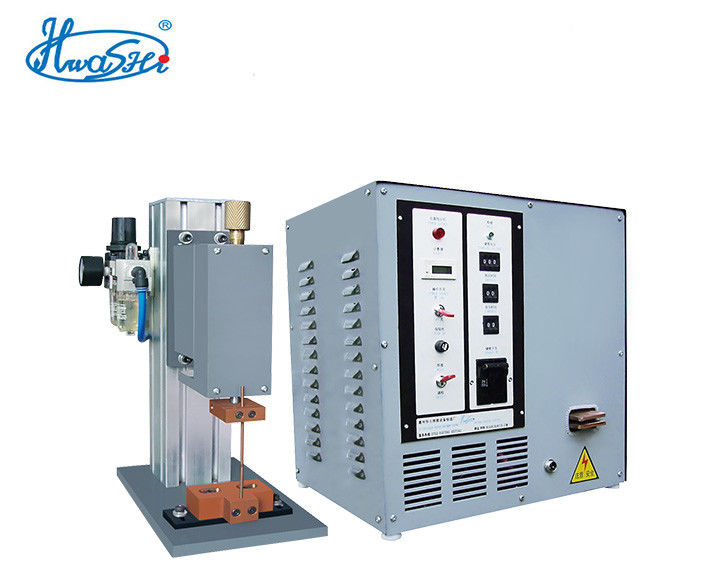

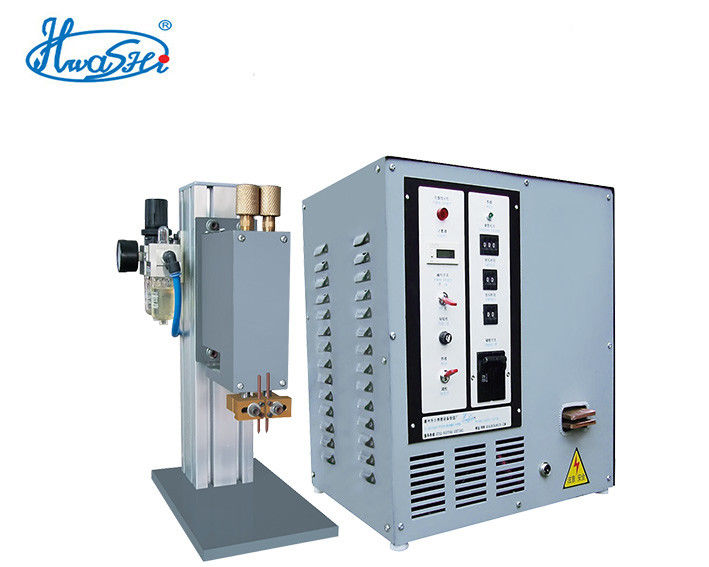

Precision Micro Spot Welder , Capacitor Discharge Projection Welding Machine

Precision Micro Spot Welder , Capacitor Discharge Projection Welding Machine

    • Precision Micro Spot Welder , Capacitor Discharge Projection Welding Machine
    • Precision Micro Spot Welder , Capacitor Discharge Projection Welding Machine
    • Precision Micro Spot Welder , Capacitor Discharge Projection Welding Machine
  • Precision Micro Spot Welder , Capacitor Discharge Projection Welding Machine

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Hwashi
    Certification: CCC
    Model Number: WL-CJ-2K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: US $1,000-2,000 / Set
    Packaging Details: wooden packing
    Delivery Time: 10-15 days after payment
    Supply Ability: 30 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Input Power: 220 V Capacitance: 4500 UF
    Output Heat: 500 J Overall Dimension: 500*400*300 Mm
    Welding Point: Single-point Warranty: 12 Months
    Service Life: 8-10 Years





    Description



    Micro Precision Type Capacitor Spot Welding Machine

    Capacitor discharge spot welder uses capacitor to store energy and to release instantaneous current. In the meantime, it concentrates large current to pass through a small point and then achieves welding effect (welding process passes through thousands of ampere current within 1/1000 second of time). Therefore, it can minimize the situation that the work piece being oxidized or mechanically deformed due to overheat during the process of welding. The output of the capacitor discharge spot welder that we produce is from 100WS to 18000WS. It is especially suitable for welding metals like red copper, bronze, brass, aluminum, silver and stainless steel, etc. Thus, this type of machine is widely applied to various kinds of industrial production and manufacturing.





    Features



    1. Effectively restrain the occurrence of welding spatter;

    2. High working accuracy;

    3. High degree of steel structure;

    4. Low pressure of welding;

    5. Stepless adjustment of electrode pressure range;

    6. Stepless adjustment of electrode pressure stroke;

    7. Flexible collocation of welding head. Indirect single-point, indirect double-point and direct single-point or direct double-point is all available.



    Application Area

    Welding of silver contact of low voltage appliances, welding of mini precise work pieces like crystal valve of chip, etc.



    capacitor type sample





    Technical Parameters

    Micro Precision Type Capacitor Spot Welding Machine

    Model Welding Spot Manner Input Voltage

    Input

    Power

    Capacitance Output Heat Welding Capability Dimensions
      Single / Double V KW μF J mm×Pieces W*D*H (mm)
    WL-CJ-0.5K Direct single-point 220/1 0.5 2000 180 0.4×2 500*400*300
    WL-CJD-0.5K Indirect double-point 220/1 0.5 2000 180 0.4×2 500*400*300
    WL-CJ-1K Direct single-point 220/1 1 3000 380 0.5×2 500*400*300
    WL-CJD-1K Indirect double-point 220/1 1 2000 180 0.5×2 600*450*300
    WL-CJ-2K Direct single-point 220/1 1 4500 500 1.0×2 380*650*450
