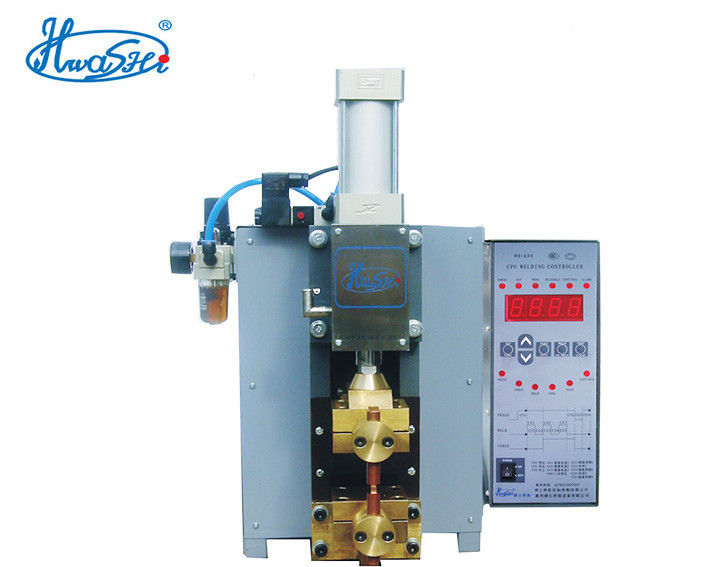

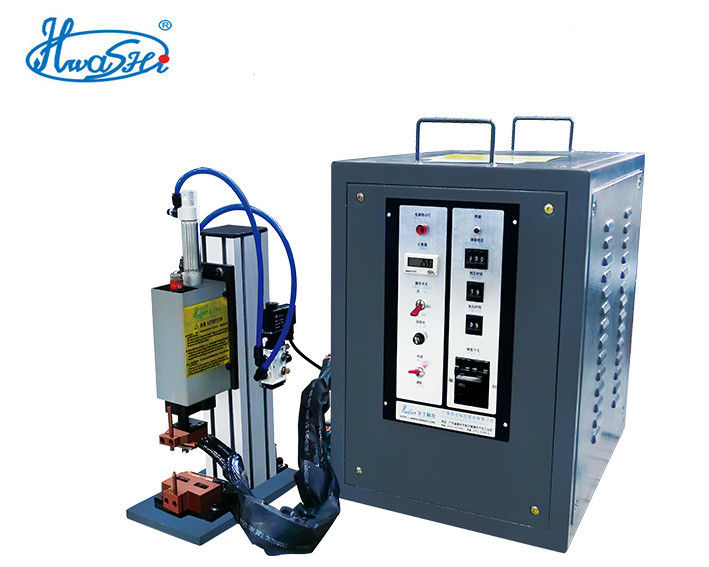

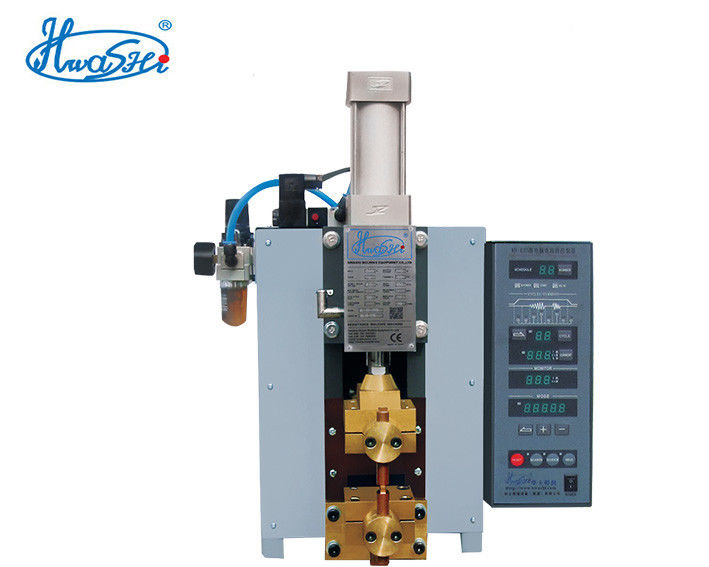

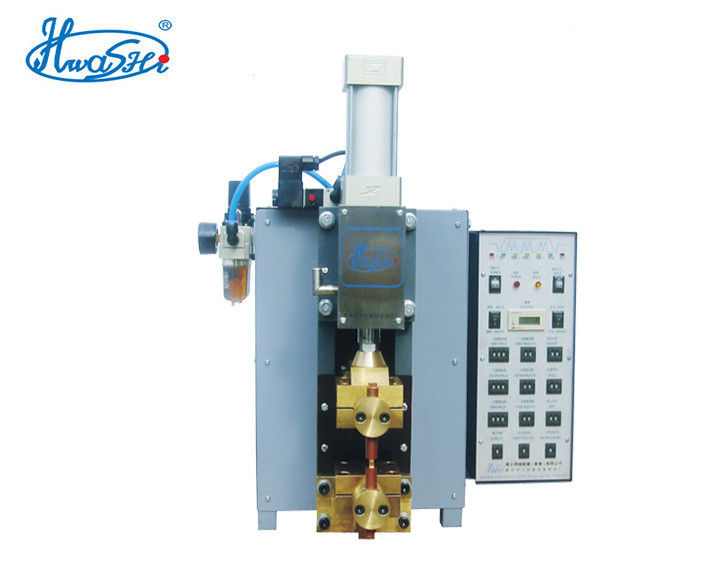

AC Micro Precision Capacitor Discharge Spot Welding Machine Electrode Stroke

AC Micro Precision Capacitor Discharge Spot Welding Machine Electrode Stroke

AC Micro Precision Capacitor Discharge Spot Welding Machine Electrode Stroke
AC Micro Precision Capacitor Discharge Spot Welding Machine Electrode Stroke
AC Micro Precision Capacitor Discharge Spot Welding Machine Electrode Stroke
Product Details:
Place of Origin: Guangdong China
Brand Name: Hwashi
Certification: CCC
Model Number: WL-S-7K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US $5,000-7,000 / Set
Packaging Details: wooden packing
Delivery Time: 10-15 days after payment
Supply Ability: 30 Set/Sets per Month
Contact Now
Detailed Product Description
Max. Welding Thickness: 5 Mm Electrode Stroke: 50 Mm
Electrode Distance: 145-165mm Input Voltage: 220 V
Output Current: 6000 A Power(W): 3.5 KVA
Platform Distance: 250 Mm Close Size: 65-115 Mm
High Light:

capacitive discharge welder

,

capacitive discharge spot welder

AC Micro Precision Capacitor Discharge Spot Welding Machine Electrode Stroke





Detailed Description



AC Precision Welding Machine for microelectronic products

Minisize Precision Spot Welder is the subseries of power frequency AC pulse, adopting 8-bit CPU microcomputer controller and pneumatic operation. It possesses the functions of circuit protector, alarm display, welding preheats, pressure maintaining, and automatic compensation for the fluctuation of power grid and voltage. It is equipped with the advantages of ensuring stable output of energy, high quality of spot welding, high production efficiency, and convenient maintenance.





Features

1. Effectively restrain the occurrence of welding spatter;

2. High working accuracy;

3. High degree of steel structure;

4. Low pressure of welding;

5. Stepless adjustment of electrode pressure range;

6. Stepless adjustment of electrode pressure stroke;

7. Flexible collocation of welding head. Indirect single-point, indirect double-point and direct single-point or direct double-point is all available.



IMG_6449



Apllication Area

There are two types of machines of the series: single-point and double-point which are the ideal machines for welding battery connector, tab, and pole leading body. It is also applicable for welding microelectronic products.



Company Introduction



Guangdong Hwashi Technology Inc was established in 2001. The headquater is located in Hwashi industrial area, huiyuang, huizhou city. It i sa high-tech enterprise specializing in developing, manufacturing, and selling of resistance weliding machine,automatic welding machine and industrial robot.

Hwashi has more than 20 techincians whho are the experts in R&D work of elecrical engineering, mechanical engineering, welding technology,quality inspection,ect. So that Hwashi has the comprehensive R&D capability of developing new product,engineering product an dmold dessign, product inspection and test, on site technical support,ect.



Why us

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.


2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.


3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.


4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.


5. Quick Delivery: Our company provides just-in-time delivery.


6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
