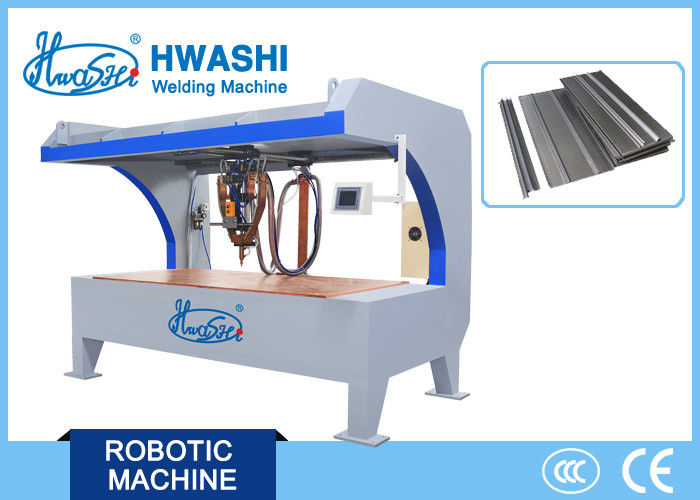

Door Plate Crank Arm Spot Welding Machine Single Head Stainless Steel Welding Material

Door Plate Crank Arm Spot Welding Machine Single Head Stainless Steel Welding Material

metal welding equipment

sheet metal spot welder

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE ISO CCC

Model Number:

WL-AT-15KX2

Contact Us

Request A Quote
Product Details
Product Name:
Door Plate Crank Arm Spot Welding Machine
Welding Head:
Single Head
Welding Material:
Stainless Steel , Galvanized
Working Platform Size:
1000x1500mm(can Be Adjusted)
Machine Controller:
Intelligent Mircomputer Controller
Warranty:
12 Months
Packing:
PLY Wooden Packing
Production Time:
25-35 Days
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
10000-15000
Packaging Details
wooden packing
Delivery Time
25-35 days
Supply Ability
30 sets per a month
Product Description













Description

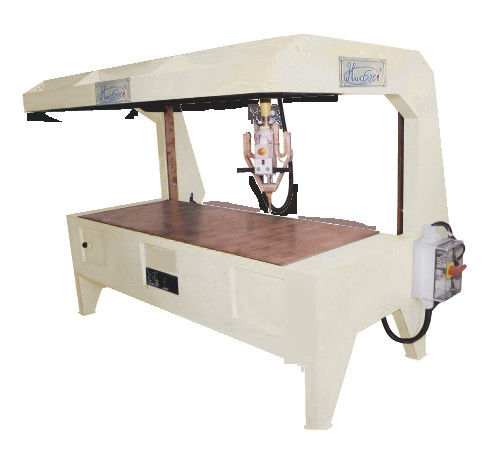

Crank-arm mobile flat table spot welder is designed with multiple mobile arms according to the principle of mechanical arm, which can automatically or manually move in order to ensure the precise preset position of welding spot.

AC pulse, three-phase secondary rectifying or medium frequency inverter power source are optional to be the welding power source.



S.N Items WL-MF-75K
1 Input voltage 380V,3 phases
2 Input current 80A
3 Output voltage 12V
4 Max.Welding Current 26000A
5 Welding Specification 18 kinds
6 Different Welding Current 6 kinds
7 Effective size of welding platform 2000mmx800mm
8 Max.range of Crank moving 1200mm
9 Max.angle of Crank moving 180°
10 Adjusting rang of platform height 0-200mm

Features

1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.



2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.



3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement. Quick response, high precision of control. Automatic device adopts the X, Y axis of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.



4. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.

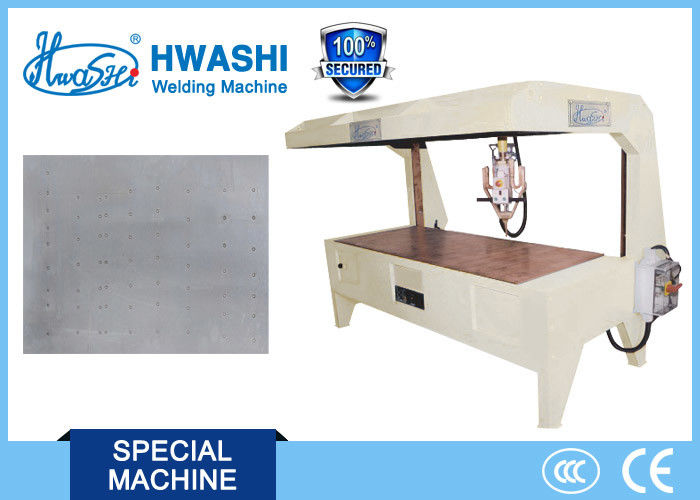

Welding Samples

timg (1).jpgIMG_820666.jpg



Material Configuration

1. Adopt the energy storage quick charge-discharge capacitor from Japan Nippon Chemi-Con (NCC) which is the original MARGON or HITACHI; Fast discharge rate. Stable performance.

2. Adopt SEMIKON, IXYS from West Germany or Silicon controlled of IR from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.

3. Adopt Motorola integrated circuits from United States. Quick reaction. Stable performance.

4. Adopt pneumatic parts from Japan or Taiwan. Reliable performance.

5. All the devices are from imported famous brands. Ideal service life and performance.
We have professional production team, production line, experienced technical experts who engaged in this industry for more than 20 years.
The main products of our company include capacitor discharge spot welder, pneumatic AC pulse spot welder, three-phase secondary rectifying spot welder, medium frequency inverter spot welder, precision micro spot welder and high degree of automatic welding machine.

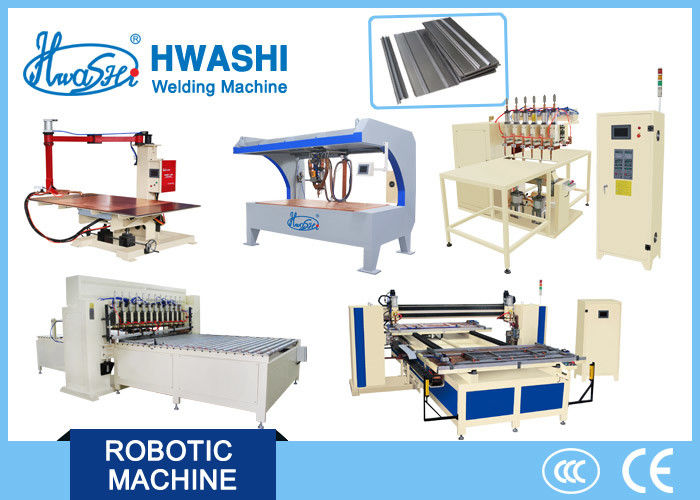

Other Options:
 CNC  02.jpg
WL-SQ-150K 01.jpg
1.Multi tocke matice za zavarivanje Lima otpor stroj/kavez matice zavarivac/metal list krug aparat za varenje
2.CNC New Automatic Double- Heads Metal Welder
3.Best Price and High Quality Sheet Metal Gantry Type Multipoint Welding Machine
