|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||sea worthy wooden package|
|Delivery Time:||7-30 working days after received your payment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 sets per month|
|Product Name:||Car Alusil Oil Tank Straight Rolling Seam Welding Machine||Application:||Welding Alusil / Aluminum Oil Tank|
|Condition:||New||Service Life:||8-10 Years|

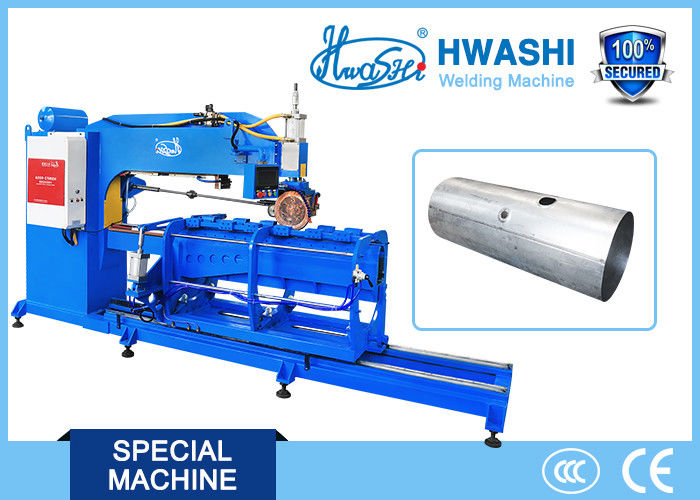

Car Alusil Oil Tank Straight Rolling Seam Welding Machine
The seam (roll) welding special machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. AC pulse current will be adopted. Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile.
1. 3-phase speed regulator controls the welding speed uniformly and without jerks.
2. Longitudinal and horizontal welding possible and is suitable for various jobs and working conditions.
3. Robust structure capable to withstand heat and maintain welding performance.
4. The rotation conductance or silver axis tile provides excellent contact and reduces electrical energy loss.
5. Versatile machine, applications ranging in Household appliances auto, and other metal working industries.
Main Body:Adopt the reinforced special designed steel structure as the main body. Vertical structure, powerful and stable intensity and this machine is equipped with slide way and all-directions water device. The bottom welding electrode is used to fix the cylinder so as to help fixing the mould and welding.
Power Source: It can adopt medium frequency DC resistance welding special transformer energy as welding power supply. Executed standard is GB/15578-2008, magnetic permeability of forced temperature control water cooling silicon steel sheet is above 1200GS, special water cooling and subprime loop, ensuring constant and powerful welding current, providing guarantee for high quality welding spot.
Welding Control System: Adopt the intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Automatic testing and compensation which could guarantee the situation that the machine will be at work only when the current value is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint. The features of quick response and high precision of control may help you obtain high quality of welding spots.
Welding Electrode: It adopts embedded electrode with superior conductive performance red copper on electric conduction position. It adopts high hardness Beryllium copper cobalt for the welding electrode. Welding wheel diameter can be designed according to weld position ranging from 100mm to 300mm.
Rotating Feeder: Adopt high-power electric motor as the driving force. The rotating speed is controlled by the speed cut press box and frequency transducer. Powerful capacity, easy and convenient adjustment.
Electric Conduction System: Adopt the traditional silver tile conduction device. Large transmission friction and contact resistance. Weak conductivity and high maintenance cost. The conduction device adopts the Germany technology. Use the mercury as the conducting medium and special air locking as the connection for transmission shaft and base. Good transmission performance and conductivity. Effectively prevent the tedious maintenance of transmission methods. Welding wheel adopts the alloy copper product from Japan which is of high rigidity and good conductivity.
Cooling Method: Adopt recycle cooling water system which is equipped with cooling water filter, shunt to ensure the temperature of large current heating parts like transformer, silicon controlled, electrode holder and electrode will not rise out of limits after continuous working for 20 hours. The machine is also equipped with temperature control warning device.
Welding Start: Adopt pedal start mode. Convenient operation.
Easy to dismantle, install and maintain the whole machine and electrode. The signs of circuit, gas circuit and water way are clear and explicit. The arrangement of wire is in order and good looking.
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
