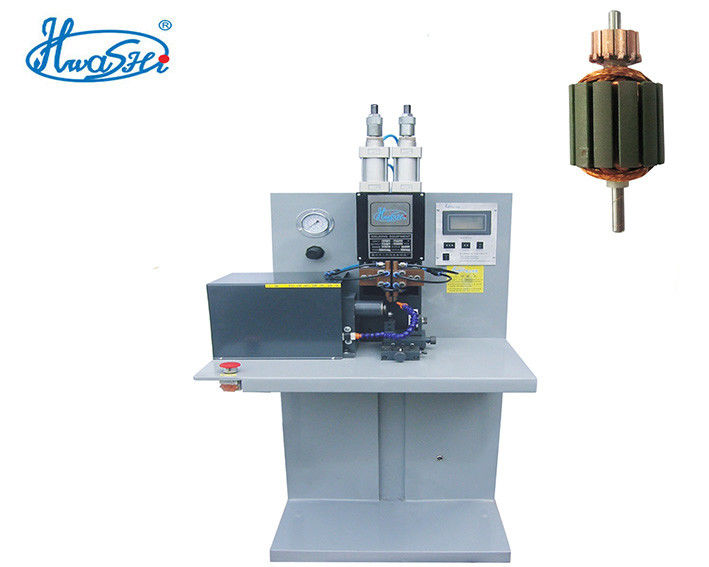

Hwashi Automatic Spot Welding Machine PLC AC/DC Automatic Motor Commutator

Hwashi Automatic Spot Welding Machine PLC AC/DC Automatic Motor Commutator

automatic seam welding machine

wire welding equipment

Place of Origin:

Guangdong, China

Brand Name:

Hwashi

Certification:

CCC

Model Number:

WL-S-25K

Contact Us

Request A Quote
Product Details
Voltage:
380V
Current:
20A
Rated Capacity:
10000 UF
Rated Duty Cycle:
20%
Dimensions:
480*900*1600 Mm
Weight:
800 Kg
Max. Welding Thickness:
8*8 Mm
Electrode Distance:
320-420mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2,000.00 - $30,000.00 / Sets
Packaging Details
wooden case
Delivery Time
40 working days
Payment Terms
T/T
Supply Ability
40 sets per a month
Product Description





Description

1. Commutator welding special machine could adopt the working principle of medium frequency spot welding or AC pulse spot welding. Utilize the pneumatic device to clamp and use stepping motor to conduct stepless totating (be able to set the quantity of welding spots on commutator at will)

2. According to the requirement provided by customer: wire diameter: 0.6-0.75mm, the machine is designed as 18 to 36 times of spot welding. Operator only needs to put the work piece into the mould, then the machine will conduct automatic rotating, cycle working, and continuous welding.



Features

1. Main Engine Control System: Adopt the touch screen as the human-machine interface,choose the PLC as program control system of the whole machine. PLC is incharge of reading data,processing and control signals to ensure the validity of excution orders of the whole machine. Better achieve human-machine conversation.

2.Rotatijng System: Adopt the stepping motor to control with the function of stepless indexing,high precesion,stable speed.

3. Welding System: Adopt the self-developed intelligent microcomputer control system. It will automatically compensate the welding current when the voltage fluctuates to ensure the stable performace of welding.

4. Clamping System: Adopt the mechanical principle and pneumatic direct-acting clamping device wwiyh hig intensity



Tecchnical Parameters

PLC Welding Machine for Commutator



Model Manner Input Voltage Input Power Output Current
WL-C-2K Capacitor Discharge 220V 2KW 18000A
WL-C-2.5K Capacitor Discharge 220V 2.5KW 24000A
WL-S-16K AC pulse 220/ 380V 16KW 10000A
WL-S-25K AC pulse 380V 25KW 12000A
WL-S-35K AC pulse 380V 35KW 16000A
WL-S-35K AC pulse 380V 75KW 34000A







Welding Samples

IMG_0431

Hwashi Automatic Spot Welding Machine PLC AC/DC Automatic Motor Commutator 1
