Industrial Welding Robotic Arm Hwashi HS-R6-08 6 Axis Automatic MIG/TIG AC Servo Driving

Industrial Welding Robotic Arm Hwashi HS-R6-08 6 Axis Automatic MIG/TIG AC Servo Driving

    • Industrial Welding Robotic Arm Hwashi HS-R6-08 6 Axis Automatic MIG/TIG AC Servo Driving
    • Industrial Welding Robotic Arm Hwashi HS-R6-08 6 Axis Automatic MIG/TIG AC Servo Driving
    • Industrial Welding Robotic Arm Hwashi HS-R6-08 6 Axis Automatic MIG/TIG AC Servo Driving
  • Industrial Welding Robotic Arm Hwashi HS-R6-08 6 Axis Automatic MIG/TIG AC Servo Driving

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: HWASHI
    Certification: CCC, CE
    Model Number: HS-R6-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: US $10000 - 15000 / Set
    Packaging Details: PLY wooden
    Delivery Time: 40 working days
    Payment Terms: T/T
    Supply Ability: 40 sets per a month
    Contact Now
    Detailed Product Description
    Driving Mode: AC Servo Driving Repeat Positioning Accuracy: ±0.05mm
    Motion Range: ±360 Degree Max Speed: 270 ° / S
    Moving Radius: 893 Mm Certification: CCC,CE
    Condition: New

    Welcome to Guangdong Hwashi Technology Inc. We are professional manufacturing all kinds of welding machine for years. We are the leading brand of welding industries. All kinds of welidng machine could be customized according to your request.

    Product Description



    precise aluminum plate welding machine.jpg



    Detail Description

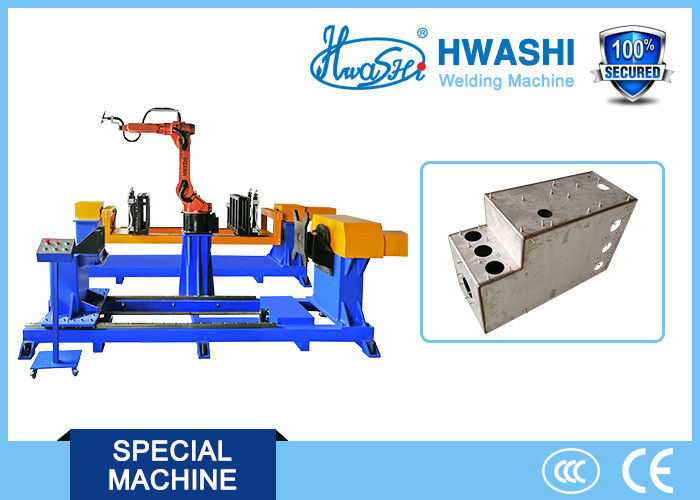

    According to the requirements of the product, we design the robot that adopts six-axis robot system equipped with arc welder to complete the welding automatically. The robot uses cylinder or clamp and utilize the leverage principle to fix product. This method can meet the requirement for automatic welding and can guarantee that the robot could weld each part of the product. According to the production efficiency requirement, we design two sets of fixtures. One is used for loading the work piece, the other is used for welding.

    robot welding process

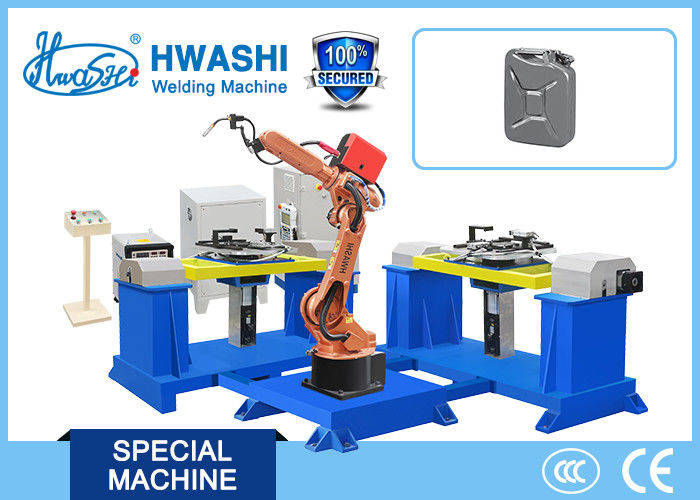

    While the station 1 is being welded, station 2 is being loaded and fixed the work piece synchronously. Two stations work alternately.
    This machine can achieve automatic welding with manually loading material. It can also improve the welding quality and welding efficiency.
    What’s more, it can reduce the production cost. The problem of unstable quality and low production efficiency caused by pure manual operation has been solved.



    TECHNICAL PARAMETERS

    8kg machine moving range 8kg machine data

    CONTROLLER SYSTEM

    The robot can optimize the speed according to the actual load so as to shorten the operation cycle time.


    1. The robot can detect self moving and loading condition according to the built-in service information system so as to provide optimized service requirement. Longer continuous working period.


    2. Embedded controller can control 6-8 axis. The operating rate could reach 500MIPS with high speed motion control fieldbus. Be able to achieve continuous trajectory teaching and on-line teaching. Equipped with remote control and diagnostic function.


    3. Overall consideration of the external force such as gravity, centrifugal force, etc, in the process of robot movement, use adaptive identification control technology to improve dynamic performance of the robot.

    control boxrobot controller



    Optional Positioner

    positing



    Locating Fixture: (Used for locating the work piece onto the automatic rotate table)

    .png

    Application

    APPLICATION

    Applied to loading and unloading, welding, stacking transportation, gelatinization and spraying.

    application

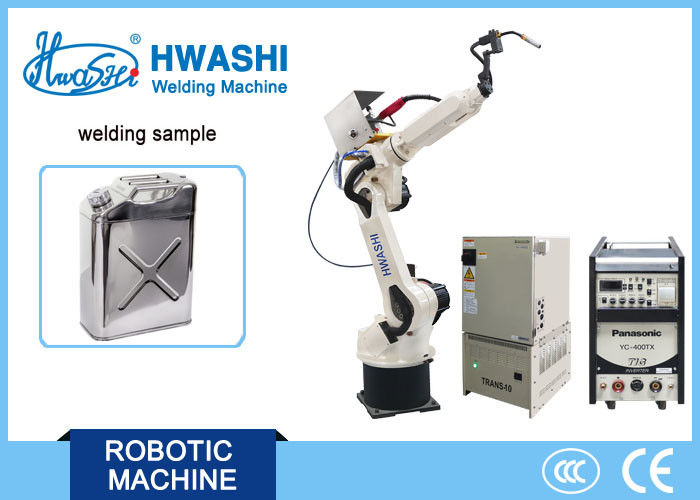

    WELDING SAMPLES

    welding samples

    If you are interested in our machine, please do not heasitate to contact me.
