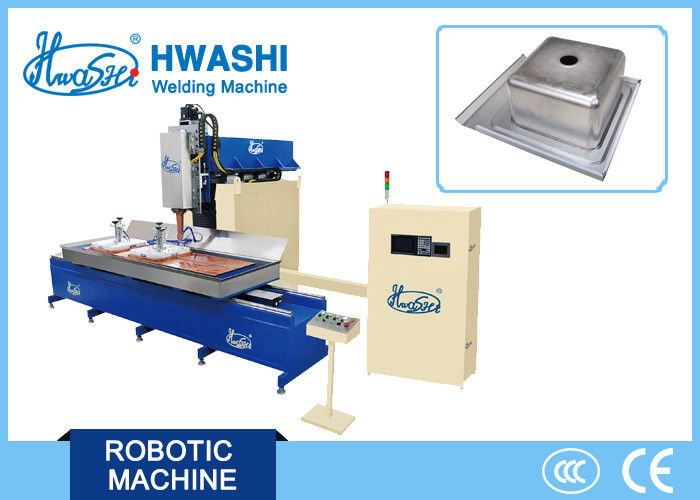

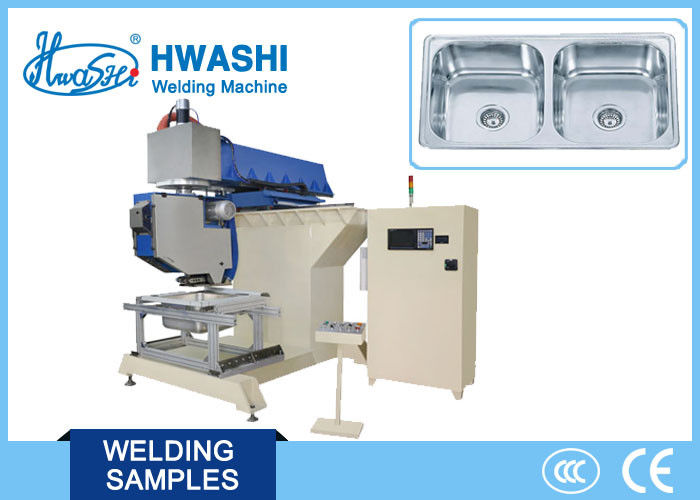

CNC Automatic Welding Machine Seam / Roll Welding Stainless Steel Kitchen Sink Applied

CNC Automatic Welding Machine Seam / Roll Welding Stainless Steel Kitchen Sink Applied

    • CNC Automatic Welding Machine Seam / Roll Welding Stainless Steel Kitchen Sink Applied
    • CNC Automatic Welding Machine Seam / Roll Welding Stainless Steel Kitchen Sink Applied
    • CNC Automatic Welding Machine Seam / Roll Welding Stainless Steel Kitchen Sink Applied
  • CNC Automatic Welding Machine Seam / Roll Welding Stainless Steel Kitchen Sink Applied

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: HWASHI
    Certification: CE, CCC
    Model Number: WL-AT-PM1200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: US $10,000-30,000 / Set
    Packaging Details: wooden packing
    Delivery Time: 45 days
    Supply Ability: 50 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Name: CNC Automatic Grinding / Polishing Machine For Stainless Steel Kitchen Sink Grinding Wheel Diameter: 50mm
    Abrasive Belt Width: 50mm Abrasive Belt Rotating Speed: 1400-2800mm/min (adjustable)
    X Axle Moving Range: ≥1220mm Y Axle Moving Range: ≥620mm
    Z Axle Moving Range: ≥250mm A Axle Moving Range: 360 Angle
    Rated Air Pressure: 0.8MPa Gas Consumption: 1m3/h

    HWASHI TECHNOLOGY Inc.


    Jonny Zhang
    Whatsapp/Wechat: +86 139 2435 2162

    Skype: szcns_jonny


    Website: www.hwashi.com & http://www.spot-weldingmachine.com/



    Welcome your Inquiry!







    CNC Automatic Welding Machine Seam / Roll Welding Stainless Steel Kitchen Sink Applied





    Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.















    Selling more than 100 Types of welding machine . We could also customize for you.





    Dear Sir / Madam ,

    Thank you for your visit. This is Joy from HWASHI WELDING . So happy to know you. You have a good taste of business . Our HWASHI is famous brand in China for 20 years.



    For recommending suitable model machine to you, may I know what kind of product you want to weld ? And pls tell

    me the specifications of them, such as thickness, material , and dimension.Then more pictures and video will be sent.



    Any question regarding our machine ,pls feel free to contact me. My Skype: Joy Hong



    Best regards,

    Joy




    1 DETAILED DESCRIPTION



    HWASHI Italy Design High Efficiency Automatic Stainless Steel Sink Edge Grinding Machine



    This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment. It is designed to use Mitsubishi professional automatic control system. You only need to input the coordinate data of the product and start the machine, the abrasive belt of the machine will conduct grinding and polishing automatically within the track of preset program. The worker only needs to put and take out the sink.



    The product will be fixed on the locating mould. The servo motor will drive the X and Y axle to run within the preset data of program. The machine could store 15 types of grinding models. The grinding wheel will move along with X direction and the max moving range is 1220mm while the max moving range of Y direction is 620mm. The Z axle can conduct moving up and down within the range of max 250mm while the A axle can conduct 360ºrotating under the control of servo motor. This machine is suitable for different directions of product.





    2 FEATURES OF SINK WELDING MACHINE

    HWASHI Italy Design High Efficiency Automatic Stainless Steel Sink Edge Grinding Machine

    • Fully automatic.
    • Utilizes the principle of seam welder with round welding wheel.
    • Save labor cost: only one worker required put the sink into the platform and then take it away when finishing the grinding process
    • Medium frequency inverter power source which is electricity saving.
    • Enhanced function: memorize 16 sets of welding way . If you need more , we could design for you.
    • Adopt the professional automatic control system from Mitsubishi
    • Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.





    3 APPLIABLT AREA OF SINK WELDING MACHINE

    HWASHI Italy Design High Efficiency Automatic Stainless Steel Sink Edge Grinding Machine



    Suitable for sink welding within the range of 1600mmx600mm (adjustable according to your needs)





    4 TECHNICAL PARAMETERS OF SINK WELDING MACHINE

    HWASHI Italy Design High Efficiency Automatic Stainless Steel Sink Edge Grinding Machine



    Model WL-AT-PM1200
    Input Power Three-phase 380V±10% 50Hz
    Rated Capacity 10KVA
    Grinding Wheel Diameter 50mm
    Abrasive Belt Width 50mm
    Abrasive Belt Rotating Speed 1400-2800mm/min (adjustable)
    X Axle Moving Range ≥1220mm
    Y Axle Moving Range ≥620mm
    Z Axle Moving Range ≥250mm
    A Axle Moving Range 360º
    Rated Air Pressure 0.8MPa
    Gas Consumption 1m3/h

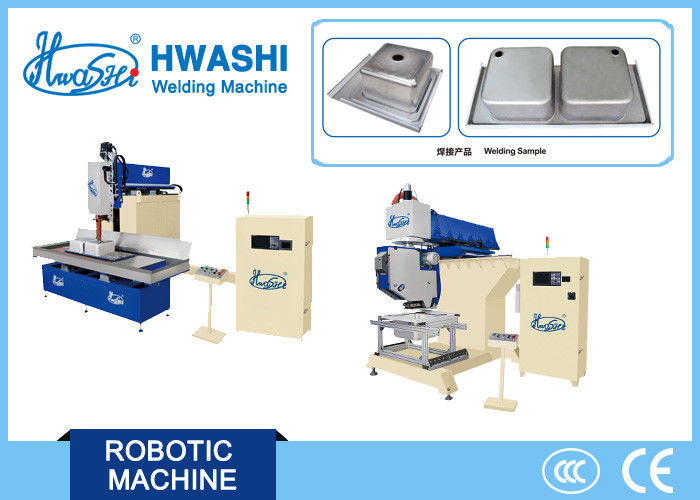

    5 DETAILED PICTURES



    CNC Automatic Welding Machine Seam / Roll Welding Stainless Steel Kitchen Sink AppliedCNC Automatic Welding Machine Seam / Roll Welding Stainless Steel Kitchen Sink Applied





    CNC Automatic Welding Machine Seam / Roll Welding Stainless Steel Kitchen Sink Applied



    We have professional production team, production line, experienced technical experts who engaged in this industry for more than 20 years.
    The main products of our company include capacitor discharge spot welder, pneumatic AC pulse spot welder, three-phase secondary rectifying spot welder, medium frequency inverter spot welder, precision micro spot welder and high degree of automatic welding machine.

    7 WHY US ?





    1. HWASHI is the leading brand in resistance welding industry in China for 20 years;Factory direct sale, competitive price.
    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
    5. Quick Delivery: Our company provides just-in-time delivery.
    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







    CNC Automatic Welding Machine Seam / Roll Welding Stainless Steel Kitchen Sink Applied
