|Place of Origin:||Guangdong, China|
|Minimum Order Quantity:||1 set|
|Price:||US $20,000-35,000 / Set|
|Packaging Details:||wooden packing|
|Delivery Time:||30-40 days|
|Supply Ability:||30 Set/Sets per Month|
|Welding Diameter:||Customers' Requirement||Diameter Of Welding Wheel:||100 - 120 Mm|
|Forming Time:||1s-10s Adjustable||Max.Secondary Floating Voltage:||9.5 V AC|
|Welding Mode:||Overlap Welding||Heat Adjustment Range:||15%-99%|
stainless steel welding equipment,
stainless steel spot welding
HWASHI TECHNOLOGY Inc.
Website: www.hwashi.com & http://www.spot-weldingmachine.com/
Welcome your Inquiry!

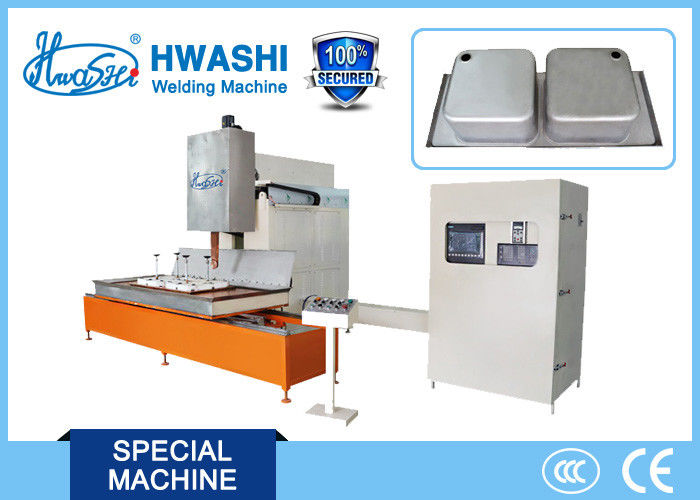

CNC Kitchen Sink Automatic Welding Machine
1. Utilizes the principle of seam welder with circular welding wheel.
2. The distance between welding spots will be reduced which will make the nugget overlap with each other. When the interlap degree exceed 1/3 of the diameter of the nugget, then a certain degree of air tightness welding will occur.
3. Medium frequency inverter power source help to save electricity. Adopt the professional automatic control system from MITSUBISHI.
4. Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.
5. It could store 15 sets of welding models at most (be able to store 15 sets of welding position and welding current of product).
Suitable for sink welding within the range of 1600mmx600mm (adjustable according to your needs).
CNC Kitchen Sink Automatic Welding Machine
|Model||WL-AMF-160K CNC Automatic Stailess Steel Double Bowl Sink Welding Machine|
|Input Power||Single-phase 380V±10% 50 Hz|
|Rated Duty Cycle||25%|
|Maximum Secondary Floating Voltage||9.5VAC|
|Max Secondary Short Circuit Current||38000A|
|Insulation Grade of||Grade F|
|Control Program Segment||Pressurize, increase by degrees, preheat,quench,welding,quench, temper, hold, stop,welding pulse number|
|Time Adjustment Range of Program Segement||0-99 circle, Zero error|
|Control Heat Adjustment Range||15%-99%|
|Network Voltage Fluctuation Compensation||When the rated value of network voltage fluctuates within the range of ±10%, the secondary voltage fluctuates within the range of 3%|
|Diameter of Welding Wheel||100-120mm|
|Width of welding Wheel||3-5 mm|
|Revolving Speed of Welding Wheel||1800-4000mm/min Adjustable|
|Moving Range of Axis x||≥1600mm|
|Moving Range of Axis Y||≥600mm|
|Moving Range of Axis Z||≥350mm|
|Rated Bleed Pressue||0.8MPa|
|Comsuption of Gas||1 m 3/h|
|Pressure of source of Water||0.2Mpa|
|Temperature of Source of Water||10-20°C|
|Consumption of Cooling Water||1000L/H
Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi Technology industrial area,huiyang, huizhou city. It is a high-tech enterprise specializing in developing, manufacturing, and selling of resistance weldijng machine, automatic welding machine and industrial robot.
Hwashi has more than 20 technicians who are the experts in R&D work of electrical engineering, mechanical engineering, welding technology, quality inspection,ect. So that Hwashi has the comprehensive R&D capability of developing new product, engineering design and mold design, product inspection and test, on-site technical support,ect.
Q1:What does your facrory produce?
A1: We produce and export all kinds of automatic welding machine and robots. We also can design and develop the welding machines according to your requirements.
Q2:What your standara delivery date?
A2: Usually 15-20 days. Our company provide just-in-time delivery.
Q3:Do your factory sale directly?
A3: Yes. It is our factory sale directly competitive price with high qualityand excellent after-sale service.
Q4: Do you have CE Certificate?
A4: Yes. We have CE CCC ISO.
Q5: Can you export you machines by your factory?
A5: Yes, we can.
Q6: Will you send engineer to help installing the welding machine?
A6: Yes, it need. We can send our engineer to your factory to help installing our welding machine, training the workers and make sure the welding machine running well before leaving.
Q7: If the machine get damage, what can we do?
A7: In the guarantee time (1 year), we will send the spare parts to you for free. And provide the technical consultant for anytime. If more terrible, we can send engineers to your factory.
