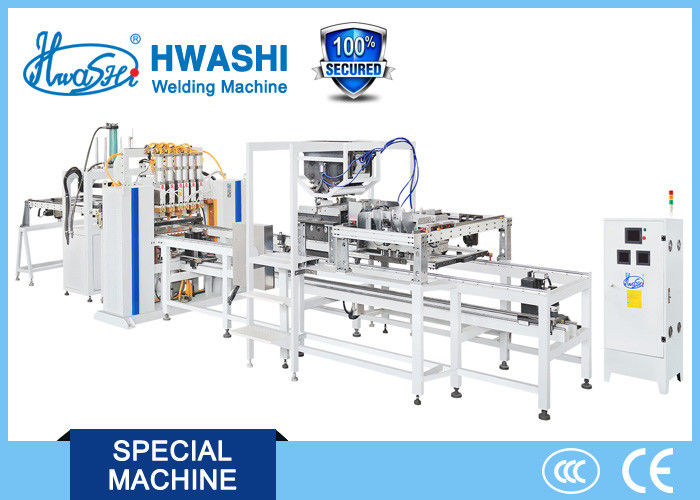

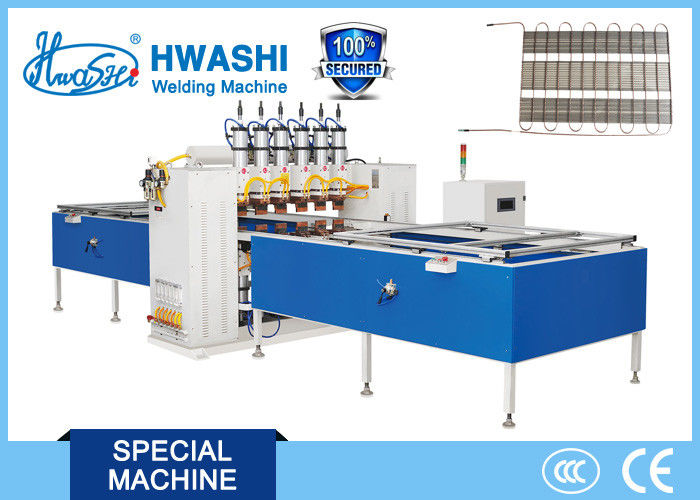

Freezer / Condenser Mesh DC Pneumatic Spot Row Welding Machine 12 Months Warranty

Freezer / Condenser Mesh DC Pneumatic Spot Row Welding Machine 12 Months Warranty

wire welders

wire welding equipment

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-100Kx4

Contact Us

Request A Quote
Product Details
Product Name:
Metro Grill Rack Automatic Making , Freezer Condenser Mesh Pneumatic DC Spot Welding Machine
Application:
Welding Of Shopping Carts Mesh
Size:
2800x2380x1850mm
Weight:
2500kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

HWASHI TECHNOLOGY Inc.



Website: www.hwashi.com

Thank you & Welcome your Inquiry!





Freezer Condenser Mesh DC Pneumatic Spot Welding Machine Metro Grill Rack Automatic Making

Metro Grill Rack Automatic Making , Freezer Condenser Mesh Pneumatic DC Spot Welding Machine





DESCRIPTION



Multiple gun welders can be furnished in many forms. Their design may vary according to the application to be welded and the rate of production required. Most multiple gun welders are dedicated to a specific application, but some may be capable of welding more than one size of a similar configuration workpiece.



It is usually not practical to design a multi-gun welder as a “sponge” to accommodate many applications.






APPLICATION



Continuous welding wire mesh whose width is within 2000mm, length is not restricted.





WIRE MESH WELDING MACHINE OPTIONS



TYPE Picture Basic information advantage





Application

Manual Row welding machine HwashiAutomatic Wire Mesh Spot  Welding Machine with Wire Loading Lopper

1. Manual wire loading and welding machine;

2. The number of electrode could be customized according to your requirement.

1. Low in price

2. Suitable for welding small wire mesh

3. Low efficiency

Suitable for 100mm-500mm wire mesh
Single Row Welding+X,Y axis Automatic Feeder HwashiAutomatic Wire Mesh Spot  Welding Machine with Wire Loading Lopper

1. Single Welding Electrode;

2. Manual wire loading; 3. X, Y axis automatic feeder and automatic welding

1. Low cost 2. Simple structure and easy assembly

3. Change fixtures for welding different sizes of wire mesh

Suitable for wire mesh within 1000mm
Multiple-Head Spot/Row Welding Machine with one set of welding power HwashiAutomatic Wire Mesh Spot  Welding Machine with Wire Loading Lopper

1. Multiple welding electrodes;

2. Manual wire loading; 3. Automatic feeder and automatic welding 4. Single power supply system

5. Only one electrode can work at one time and take turns.

1.Single side Double layer feeder or single layer both side feeder , worker can do continuous loading of wires to keep the machine cycle working;

2. Low cost

Suitable for wire mesh whose width is within 1000mm, length is not restricted.
Multiple-Head Spot/Row Welding Machine with two set of welding power HwashiAutomatic Wire Mesh Spot  Welding Machine with Wire Loading Lopper

1Multiple welding electrodes.

2. Manual wire loading; 3. Automatic feeder and automatic welding

4. Double power supply system

5. Two electrodes can work at one time and take turns.

1. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working.

2. High efficiency 3. High cost

Suitable for wire mesh whose width is within 2000mm, length is not restricted.
Multiple-head Spot/Row welding machine with hopper and two set of welding power HwashiAutomatic Wire Mesh Spot  Welding Machine with Wire Loading Lopper

1. Multiple welding electrodes;

2. Automatic wire loading system;

3. Automatic feeder and automatic welding

4. Double power supply system

5. Two electrodes can work at one time and take turns.

1. Save labor force

2. High automation level 3. Cycle working 4.High efficiency 5.High cost

Suitable for wire mesh whose vertical length is within 1200mm, while horizontal length is within 2000mm.



All of the machine can do further customized design as per your request.







COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
