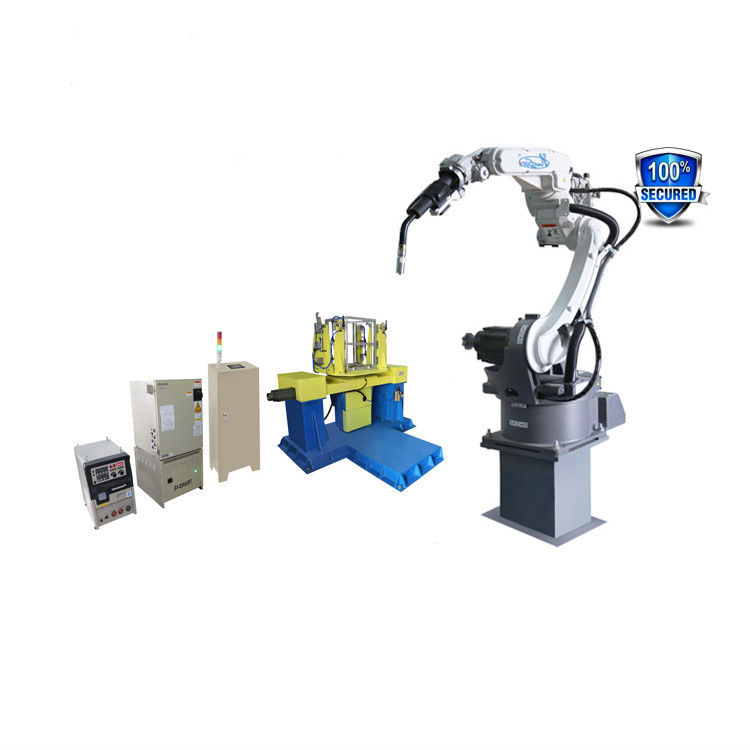

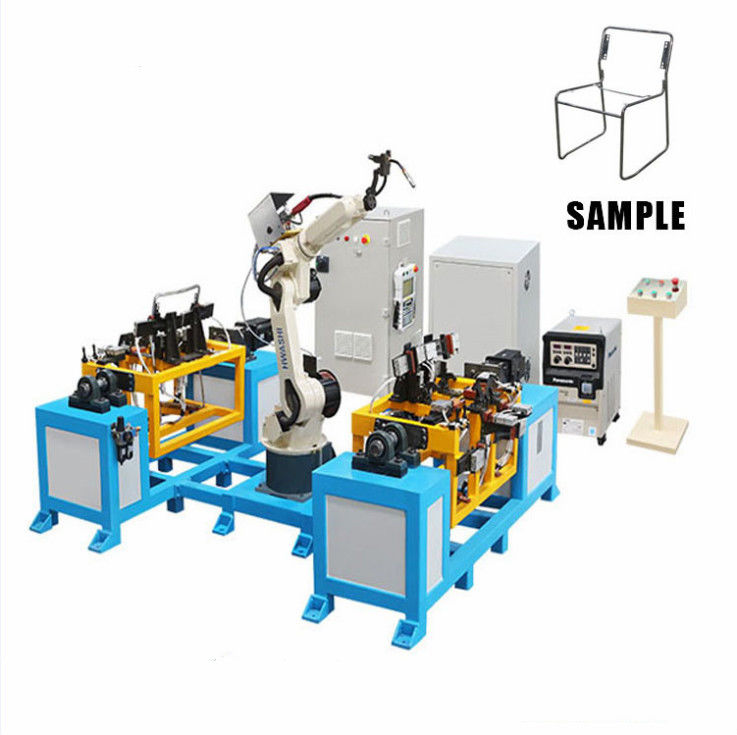

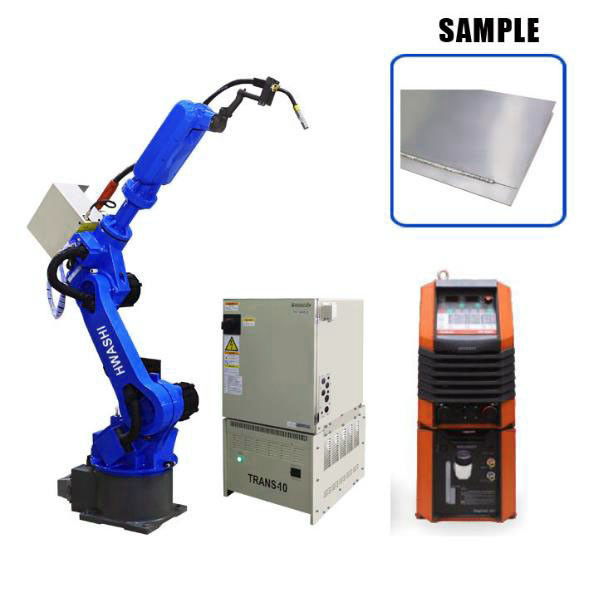

HWASHI 6 Axis 1.4m Robot Arm Furniture Chair Frame MIG Welding Robot

HWASHI 6 Axis 1.4m Robot Arm Furniture Chair Frame MIG Welding Robot

robotic spot welding machine

automatic welding robot

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE, CCC

Model Number:

HS-R6-08

Contact Us

Request A Quote
Product Details
After-sales Service Provided:
Video Technical Support
Material:
Steel
Weight:
About 170kg
Usage:
Welding And Transportation,Welding Machine,Soldering And Welding,Robot Welding Support
Voltage:
220/380V
Condition:
New
Warranty:
1 Year
Payload:
6 Kg,8KG
Number Of Axes:
6
Payment & Shipping Terms
Minimum Order Quantity
1
Price
10000usd
Packaging Details
wooden package
Supply Ability
50 sets per month
Product Description

Thanks for your visiting to Hwashi! You can contact with me for fast response by below channel



Email: sales@hwashi.com

Tel/Whatsapp: +86 186 8038 9568

Wechat: willsteed

Skype: horiswin



Product Application

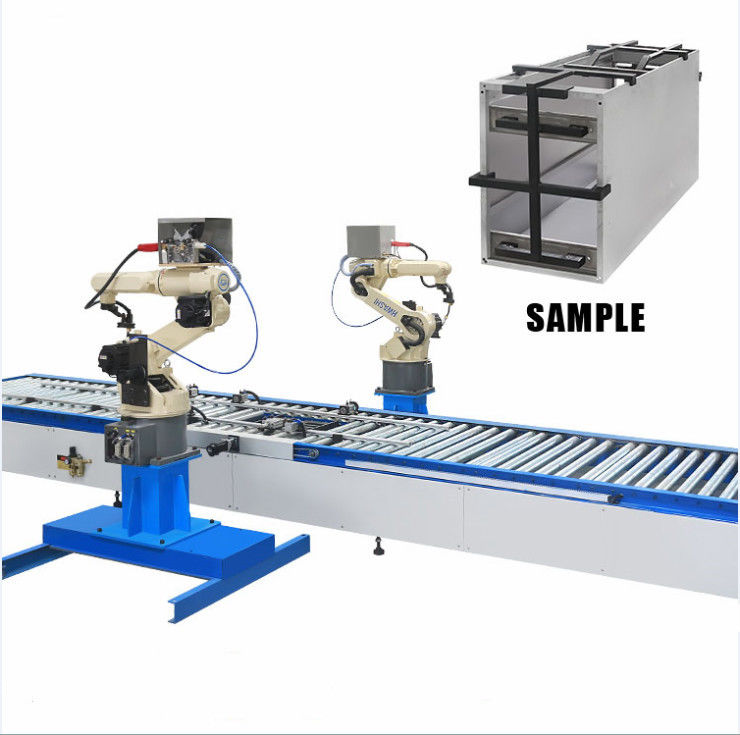

HWASHI HS-R6-08 6 Axis Automatic Industrial TIG Welding Robot for Stainless Steel Box 1. Welding system: Panasonic TIG welding machine with automatic wire feeding system. Stable performance. 2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm. 3. Welding gun system: famous brand TBI welding gun. 4. Welding gun cleaning and wire cutting system: TBI brand.

5. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

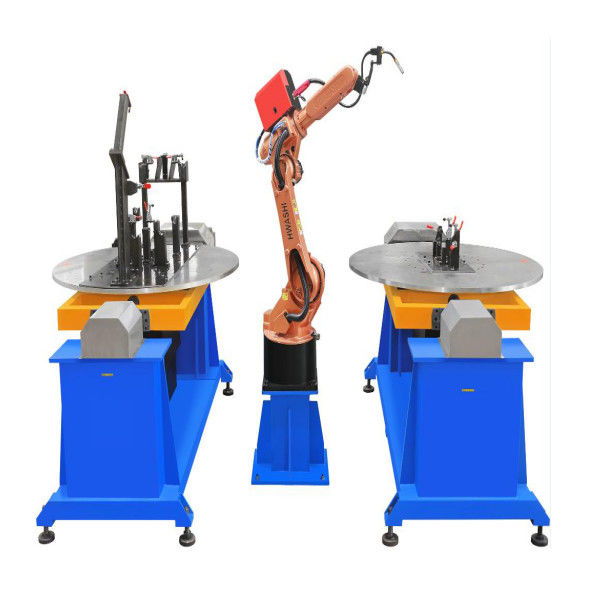

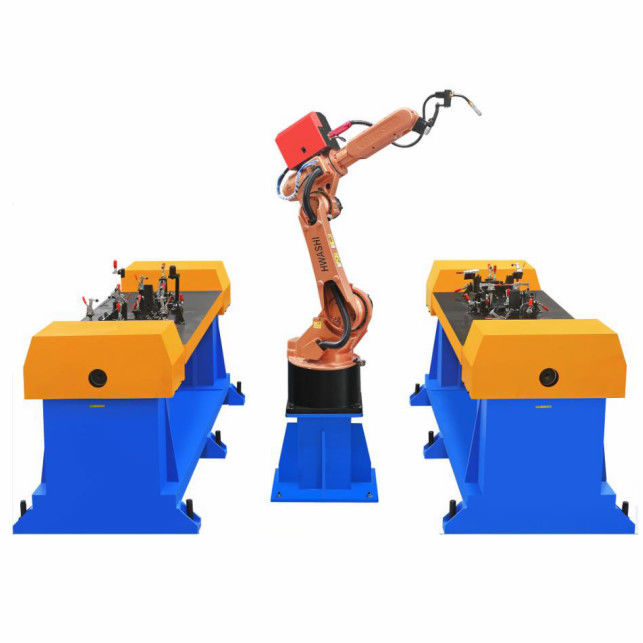

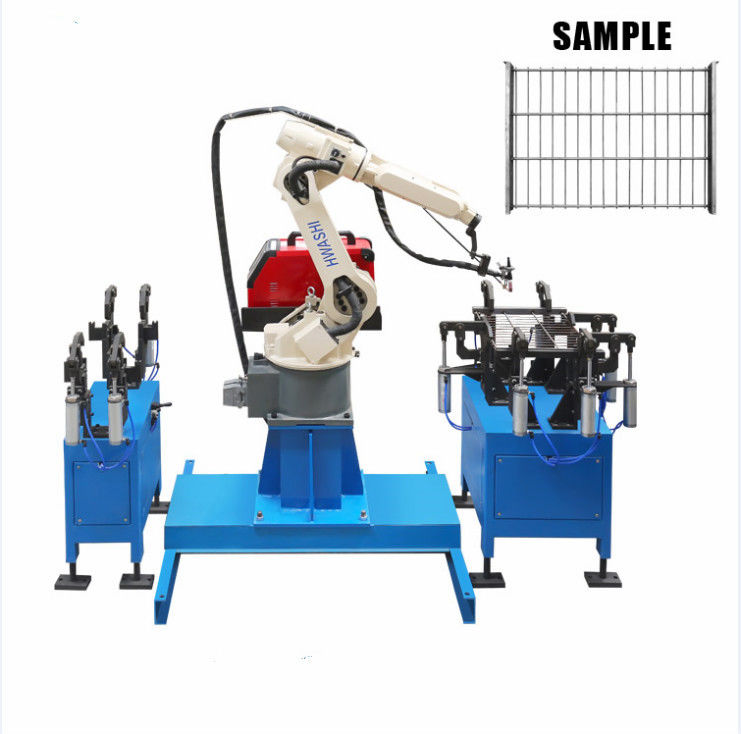

6. Startcontrol panel system: Manual/Automatic button platform with portable structure. Convenient for operation. 7. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency. 8. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.



Technical datas:



Vertical Reach
To mounting face
885mm
To wrist center
820mm
Axis Rotation
J1
±175°
J2
+64°/-142°
J3
+165°/-73°
J4
±178°
J5
±132°
J6
±720°
Max Horizontal Reach
1722mm
Allowed torque
J4
42 N*m
J5
42 N*m
J6
20 N*m
Allowed Inertia
J4
1.18 kg . m
J5
1.18 kg . m
J6
0.5 kg . m
Environment
Temperature
0-45℃
Humidity
20~80% RH(no condensation)
Other
Keep away from:
Flammable/corrosive gases
Flammable/corrosive Solvents
Water or oil and powder dust
Sources of electric noise
Weight
200-250 kg
Safety Regulations Arm
IP65

HWASHI 6 Axis 1.4m Robot Arm Furniture Chair Frame MIG Welding Robot 0


HWASHI 6 Axis 1.4m Robot Arm Furniture Chair Frame MIG Welding Robot 1HWASHI 6 Axis 1.4m Robot Arm Furniture Chair Frame MIG Welding Robot 2HWASHI 6 Axis 1.4m Robot Arm Furniture Chair Frame MIG Welding Robot 3HWASHI 6 Axis 1.4m Robot Arm Furniture Chair Frame MIG Welding Robot 4HWASHI 6 Axis 1.4m Robot Arm Furniture Chair Frame MIG Welding Robot 5

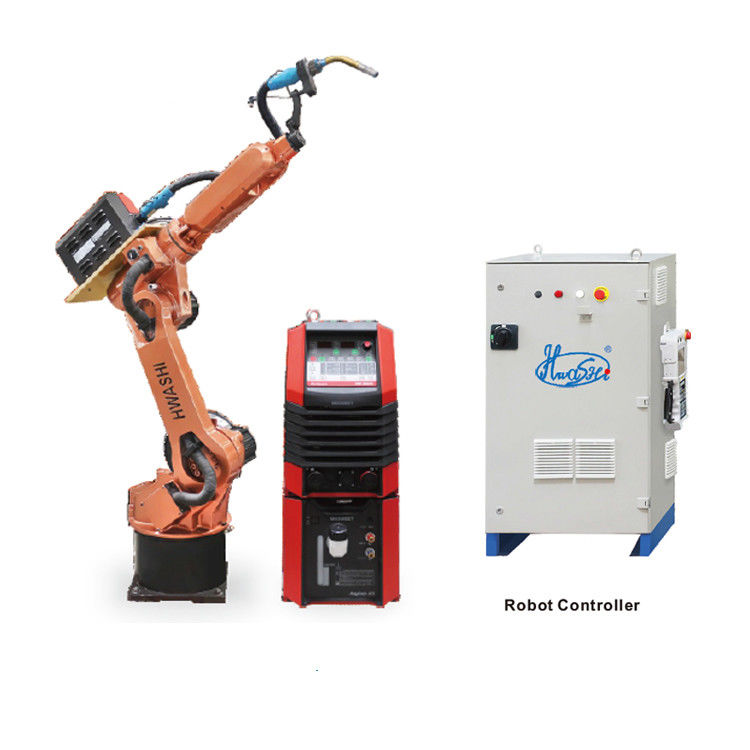

Controller System

The robot can optimize the speed according to the actual load so as to shorten the operation cycle time. 1. The robot can detect self moving and loading condition according to the built-in service information system so as to provide optimized service requirement. Longer continuous working period. 2. Embedded controller can control 6-8 axis. The operating rate could reach 500MIPS with high speed motion control fieldbus. Be able to achieve continuous trajectory teaching and on-line teaching. Equipped with remote control and diagnostic function. 3. Overall consideration of the external force such as gravity, centrifugal force, etc, in the process of robot movement, use adaptive identification control technology to improve dynamic performance of the robot.
