AC Servo Driving Industrial Welding Robots 6 Axis Pick Up Manipulator Long Lifespan

AC Servo Driving Industrial Welding Robots 6 Axis Pick Up Manipulator Long Lifespan

AC Servo Driving Industrial Welding Robots 6 Axis Pick Up Manipulator Long Lifespan

Product Details:

Place of Origin: China
Brand Name: Hwashi
Certification: CE, CCC
Model Number: HS-R6-08

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 10000usd
Packaging Details: wooden package
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
After-sales Service Provided: Video Technical Support Material: Steel
Weight: About 170kg Usage: Welding And Transportation,Welding Machine,Soldering And Welding,Robot Welding Support
Voltage: 220/380V Condition: New
Warranty: 1 Year Payload: 6 Kg,8KG
Number Of Axes: 6





Product Application

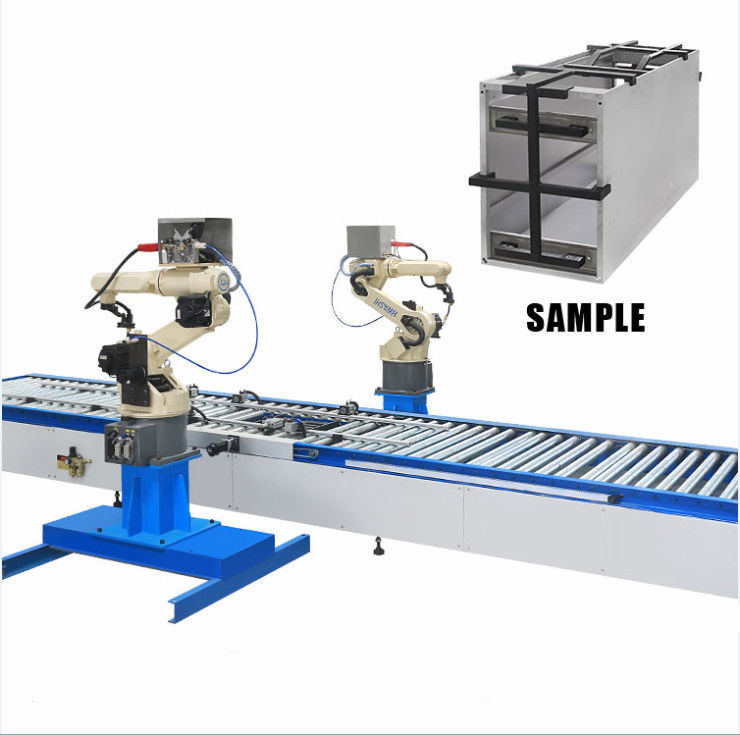

HWASHI HS-R6-08 6 Axis Automatic Industrial TIG Welding Robot for Stainless Steel Box 1. Welding system: Panasonic TIG welding machine with automatic wire feeding system. Stable performance. 2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm. 3. Welding gun system: famous brand TBI welding gun. 4. Welding gun cleaning and wire cutting system: TBI brand.

5. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

6. Startcontrol panel system: Manual/Automatic button platform with portable structure. Convenient for operation. 7. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency. 8. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.



Technical datas:



Vertical Reach
To mounting face
885mm
To wrist center
820mm
Axis Rotation
J1
±175°
J2
+64°/-142°
J3
+165°/-73°
J4
±178°
J5
±132°
J6
±720°
Max Horizontal Reach
1722mm
Allowed torque
J4
42 N*m
J5
42 N*m
J6
20 N*m
Allowed Inertia
J4
1.18 kg . m
J5
1.18 kg . m
J6
0.5 kg . m
Environment
Temperature
0-45℃
Humidity
20~80% RH(no condensation)
Other
Keep away from:
Flammable/corrosive gases
Flammable/corrosive Solvents
Water or oil and powder dust
Sources of electric noise
Weight
200-250 kg
Safety Regulations Arm
IP65


Controller System

The robot can optimize the speed according to the actual load so as to shorten the operation cycle time. 1. The robot can detect self moving and loading condition according to the built-in service information system so as to provide optimized service requirement. Longer continuous working period. 2. Embedded controller can control 6-8 axis. The operating rate could reach 500MIPS with high speed motion control fieldbus. Be able to achieve continuous trajectory teaching and on-line teaching. Equipped with remote control and diagnostic function. 3. Overall consideration of the external force such as gravity, centrifugal force, etc, in the process of robot movement, use adaptive identification control technology to improve dynamic performance of the robot.
