Aluminum Titanium MIG Arc Welding Robot HWASHI HS-RAW08

Aluminum Titanium MIG Arc Welding Robot HWASHI HS-RAW08

Titanium MIG Arc Welding Robot

Aluminum MIG Arc Welding Robot

HWASHI HS-RAW08

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

HS-RAW08

Contact Us

Request A Quote
Product Details
Product Name:
Stainless Steel / Aluminum / Titanium MIG Arc Welding Robot For Motorcycle Frame
Application:
Welding For Stainless Steel / Aluminum / Titanium Motorcycle Frame
Size:
1800x1300x1700mm
Weight:
1100 Kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Hwashi Stainless Steel / Aluminum / Titanium MIG Arc Welding Robot For Motorcycle Bike Frame





DESCRIPTION

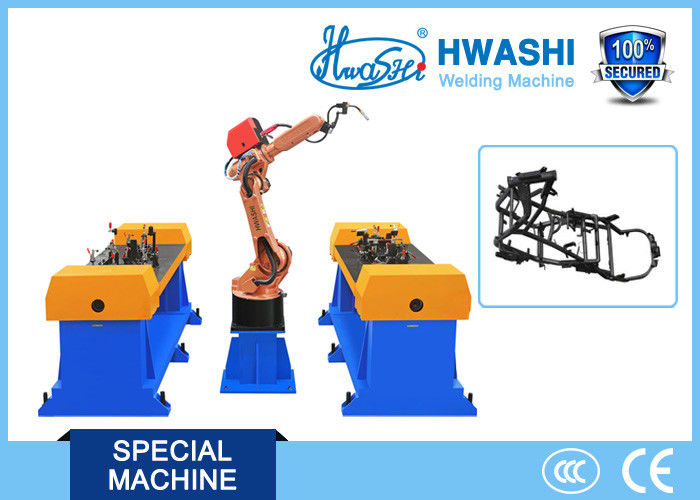

This welding robot system consists of welding robot , MIG welder , welding gun cleaner and positioners with jigs for motorcycle frame.



Six-axis articulated robots offer longer reaches  and can handle higher payloads. They are also available in configurations that allow operation in specific environments. Outstanding features include:
Fast cycle times from 0.59 to 0.49 sec.
Excellent repeatability from ±0.03mm to ±0.02mm
Payloads up to 8 kg
Reaches 1400 mm





SPECIFICATION

Model

HS-RAW08

DOF

6

Driving Mode

AC servo Driving

Effective Load (kg)

6

Repeat Positioning Accuracy (mm)

±0.05

Motion Range (°)

J1

±170

J2

±120~-85

J3

±85~-165

J4

±180

J5

±135

J6

±360

Max Speed (°/S)

J1

150

J2

150

J3

180

J4

270

J5

270

J6

270

Allowable Max Torque

J4

7.2

J5

7.2

J6

5.2

Moving Radius (mm)

893

Machine Weight

75







1. Welding system: Panasonic MIG or TIG welding machine with automatic wire feeding system. Stable performance.

2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.

3. Welding gun system: famous brand TBI welding gun.

4. Welding gun cleaning and wire cutting system: TBI brand.

5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.

6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.

7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.

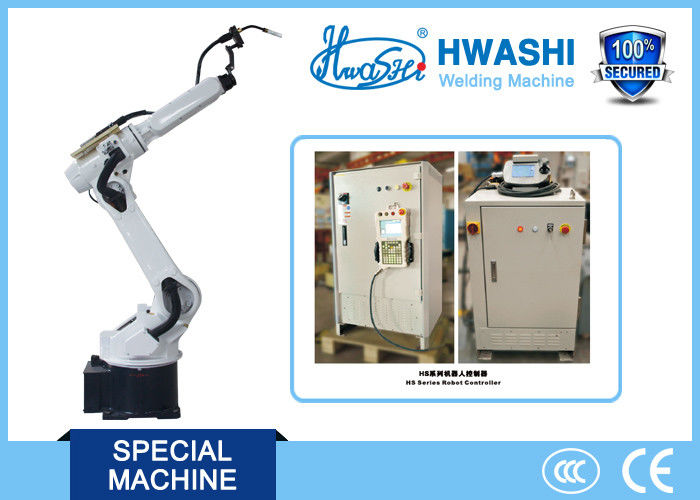

Aluminum Titanium MIG Arc Welding Robot HWASHI HS-RAW08 0
