No discoloration40KVA Nut Projection Welding Machine

No discoloration40KVA Nut Projection Welding Machine

Capacitor Spot Stud Welding Machine

40KVA Nut Projection Welding Machine

25000J Nut Projection Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-C-40K

Contact Us

Request A Quote
Product Details
Product Name:
Hwashi Capacitor Spot Stud Welding Machine , Nut Projection Welding Machine
Application:
Welding For Nuts On Cover Of Water Heater Tank
Size:
1200mmX1500mmX1850mm
Weight:
3500kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Hwashi Capacitor Spot Stud Welding Machine , Nut Projection Welding Machine



DESCRIPTION

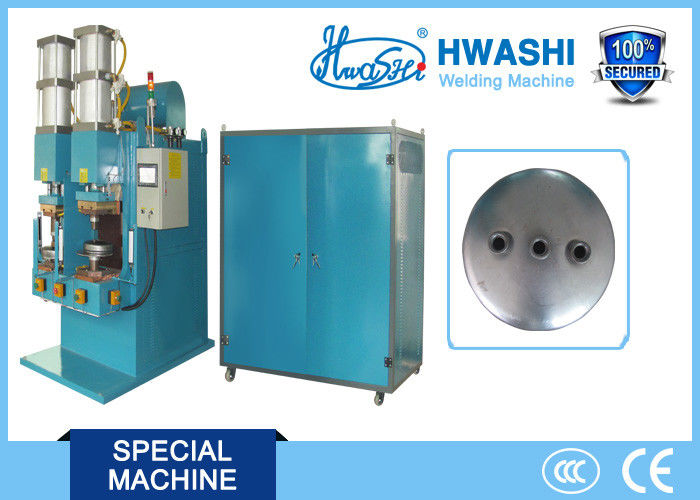

This automatic welding machine is specially designed to nut to the cover of water heater tank. No discoloration and mark on the welding position and no leakage on the seal of nut and cover.



Capacitor discharge spot welder uses capacitor to store energy and to release instantaneous current. In the meantime, it concentrates large current to pass through a small point and then achieves welding effect .Therefore, it can minimize the situation that the work piece being oxidized or mechanically deformed due to overheat during the process of welding.







SPECIFICATION

 Model

 WL-C-40K

 Voltage

 380 V

 Power

 40KVA

Energy Storage

25000J

Capacitance

250000uF

 Pressurization

2000kg

 Electrode Stroke

100 mm

 Closure

130-230mm

 Platform Distance

260mm

 Electrode Distance

490-540mm

 Cooling Water

15 Lit/min







FEATURE



1. Wide Application: Be able to weld 8mm of nonferrous metals like stainless steel, aluminum, titanium, silver, etc. Overcome the difficulties in welding dissimilar metals like bronze, aluminum, etc.



2. Firm and Good Looking: Firm welding; No black coating on the welding spots so no polishing process is needed; especially suitable for welding those exporting products which have high requirement on good looking.



3. Electricity and Energy Saving: This machine gets low surge power from the power grid and the power factor is high. Compared with the common AC machine with the same capability, it uses only 1/7 to 1/10 of the power. With a low cost.





APPLICATION

Be able to applied to industries like kitchen utensils, automobile manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.







MATERIAL CONFIGURATION



1. Adopt the energy storage type quick charge-discharge capacitor from Japan Nippon Chemi-Con (NCC) which is originated from MARGON or HITACHI; Fast discharge rate. Stable performance.



2. Adopt SEMIKON from West Germany, IXYS or IR Silicon controlled from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.



3. Adopt Motorola integrated circuits from United States. Quick response. Stable performance.



4. Adopt pneumatic parts from Japan or Taiwan with reliable performance.



5. All the devices are from imported famous brands with ideal service life and performance.







COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.



2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.



3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.



4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



5. Quick Delivery: Our company provides just-in-time delivery.



6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
