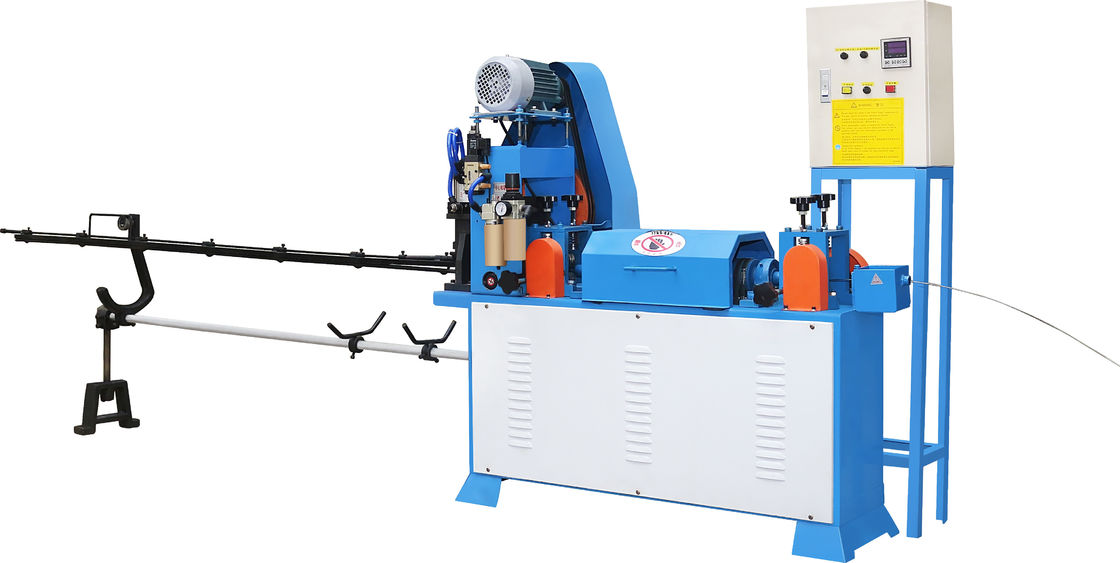

Steel Wire Welding Machine , Automatic Steel Wire Straightening and Cutting Machinery
SPECIFICATION
| No. | Items | Data |
| 1 | Diameter range | 1-3mm |
| 2 | Max fixed-length | 3000mm |
| 3 | Spindle speed: rpm | 1964.5 |
| 4 | Straightening speed: m/min | 20 |
| 5 | Motor power: KW | 0.55×2 |
| 6 | Equipment Rated Power | 1.2KW |
| 7 | Machine weight : KG | 136KG |
| 8 | External dimensions: mm | 2100×400×900 |
| 9 | Power Line Cross Section and Switch |
1.5mm2 15A |
| 10 | Consumption | Air: 0.012m3/min |
| 11 | Air Pressure | 0.5-0.8Mpa |
MATERIAL CONFIGURATION:
| No. | Items | Brand | Country of Origin |
| 1 | Power Switch | Schneider | Germany |
| 2 | Cylinder | Zhicheng | China |
| 3 | Solenoid Valve | SANWO | South Korea |
| 4 | Three-phase Asynchronous Motor | Nanyang | China |
| 5 | Encoder | AUTONICS | South Korea |
| 6 | Counter | AUTONICS | China |
| 7 | Frequency Converter | Delta | Taiwan |
APPLICATION
Applicable to Wire Automatic Straightening and Cutting.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
