Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
HS-OP-TS2-6
Contact Us
Video

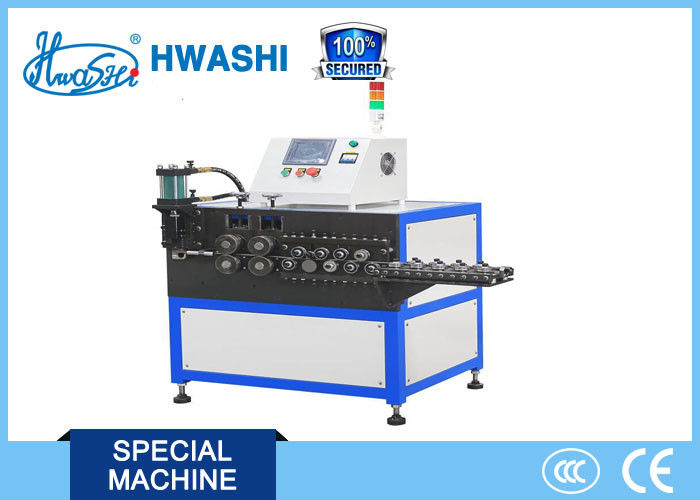

Steel Wire Straightening And Cutting Machine
DESCRIPTION
Wire Straightening and Cutting Machine is composed of wire feeding device, wire straightening device, cutting device , hydraulic driving device and control system ,etc. This machine adopts several sets of roller to straighten wire with the method of up-down press and left-right press, which can ensure nice wire surface and straightness. Its coder can automatically measure wire lengt , cut and drop wires. After loading material, the machine can achieve automatic operation. This machine has the functions like cutting length setting, production quantity setting, alarm system for breakdown, alarm to stop machine when wire is used out and so on. Operator can operate several machines simultaneously.
SPECIFICATION
| No. | Item | Parameter |
| 1 | Wire Diameter | Ø2mm-5mm/ Ø5mm-8mm |
| 2 | Oil cylinder | Ø63mmX25mm |
| 3 | Oil pump | 3P |
| 4 | Coder | E40S6-1000 Absolute type |
| 5 | Oil press power | 2.2KW/3HP |
| 6 | Oil case Volume | 80L |
| 7 | Oil pump flow | 40L/min |
| 8 | Max wire feeding speed | 25m/min adjustable |
| 9 | Hydraulic Motor Specification | 90X90 flange |
| 10 | Uncoiler Max load capacity | 1500Kg(customized) |
| 11 | Round Plate Diameter of Uncoiler | φ1600mm(customized) |
| 12 | Main Machine’s Service Voltage | Three Phase 380V(±15V) |
| 13 | Control Method | PLC |
| 14 | Preset Quantity Function | yes |
| 15 | Dimension | 1300x900mm |
Working Principle
Hydraulic driving mechanism adopts gear drive to speed up so that the rollers can spin with high speed and the wire going through the rollers will be straightened. Hydraulic motor utilizes gear reducer to drive four transporting compression roller to pull wire forward and drive oil cylinder to make the cutter move up and down. When coder senses the preset cutting length, the program will control solenoid valve through PLC to drive cutter to cut the wire through oil cylinder.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
