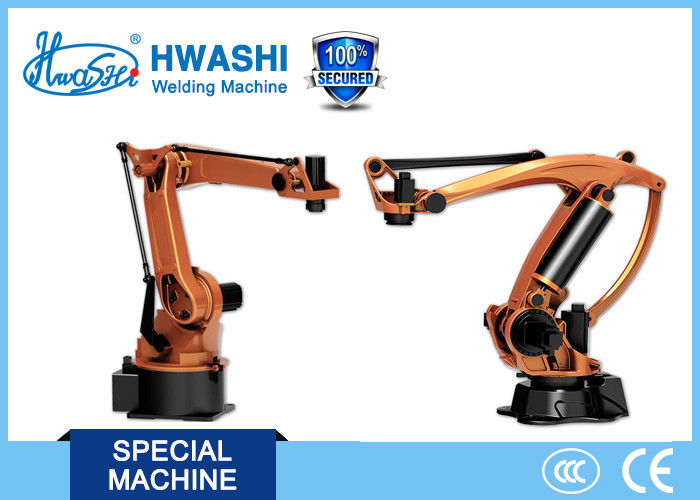

4 Axis 50KG 165KG Industrial Welding Robots HWASHI HS-R4-20

4 Axis 50KG 165KG Industrial Welding Robots HWASHI HS-R4-20

50KG Industrial Welding Robots

165KG Industrial Welding Robots

HWASHI HS-R4-20

Place of Origin:

Guangzhou Hwashi Technology INC

Brand Name:

Hwashi

Certification:

CE, ISO,CCC

Model Number:

HS-R4-20

Contact Us

Request A Quote
Product Details
DOF:
4
Driving Method:
AC Servo Driving
Weight (KG):
200
Max. Payload:
50kg
Motion Range:
1720mm
Usage:
Welding,spraying,load And Unload
Voltage:
Three-phase 380V,50HZ/60HZ
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
wooden packaging
Delivery Time
15-30 working days
Payment Terms
L/C, T/T
Supply Ability
15 sets per month
Product Description

HWASHI 4 Axis 20KG/50KG/165KG Industrial Pick And Place Robot Arm



Product Description









Specification
Items
Parameters
Model
HS-R4-20
Degrees of Freedom
4
Driving Method
AC servo driving
Max. Payload
50kg
Motion Range
1720mm
Repeated Positioning Accuracy
±0.08mm
Motion Range
J1Axis
±170°

J2Axis
+115°~ -25°

J3Axis
+70°~ -90°

J4Axis
±360°
Max. Speed
J1Axis
170°/s

J2Axis
170°/s

J3Axis
185°/s

J4Axis
330°/s
Twist Allowable load inertia
0.51 kg•㎡
Cycle Time (turns/per hour)
1780①
Environment
Temperature
0℃~55℃

Humidity
20%~80%(No frost)

Other
Avoid inflammable, explosive, corrosive gas and liquid;
No water, oil, dust;
Keep away from noise(plasma)
Installation Method
Ground installing
Robot Main body
256kg
Power
Three-phase 380V,50HZ/60HZ
Electric Cabinet Weight
200kg





Robot Size and Movement Range

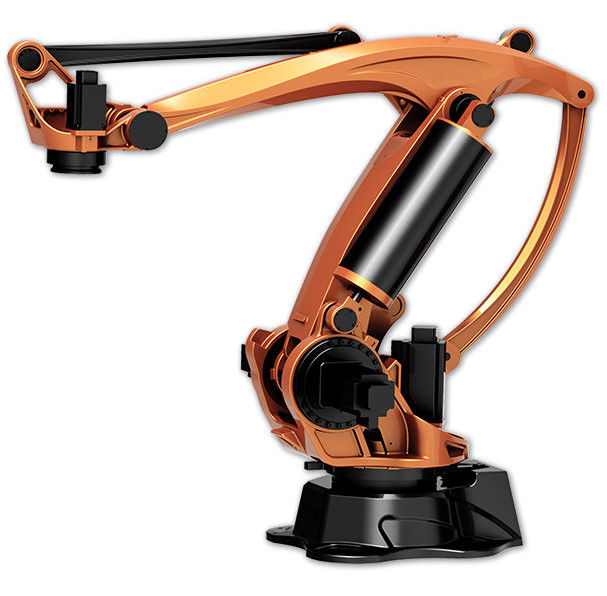

4 Axis 50KG 165KG Industrial Welding Robots HWASHI HS-R4-20 0

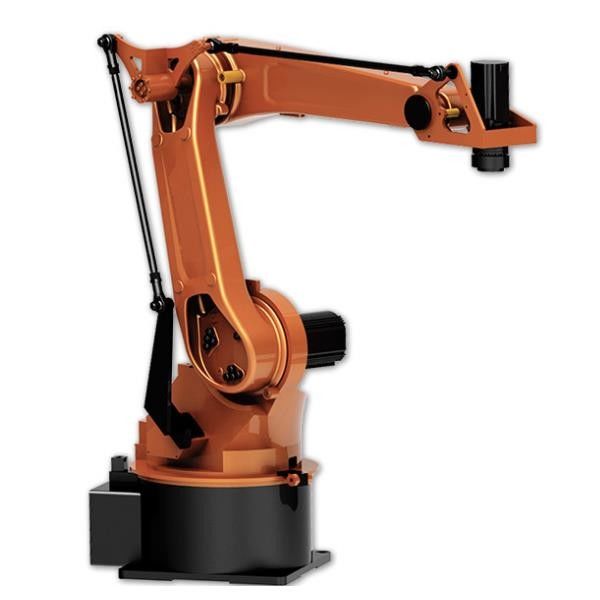

4 Axis 50KG 165KG Industrial Welding Robots HWASHI HS-R4-20 1
