Iron And Stainless Steel Arc Welder Automatic Seam Welding Facility

Iron And Stainless Steel Arc Welder Automatic Seam Welding Facility

mig tig welding machine

arc welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-YZ-1500

Contact Us

Request A Quote
Product Details
Product Name:
Iron And Stainless Steel Product. Argon Welder , Automatic Motorcycle Damper
Application:
Welding Of Iron And Stainless Steel Product.
Size:
480mmX900mmX1600mm
Weight:
350 Kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Welding Gun Moving Speed:
0.5m/sec
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Iron And Stainless Steel Product. Argon  Welder ,  Automatic Motorcycle Damper



SPECIFICATION

No.

Item

Data

1

Input Voltage

380V three-phase

2

Input current

15Ax3

3

Min welding thickness

0.2mm

4

Max welding thickness

3mm

5

Work piece max welding length

1500mm

6

Work piece max diameter

1000mm

7

Work piece min diameter

300mm

9

Welding gun moving speed

0.5m/sec



DESCRIPTION

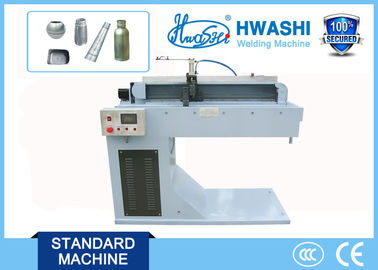

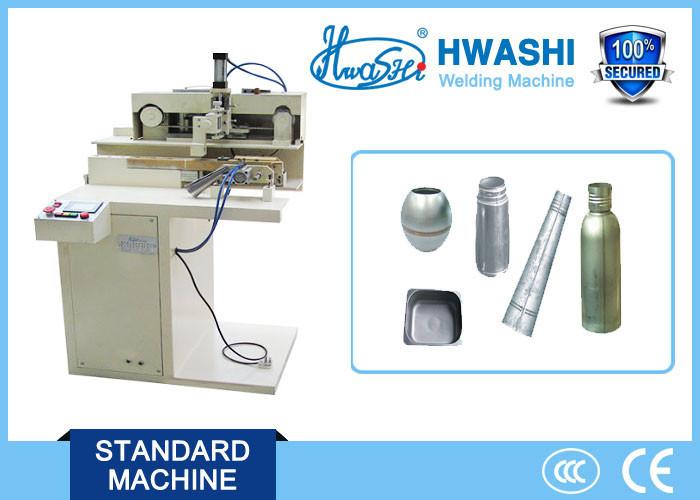

Automatic straight seam welding machine taking argon arc welding machine as the welding power source. The stepping motor drives the welding gun to conduct constant speed movement. The moving speed and length is set through PLC; use pneumatic pressing plate to press to ensure the stability and consistency of welding; the action program of the whole machine is controlled by PLC; use the touch screen to input data.

Maximum work piece length: 300/500/1000/1500/2000mm

Welding thickness: 0.3-8.0mm

Welding speed: 30-800mm/min





APPLICATION

Applied to welding of iron and stainless steel product.



COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3.When your requirements demand a Multiple-head or Dedicated Resistance welder, call HWASHI. Our many years of experience in developing and producing cost effective, specialized Resistance welders for internationally recognized and new emerging companies, allows us to help you to achieve increased productivity and reduced welding costs within an affordable budget.







          Iron And Stainless Steel Arc  Welder  Automatic Seam Welding Facility 0



           Iron And Stainless Steel Arc  Welder  Automatic Seam Welding Facility 1Iron And Stainless Steel Arc  Welder  Automatic Seam Welding Facility 2

                    Iron And Stainless Steel Arc  Welder  Automatic Seam Welding Facility 3 Iron And Stainless Steel Arc  Welder  Automatic Seam Welding Facility 4Iron And Stainless Steel Arc  Welder  Automatic Seam Welding Facility 5
