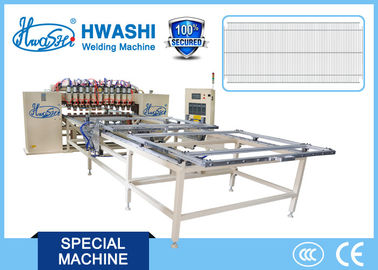

Automatic Wire Welding machine for Security Fence / Cage Mesh / Reinforcing Mesh

Automatic Wire Welding machine for Security Fence / Cage Mesh / Reinforcing Mesh

wire welding machinery

wire welding equipment

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-150Kx2

Contact Us

Request A Quote
Product Details
Product Name:
Automatic Wire Welding Machine For Security Fence / Cage Mesh / Reinforcing Mesh / Wire Mesh
Application:
Welding Of Security Fence / Cage Mesh / Reinforcing Mesh / Wire Mesh
Size:
2800x1380x1850mm
Weight:
1500kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Automatic Wire Welding machine for Security Fence / Cage Mesh / Reinforcing Mesh / wire mesh





Automatic Wire Mesh Welding Machine is custom made machine, usually we design and manufacture the machine based on:

1. wire diameter

2. mesh dimension

3. production capacity



When you need this kind of machine, please kind send your wire mesh drawing first clearly showing:

1. wire diameter;

2. the distance between lines;

3. the total length and width of the wire mesh;

4. production capacity;

5. cost budget.

Then we can custom design and manufacture for you based on your requirements. Also we will give our suggestions base on our experience.



DESCRIPTION

1.Operation Principle: Resistance Welding is when electrodes place pressure on the work pieces and turn on power, the contact resistance between electrodes produce heat to melt the metal and weld the work pieces together. No need to add any solder, high efficiency, low cost.



2.Heavy duty gantry structure, upper electrodes use multilayer cylinders to place direct pressure, more pressure per unit area, so guarantee the welding quality.



3.The space between cylinders, the number of operational cylinders and welding specifications can be adjustable. So one welding machine can weld many different specifications of wire mesh, general and high efficiency.



4. The welding specifications such as wire diameter, wire distance, welding speed can be adjustable, so the welding quality is reliable and beautiful.



5. The key part transformer we use best quality, all made of copper, when welding iron wire no spark and good quality.



6. Inside the machine we use strong water cooling so the machine can work continuously.



7. Control System, we use computer and programmable PLC and touch screen, users can easily set 20groups of welding specifications and choose from them based on different kinds of wire mesh.



8. Can work from both sides of the machine. When one side is welding, at the same time on the other side worker can put wires on the jig. So can weld continuously to realize high production capacity.







APPLICATION



Application: weld metal wire mesh, goods shelf, guard rail, air conditioner mesh, dish rack etc. Continuous welding wire mesh whose width is within 2000mm, length is not restricted.



SPECIFICATION



Model

WL-SQ-150K×2

Input Voltage

two-phase 380V

Input Current

400A

Output Voltage

12V

Max Short Circuit Current

45000A

Welding Effective Width

2000mm

Welding Effective Length

not restricted

Feeder Moving Speed

500mm/sec

Upper Welding Cylinder

¢100x100mm

Lower Welding Cylinder

¢160x100mm







COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Can custom design and manufacture based on customers' needs.



3. Use the most advanced technology ball screw driving to realize higher precision and efficiency.



4. Key parts use the best quality. Transformer made of copper by ourselves, no spark and excellent welding quality.



5. There are similar stock to show to customers when you come to visit.



6. Quick delivery: 15-30 days as we have spare parts stock.



7. Can do drop shipping: do proper export wood package and arrange shipment for customers.







          Automatic Wire Welding machine for Security Fence / Cage Mesh / Reinforcing Mesh 0



          Automatic Wire Welding machine for Security Fence / Cage Mesh / Reinforcing Mesh 1

Automatic Wire Welding machine for Security Fence / Cage Mesh / Reinforcing Mesh 2
