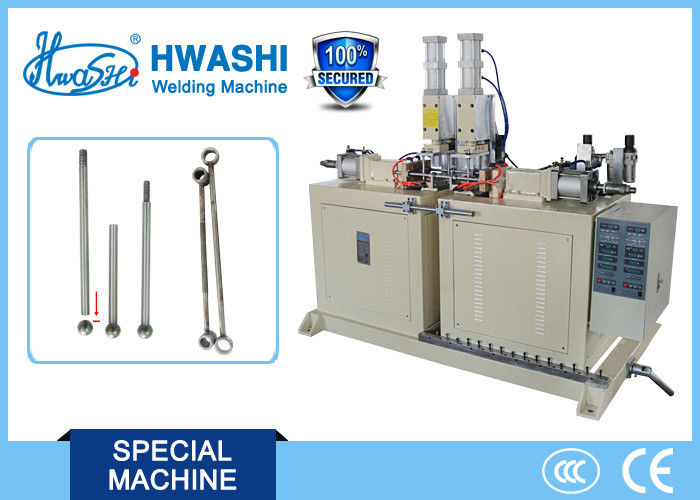

Double Swivel Stabilizer Link Automatic Welding Machine for Auto parts

Double Swivel Stabilizer Link Automatic Welding Machine for Auto parts

auto welding machine

welding machine components

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-TP-150K

Contact Us

Request A Quote
Product Details
Product Name:
Double Swivel Stabilizer Link Automatic Welding Machine For Auto Parts
Application:
Welding Of Stablizer Link
Size:
1260mmx2230mmx1460mm
Weight:
1560kg
Output Current:
40000A
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Double Swivel Stabilizer Link Automatic Welding Machine for Auto parts


DESCRIPTION

According to the welding characteristics, welding intensity and welding outlook of the work piece, the machine will be customized

The adjustable fixture is designed with double guide rail device on both sides, matching with the precision-machined linear guide rail. The lower fixture is designed as cylinder rising up mode. Simple structure, convenient adjustment.

The shaft part will be clamped by cylinders while the bushing part will be located in the lower fixture. The lower fixture will be designed to match the bushing in order to ensure the effective conductivity of welding current. After starting the welding, the cylinder will clamp the shaft, then the lower fixture will rise up to welding.



APPLICATION

Suitable for welding stabilizer link, automobile connecting rod, push rod, shifting fork, etc.


SPECIFICATION



No.

Item

WL-TP-150K

1

Input Power

Two-phase 380V±10% 50Hz
(can be customized)

2

Rated Duty Cycle

25%

3

Max. Secondary Floating Voltage

6.75VAC

4

Max. Secondary Short Circuit Current

34000A

5

Welding Transformer Insulation

Grade

Grade F

6

Control Heat Adjusting Range

15%~99%

7

Compensation for the Voltage Fluctuation of Power Grid

When the voltage flutuates within ±10% of the rated power grid value, the secondary voltage will fluctuate within ≤±5%

8

Clamping Cylinder

¢80x50mm

9

Welding Cylinder

¢100x80mm

10

Electrode Holder

¢25mm

11

Welding Shaft Max. Length

400mm (adjustable)

12

Rated Air Pressure

0.6MPa

13

Gas Consumption

10³/h

14

Water Pressure

0.2Mpa

15

Water Temperature

10-20℃

16

Cooling Water Consumption

100L/H(can be recycle)




MATERIAL CONFIGURATION


No.

Name

Specification

Brand

Country of Origin

1

Discharging Silicon Controlled

SCR1000-12E

SCR

Germany

2

Discharging Control Panel

WD-KD5

HWASHI

Self-Developed

3

Switch

DS-231

IDEC

Japan

4

Main Control Solenoid Valve

6000#

SANWO

South Korea

5

Forcing Solenoid Valve

4#

SANWO

South Korea

6

Air Assembly

6000#

SANWO

South Korea

7

Main Control Cylinder

100x80mm

ZHICHEN

Joint Venture




COMPETITIVE ADVANTAGE


1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.



2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.



3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.



4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



5. Quick Delivery: Our company provides just-in-time delivery.



6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
