Mini Spot Welding Machine with Capacitor Discharge Power Supply System

Mini Spot Welding Machine with Capacitor Discharge Power Supply System

    • Mini Spot Welding Machine with Capacitor Discharge Power Supply System
    • Mini Spot Welding Machine with Capacitor Discharge Power Supply System
  • Mini Spot Welding Machine with Capacitor Discharge Power Supply System

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-CJ-1K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Precision Mini Spot Welding Machine With Capacitor Discharge Power Supply System Application: Welding Of Precision Parts
    Weight: 30kg Condition: New
    Warranty: 12 Months Standard: CE/CCC/ISO
    Color: Customized Material: Iron
    Size: 500x300x300cm

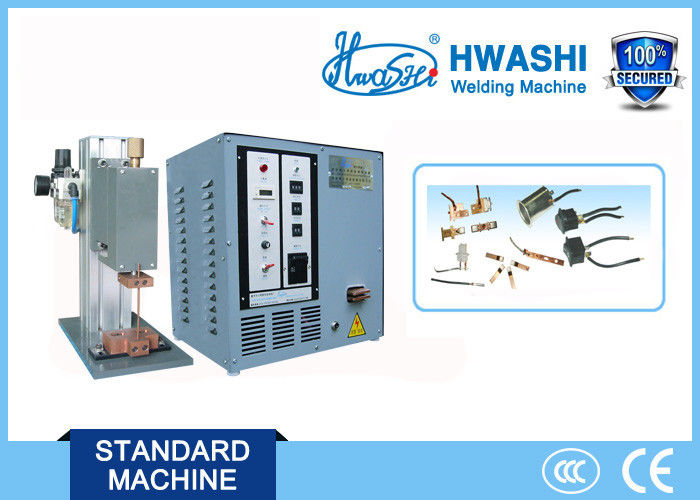

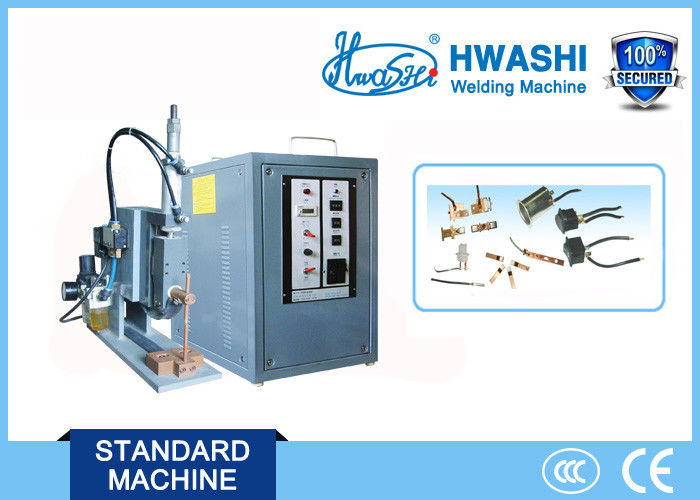

    Precision Mini Spot Welding Machine with Capacitor Discharge Power Supply System





    Capacitor Discharge Minisize Precision Spot Welder not only possesses the general features of capacitor discharge spot welder, but also possesses other performance features as follows,





    1. Effectively restrain the occurrence of welding spatter;

    2. High working accuracy;

    3. High degree of steel structure;

    4. Low pressure of welding;

    5. Stepless adjustment of electrode pressure range;

    6. Stepless adjustment of electrode pressure stroke;

    7. Flexible collocation of welding head. Indirect single-point, indirect double-point and direct single-point or direct double-point is all available.



    SPECIFICATION

    Model

    Welding Spot Manner

    Input Voltage

    Input

    Power

    Capacitance

    Output Heat

    Welding Capability

    Dimensions

    Single / Double

    V

    KW

    μF

    J

    mm×Pieces

    W*D*H (mm)

    WL-CJ-0.5K

    Direct single-point

    220/1

    0.5

    2000

    180

    0.4×2

    500*400*300

    WL-CJD-0.5K

    Indirect double-point

    220/1

    0.5

    2000

    180

    0.4×2

    500*400*300

    WL-CJ-1K

    Direct single-point

    220/1

    1

    3000

    380

    0.5×2

    600*450*300

    WL-CJD-1K

    Indirect double-point

    220/1

    1

    3000

    380

    0.5×2

    600*450*300

    WL-CJ-2K

    Direct single-point

    220/1

    1

    4500

    500

    1.0×2

    380*650*450





























    APPLICATION

    Welding of silver contact of low voltage appliances, welding of minisize precise work pieces like crystal valve of chip, etc.









    COMPATITIVE ADVANTAGE



    1. Prompt Response to Customers: Your satisfaction is the goal we pursue.

     HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.









              Mini Spot Welding Machine with Capacitor Discharge Power Supply System
