High Efficiency 6 Head Full Automatic Wire Shelves Spot Welding Machine

China High Efficiency 6 Head Full Automatic Wire Shelves Spot Welding Machine supplier

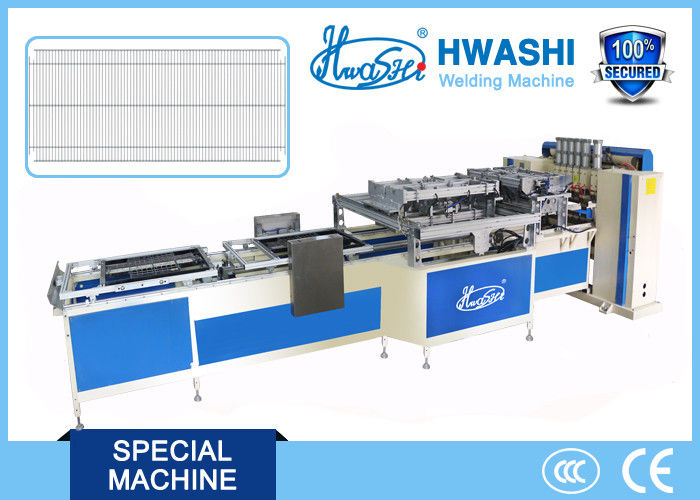

Large Image :  High Efficiency 6 Head Full Automatic Wire Shelves Spot Welding Machine

Product Details:

Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-SQ-150Kx2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: 6-Head Automatic Wire Mesh Welding Machine With X, Y Axis Wire Filling System Application: Welding Of Shopping Carts Mesh
Size: 2800x2380x1850mm Weight: 2500kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years

6 Head Wire Mesh Automatic Spot Welding Machine With X Y Axis Wire Filling System







DESCRIPTION

This machine is designed as gantry type row welder for high efficient welding of wire mesh. This machine is suitable for welding wire mesh. The machine is designed as six welding heads with two sets of welding power system, X, Y axis of automatic wire feeding system with no frame fixture. It is suitable for welding the mesh within 1200x1200mm.







APPLICATION



Continuous welding wire mesh within 1200x1200mm.





FEATURES

1. Power Source 1: Adopt 2 sets of 150KVA special resistance welding transformer as the welding power source. Single-spot welding. Continuous duty cycle rate is 25%; the output current is larger than 26000A. The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 12000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful in order to obtain high quality, high efficiency, stable welding spots.



2. Power Source 2: Adopt medium frequency inverter welding source. Duty cycle rate reaches 50%. The three-phase power supply is under rectifying through a special inverter and converted to 1000Hz AC voltage and then be transmitted to a medium frequency transformer to be rectified so as to provide DC welding current. Compare with general AC pulse power supply, this kind of power source could be fast and precisely adjusted. Small impact to the power grid and lower requirement for the power grid compare with the single-phase welder of the same capacity.



3.Automatic Wire Feeding System: Automatic feeding the wire with 2-5mm diameter and the maximum length of X axis is 1200mm while maximum Y axis is 1200mm. Use the servo motor to drive and use cylinder to vibrate in order to make sure the wires are in ordered arrangement. This machine is designed as X, Y axis two sets of automatic wire feeding system which will be located in the X and Y direction of the machine.



SPECIFICATION

No.

Model

WL-SQ-AC150K

WL-SQ-MF90K

1

Input Power

Two-phase

Three-phase

2

Rated Capacity

150KVAx2

90KVAx2

3

Rated Input Current

750A

270A

4

Rated Duty Cycle

25%

25%

5

Secondary Voltage Adjusting Grade

2

2

6

Max Secondary Floating Voltage

AC7.5V

DC9.8V

7

Secondary Max Short

Circuit Current

26KA

28KA

8

Continuous Working Current

20KA

22KA

9

Welding Transformer Insulation Grade

Grade F

10

Forcing Curve of Welding Machine

2 types

11

Storage Welding Model Number

30 types

12

Welding Electrode

6 sets

14

Effective Welding

Width

1200mm

15

Effective Welding

Width Length

1200mm

16

Automatic Mobile Speed

0.5m/sec

17

Y direction Wire Feeding Speed

0.5m/sec

18

Upper Electrode Stroke

80mm

19

Lower Electrode Stroke

30mm









COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
