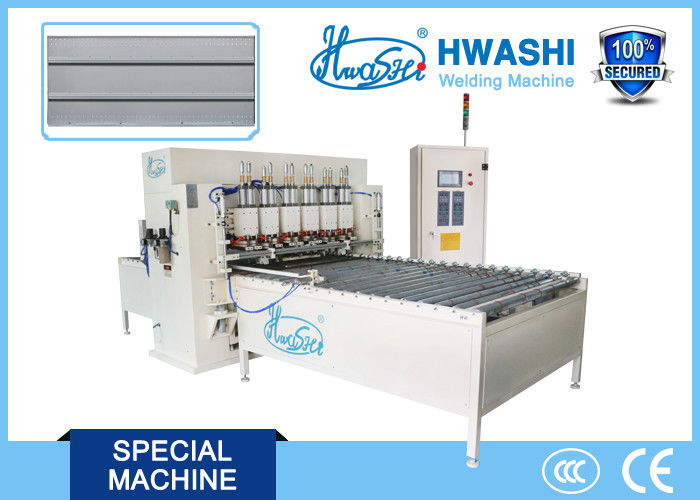

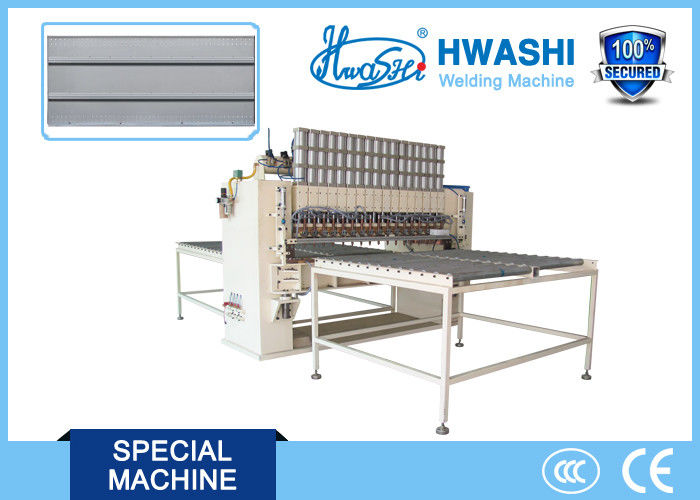

Automatic Multipoint Door Sheet Metal Welder

Automatic Multipoint Door Sheet Metal Welder

    • Automatic Multipoint Door Sheet Metal Welder
    • Automatic Multipoint Door Sheet Metal Welder
  • Automatic Multipoint Door Sheet Metal Welder

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-SQ-100Kx2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Automatic Multipoint Door Sheet Metal Welder Application: Welding For Sheet Panel
    Size: 1500*3200*2300mm Weight: 3000kg
    Condition: New Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years

    Automatic Multipoint Door Sheet Metal Welder





    SPECIFICATION



     No.

    S.N

    Item

    Specification

    Description

    1

    Input voltage

    380V ,2-phases

    It can be customized, but only for 2-phases.

    2

    Input current



    400A



    3

    Output voltage



    12V



    4

    Max.Welding current



    34000A



    5

    Effective welding width



    1200mm (ajustable)



    6

    Effective welding length



    3000mm (ajustable)



    7

    Feeding Rack Mobile speed



    0.5m/sec

    Servo motor transmitting

    8

    Upper welding air cylinder



    100x100mm

    Double force pressing cylinder

    9

    Lower cylinder

    160x100mm







    APPLICATION



    This machine is widely used to weld metal sheet in electronic appliances, automobile and some other industries.







    DESCRIPTION

    1. Encoding servo motor feeding rack mechanism, equipped with high precise slide guide and automatic detection device. Has the advantages of quick reaction, high precise control, powerful engine, and high effeciency.

    2. Intelligent touch-screen microcomputer controller,completely digital control,automatic detection and compensation,loose welding and false welding are well prevented.

    3. Panasonic touch-screen hunan-computer interface,Panasonic programer is adopted as the control hub, in charging of reading and dealing with control signal to gurrantee that the machine operartion is in order and effective.

    4. Groups of welding electrodes can be moved from left to right,all kinds of products are suitable to be welded. Welding electrodes can work in flexible order. No metal sheet deformation.

    5. Pneumatic mechanism, the perssure of every electrodes can be adjusted, stable force is achieved. The upper electrodes have an adjustable working distance forwards and afterwards, the lower electrode mould installation is simple and flexible to be adjusted from left to right.





    FEATURE

    1. Main body: It adopts longitudinal stress body and good quality thick steel plate to ensure the strength and stability of the main body.

    2. Welding Power Source: Choose the small power 150KW discharging transformer which is special used for resistance welding as the welding power source. To ensure the strength and stability of the welding,

    3. Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot. In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot.

    4. Pressurized Mechanism: Multiple pressurized mechanisms are adopted to drive the row welding electrodes to conduct welding to each wire respectively.







    COMPETITIVE ADVANTAGE





    1. HWASHI is the leading enterprise in  resistance welding industry in China for 20 years; Factory direct sale, competitive price.



    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.



    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.



    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



    5. Quick Delivery: Our company provides just-in-time delivery.



    6. Prompt Response to Customers: Your satisfaction is the goal Hwashi pursue.







              Automatic Multipoint Door Sheet Metal Welder



                                    Automatic Multipoint Door Sheet Metal Welder

                                        Automatic Multipoint Door Sheet Metal Welder

                                         Automatic Multipoint Door Sheet Metal Welder
