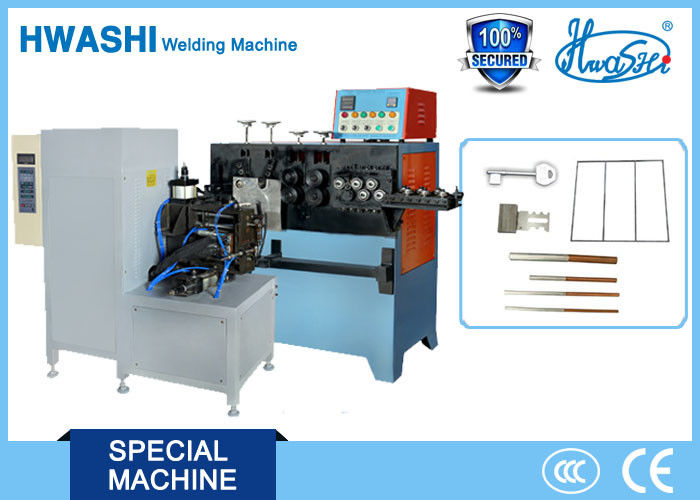

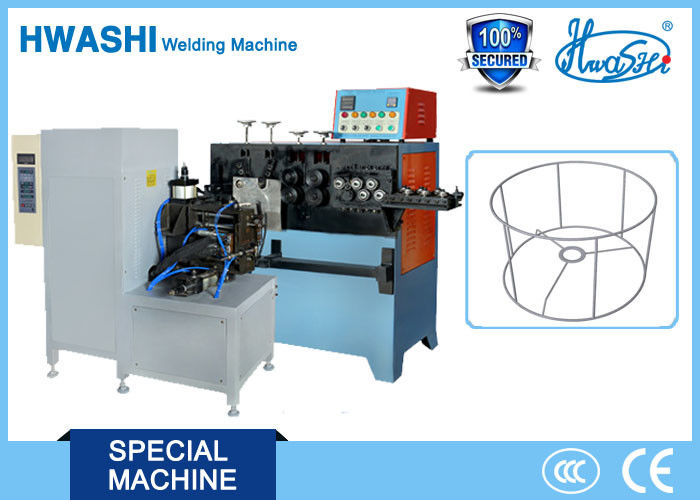

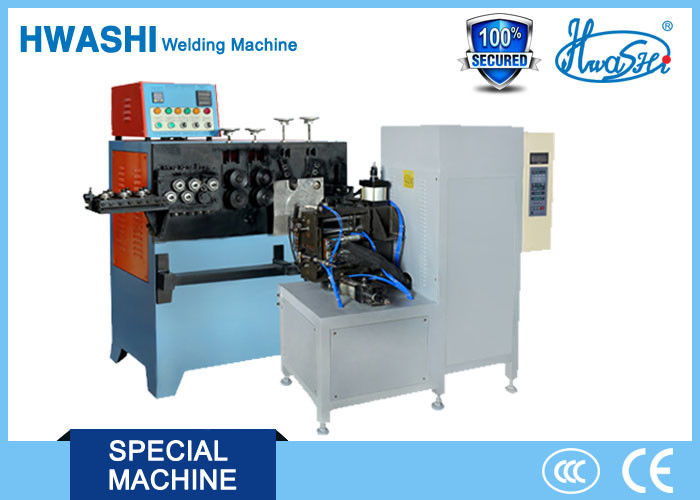

Automatic Alloy Aluminum Ring Strip Coiling And Butt Welding Machine

Automatic Alloy Aluminum Ring Strip Coiling And Butt Welding Machine

    • Automatic Alloy Aluminum Ring Strip Coiling And Butt Welding Machine
    • Automatic Alloy Aluminum Ring Strip Coiling And Butt Welding Machine
    • Automatic Alloy Aluminum Ring Strip Coiling And Butt Welding Machine
  • Automatic Alloy Aluminum Ring Strip Coiling And Butt Welding Machine

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-AT-75K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Automatic Alloy Aluminum Ring Strip Coiling And Butt Welding Machine Application: Suitable For Welding Metals
    Size: 1800mmX1400mmX1400mm Weight: 1100 Kg
    Condition: New Warranty: One Year
    Standard: CE/CCC/ISO Service Life: 8-10 Years
    Welding Range: Automatic Ring Coiling And Butt Welding Welding Thickness: 4+4mm

    Automatic Ring Coiling And Butt Welding Machine , Alloy Aluminum Welding Machine

    Descrpition
     This automatic ring making and welding machine is composed of automatic feeding, automatic coiling, automatic moving, automatic welding and automatic unloading process.



    Feature


    Technological process:

    1. Automatic feeding ( feeding the wire)
    2. Automatic coiling ( hydraulic system, wire pressing wheel)
    3. Automatic moving (cylinder robot arm)
    4. Automatic welding (AC pulse power/MF DC power)
    5. Automatic unloading (cylinder robot arm)
    6. Sound-light alarm function: the machine will give alarm when the material is used up, the power is overpressure, the welding current is abnormal or when the temperature is too high.
    7. Counting function: the machine will sum up the number of qualified product, defective product and welding times of electrode.
    8. Monitoring function: the display screen will monitor the whole process of actions and the welding current of each welding process. It will give alarm when the monitoring function is abnormal.



    SPECIFICATION



    No. Item Automatic Welding Automatic Welding Automatic Coiling
    1 Input Power 75KW 75KW 2.2KW
    2 Input Voltage

    400V50Hz

    Three-phase

    400V50Hz

    Single-Phase

    380V Three-Phase
    3 Input Current 115A 135A 10A
    4 Output Voltage DC7.6V AC5.6V
    5 Max Short Circuit Current 21000A 24000A
    6 Welding Models 101 types 16 Types
    7 Wire Diameter Range 2-8mm
    8 Coiling Ring Diameter 35-750mm
    9 Feed Rate 20m/Min
    10 Robotic Arm Moving Speed 500mm/Sec
    11 Robotic Arm Open Distance 10mm
    12 Welding Cylinder ¢100x80mm
    13 Moving Cylinder ¢32x100mm
    14 Clamping Cylinder ¢16x20mm





    APPLICATION
    Mainly used to butt welding of key,low-carbon steel ,copper ,brass,stainless steel ,aluminum and other metal wires.
     Automatic Alloy Aluminum Ring Strip Coiling And Butt Welding MachineAutomatic Alloy Aluminum Ring Strip Coiling And Butt Welding Machine


    COMPETITIVE ADVANTAGE
    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
    5. Quick Delivery: Our company provides just-in-time delivery.
    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.





              Automatic Alloy Aluminum Ring Strip Coiling And Butt Welding Machine

    Automatic Alloy Aluminum Ring Strip Coiling And Butt Welding Machine
