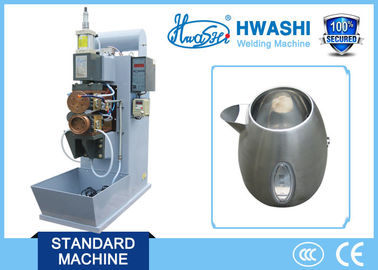

Pot Bottom Circular Seam Welding Machine / Coffee Pot Base Seam Welder Machine

Pot Bottom Circular Seam Welding Machine / Coffee Pot Base Seam Welder Machine

    • Pot Bottom Circular Seam Welding Machine / Coffee Pot Base Seam Welder Machine
    • Pot Bottom Circular Seam Welding Machine / Coffee Pot Base Seam Welder Machine
    • Pot Bottom Circular Seam Welding Machine / Coffee Pot Base Seam Welder Machine
  • Pot Bottom Circular Seam Welding Machine / Coffee Pot Base Seam Welder Machine

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-FS-80K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Coffee Pot Base Welding Machine , Pot Bottom Circular Seam Welding Machine Application: Welding For Stainless Steel Coffee Pot Base
    Condition: New Warranty: One Year
    Standard: CE/CCC/ISO Service Life: 8-10 Years
    Duty Cycle Rate: 20% Rated Power: 80KVA
    Welding Thickness: 2+2mm



    Pot Bottom Circular Seam Welding Machine / Coffee Pot Base seam welder machine





    DESCRIPTION



    •  The seam (roll) welding special machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect.
    • The weld seam of roll welding is composed of welding spots. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.





    Pot Bottom Circular Seam Welding Machine / Coffee Pot Base Seam Welder Machine



          Pot Bottom Circular Seam Welding Machine / Coffee Pot Base Seam Welder Machine



          Pot Bottom Circular Seam Welding Machine / Coffee Pot Base Seam Welder Machine



    SPECIFICATION



    Items Specification
    Display 5 Inches Blue Display Screen
    Rated Power 80KVA
    Input Voltage AC 380V, 50Hz
    Duty Cycle Rate 20%
    Maximum Short Circuit Current 25000A
    Inverter Frequency 1000Hz
    Welding Cycle Period 11
    Welding Pulse Times 3
    Current Slow Rise And Down Control Yes
    Stored Welding Models 20
    Throat Depth 300mm
    Cylinder Size

    ¢100x100mm







    APPLICATION

    Suitable for welding all kinds of metal kettle water tank,and bottom base.



    FEATURE



    1. Adopt intelligent microcomputer single piece controller which achieve pure digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online.
    2. Adopt intelligent microcomputer control welding system. When the voltage fluctuates, it will compensate the welding current automatically to ensure the stability of welding.
    3. Adopt digital circuit control; select the components from famous factories in the world to ensure the equipment could operate steadily in the long run.
    4. Adopt SEMIKRON from West Germany, IXYS and IR silicon controlled from United States. High precision, long operating life, achieve high stability control of the magnitude of current.
    5. The transmission tile axis adopts the latest mercury conductive technology from abroad. State-of –the-art technology with good performance in transmission and conductivity.
    6. Welding roll wheel adopts the alloy copper material from Japan. High rigidity, good conductivity.



    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
