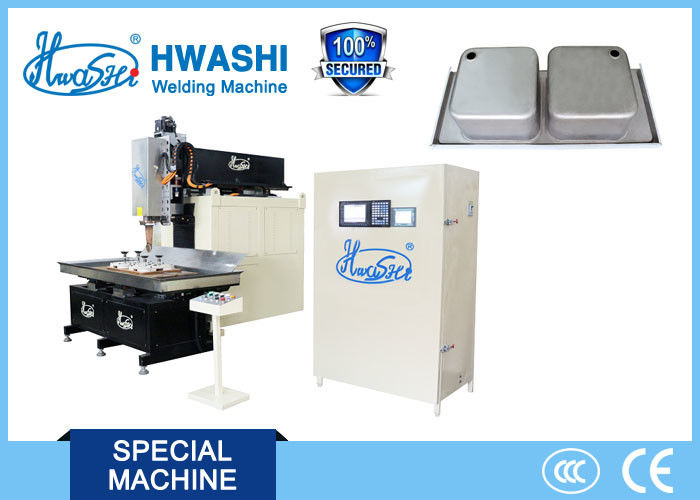

Stainless Steel Rolling Seam Welding Machine

Stainless Steel Rolling Seam Welding Machine

arc welding machine

mig tig welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC\ISO

Model Number:

WL-FS -100K

Contact Us

Request A Quote
Product Details
Product Name:
HWASHI CNC Stainless Steel Rolling Seam Welding Machine For Kitchen Sink
Application:
Semi-automatic Sink Welding
Size:
780x1500x1800mm
Weight:
500kg
Condition:
New
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

HWASHI CNC Stainless Steel  Rolling Seam Welding Machine for Kitchen Sink



SPECIFICATION

Model

WL-FS-AC75K

WL-FS-MF75K

WL-FS-MF100K

Input Voltage

Three-phase 380V±10%  50Hz



Three-phase 380V±10%  50Hz

Input Power

75KVA

100KVA

Rated Input Current

115A

150A

Rated Duty Cycle Rate

50%

50%

Max Secondary Floating Voltage

DC9.75V

DC11.6V

Secondary Max Short Circuit Current

26500A

28000A

Welding Transformer Insulation Grade

Grade F

Grade F

Program Segment Time Adjustment Range

0~9999SEC

0~9999SEC

Controller Heat Adjustment Range



15%~99%

15%~99%

Upper Welding Wheel Diameter

280mm

Lower Welding Wheel Diameter

40mm

Welding Wheel Width

3mm

Welding Wheel Rotating Speed

800-4000mm/min (adjustable)

Upper Welding Wheel Throat Depth Distance

400mm

Lower Welding Wheel Throat Depth Distance

400mm

Upper and Lower Welding Wheel Distance

50mm

Air Pressure

0.6MPa

Gas Consumption

10m3/h

Water Pressure

0.2Mpa

Water Temperature

10-20℃

Cooling Water Consumption

800L/H





DESCRIPTION



Seam welding is a kind of form permanent metal welding.When welding, welding pressure, between two welding wheel spin welding wheel drives the weldment and electricity, welding current by welding and local heating, forming successively overlapping to form a continuous weld joint and realize the permanent welding.Light reaction for casing, such as automobile, motorcycle fuel tank; Barrel, such as cans, and sheet forming artifacts, such as wheels, seam welding of muffler, radiator, etc.



Adopt 75KVA/100K medium frequency inverter DC power source. Duty cycle rate is 50% while welding output current is 26KA. The three-phase power supply, through rectified by a special inverter, is converted into 1000Hz AC voltage and then is transmitted to a medium frequency transformer so the current is rectified in order to supply DC welding current.



APPLICATION

Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile. In general, the welding thickness is within 3mm of single plate.





FEATURE

1. Adopt intelligent microcomputer single piece controller which achieve pure digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online.



2. Adopt intelligent microcomputer control welding system. When the voltage fluctuates, it will compensate the welding current automatically to ensure the stability of welding.



3. Adopt digital circuit control; select the components from famous factories in the world to ensure the equipment could operate steadily in the long run.



4. Adopt SEMIKRON from West Germany, IXYS and IR silicon controlled from United States. High precision, long operating life, achieve high stability control of the magnitude of current.



5. The transmission tile axis adopts the latest mercury conductive technology from abroad. State-of –the-art technology with good performance in transmission and conductivity.



6. Welding roll wheel adopts the alloy copper material from Japan. High rigidity, good conductivity.



7. The transformer adopts the high pure silicon steel sheet from Japan, good performance in magnet and electricity conductivity. Low consumption of electricity. Stronger and more stable power.



8. Welding mold and the connection of the whole machine uses the mosaic connection. Easy to be assembled and disassembled.



9. AC pulse, secondary rectifying and three-phase medium frequency type of welding power source are available.









COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







Stainless Steel Rolling Seam Welding Machine 0



Stainless Steel Rolling Seam Welding Machine 1
