| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | Hwashi |
| Certification: | CCC |
| Model Number: | WL-S-7K |
| Minimum Order Quantity: | 1 set |
| Price: | US $5,000-7,000 / Set |
| Packaging Details: | wooden packing |
| Delivery Time: | 10-15 days after payment |
| Supply Ability: | 30 Set/Sets per Month |
| Max. Welding Thickness: | 5 Mm | Electrode Stroke: | 50 Mm |
|---|---|---|---|
| Electrode Distance: | 145-165mm | Input Voltage: | 220 V |
| Output Current: | 6000 A | Power(W): | 3.5 KVA |
| Platform Distance: | 250 Mm | Close Size: | 65-115 Mm |
| High Light: | capacitive discharge welder,capacitive discharge spot welder,250mm Capacitor Discharge Welding Machine |
||
Detailed Description

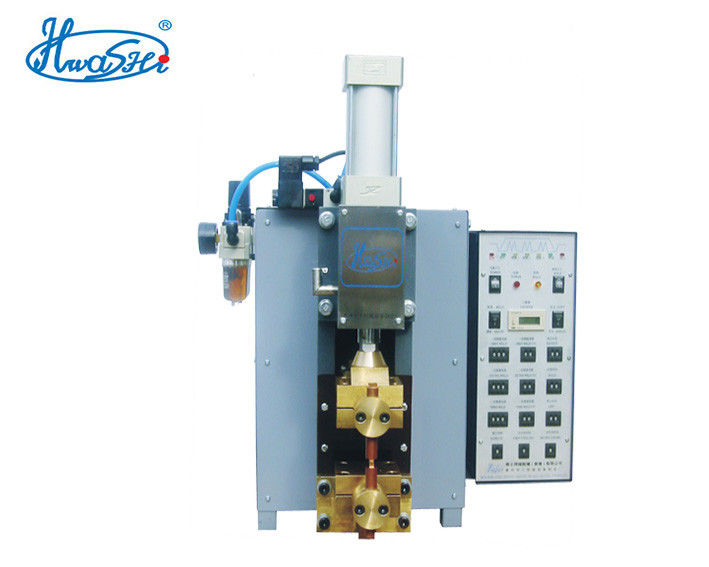

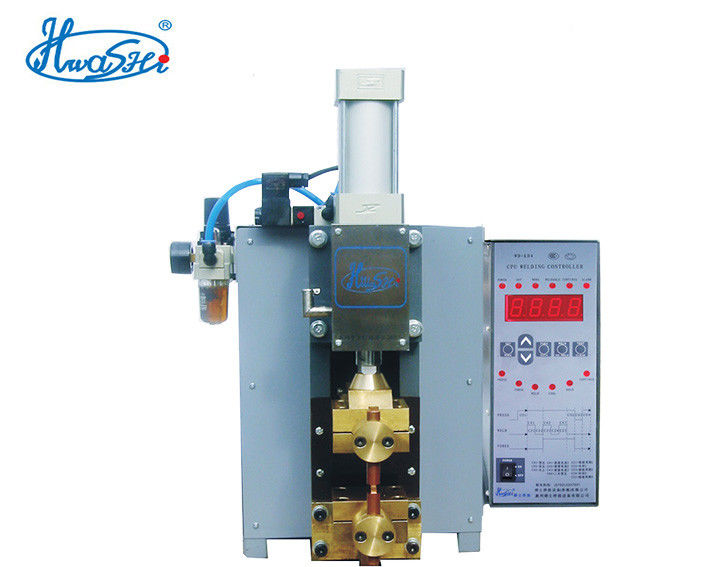

AC Precision Welding Machine for microelectronic products
Minisize Precision Spot Welder is the subseries of power frequency AC pulse, adopting 8-bit CPU microcomputer controller and pneumatic operation. It possesses the functions of circuit protector, alarm display, welding preheats, pressure maintaining, and automatic compensation for the fluctuation of power grid and voltage. It is equipped with the advantages of ensuring stable output of energy, high quality of spot welding, high production efficiency, and convenient maintenance.
Features
1. Effectively restrain the occurrence of welding spatter;
2. High working accuracy;
3. High degree of steel structure;
4. Low pressure of welding;
5. Stepless adjustment of electrode pressure range;
6. Stepless adjustment of electrode pressure stroke;
7. Flexible collocation of welding head. Indirect single-point, indirect double-point and direct single-point or direct double-point is all available.
Apllication Area
There are two types of machines of the series: single-point and double-point which are the ideal machines for welding battery connector, tab, and pole leading body. It is also applicable for welding microelectronic products.
