Capacitor Discharge Spot Welding Machine for Radiator Towel Rack
Model 1: Manual Welding Machine with Table
DESCRIPTION
Medium frequency inverter DC spot welder for towel rack adopts 250KVA welding power , with the latest generation of medium frequency inverter welding controller, it has many advantages such as short power-on time, high thermal efficiency, three-phase DC output, high working frequency and small transformer loss. It is suitable for welding carbon steel, stainless steel, galvanized, copper, aluminum, aluminum alloy, iron, nickel, high strength steel, hot forming steel and other metal materials. Medium frequency spot welding machine can be widely used in auto parts, auto body, aerospace, high and low voltage electrical, household appliances, elevator, hardware and furniture, new energy and other industries.
DETAILED PHOTO
|
|
The welding electrode is customized according to your tube diameter and shape( Round tube or retangular tube) |
|
|
There is big cylinder equipped with the bottom welding head to ensure enough pressure to weld the towel rack tube to ensure satisfying welding strength |
|
|
This is jig customized accroding to your towel rack |
|
|
Sample photo during welding test |
|
The tube is melted together with ideal Welding Strength to prevent leakage |
Model 2: Automatic Welding Machine with Automatic Mechanical Arm
DESCRIPTION
This automatic welding machine adopts double welding heads and automatic feeding system. The operator only needs to put the material onto the loading area and press the start button, the mechanical arm will catch and load the tube to precise position for welding and there is one feeder to move the towel rack forward for the welding of next tube and the welding position could be set at random. The feeder will move front and back for welding. It is suitable for batch production of towel rack. It adopts two sets of 250KVA Medium frequency DC welding machine
Option 1: The effective welding width is 300mm -1200mm and welding length is 2500mm
Option 2: The effective welding width is 1200-2000mm and welding length is 2500mm
DETAILED PHOTO
|

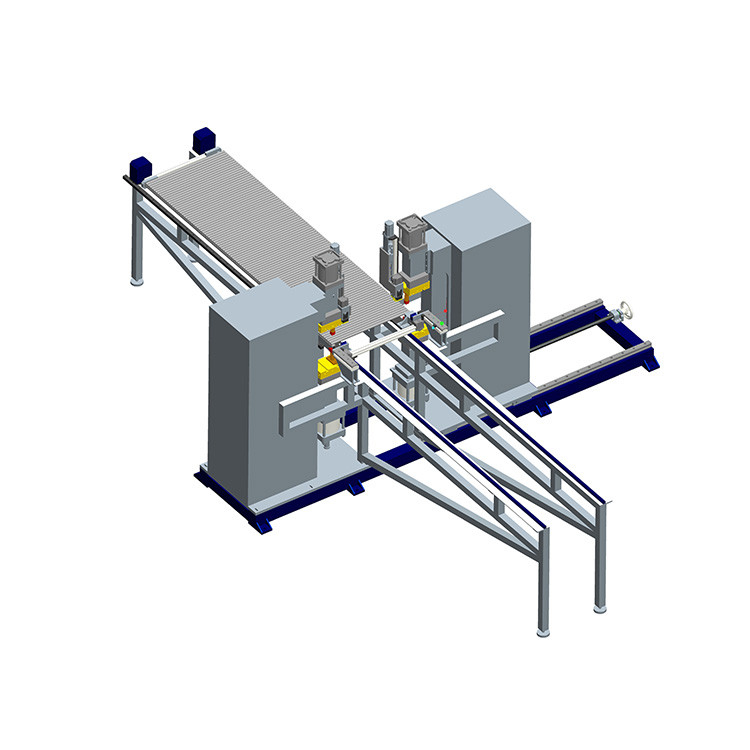

The design drawing details about the welding device and mechanical Arm
|
|
|
Mechanical Arm to load the tube to correct position of hole to hole of two tubes. |
|
|
The welding electrode is customized according to your tube diameter and shape( Round tube or retangular tube) |
|
Sample photo of welding retangular tube to round tube |
|
|
Closer View of the sample |
TECHNICAL PARAMETERS
| No. | Item | Parameters |
| 1 | Welding power | MFDC250K*2 |
| 2 | Input voltage | Three-phase 380V±10% 50Hz |
| 3 | Rated capacity | 250KVA x2 |
| 5 | Duty cycle rate | 50% |
| 6 | Frequency | 1000HZ |
| 7 | Control heat adjustment range | 15%～99% |
| 8 | Welding Models | 101kinds |
| 9 | Output way | AC |
| 10 | The maximum output voltage | DC9.6V |
| 11 | Insulation class | F |
| 12 | The secondary maximum short-circuit current | 40KA |
| 13 | The degree of time adjusting range | 0～9999ms |
| 14 | Control system | Panasonic PLC |
| 15 | Welding head | 2 groups |
| 16 | Effective welding width | 300-1200mm or 1200-2000mm |
| 17 | Effective welding length | 2500mm |
| 18 | The speed of the feeder moving | 500-1000mm/min (adjustable) |
| 19 | Welding cylinder | Ø80x100mm(adjustable) |
| 27 | Rated Air pressure | 0.6MPa |
| 28 | The water pressure | 0.2Mpa |
| 29 | The cooling water consumption | 1000L/H |
| 30 | The water temperature | 10-20℃ |
