Hwashi IBC Cage & Tank Frame Automatic Production Lines: Boost Efficiency, Cut Costs

Vertical Double Station IBC Frame Bending Machine

The IBC cage frame dual-station bending machine undergoes comprehensive processing to guarantee not only high precision in bending but also stable operations and remarkable efficiency.

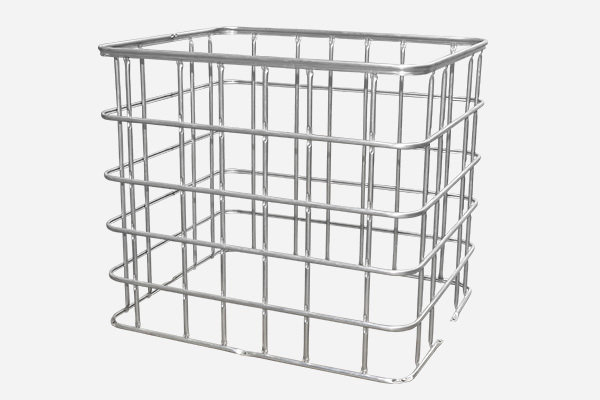

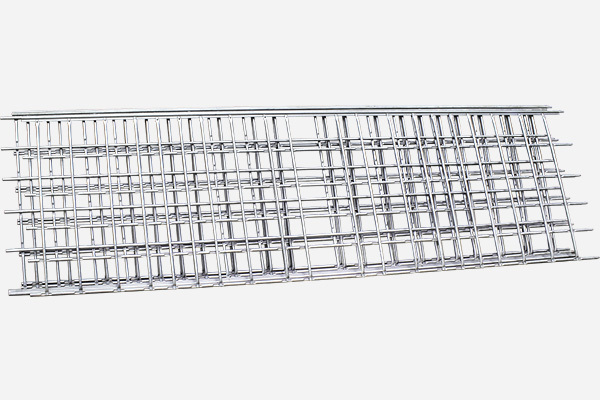

Bend the Flat Mesh into Square Shape

The bending machine expertly transforms the flat mesh into a precisely squared frame. Achieving the bending process in approximately 20-25 seconds highlights the machine's efficiency and rapid production capability.

Bending Beam

1. CNC processed bending beam is used to ensure the bending angle.

2. Each mold on the bending beam can be adjusted upward and downward for about 3mm to increase bending range.

3. 120 degree mold design made each bending angle more smooth.

Bending Frame

The machine frame boasts a robust rectangle design, featuring thicker steel columns and a door-shaped cover panel, ensuring exceptional firmness and stability.

Hydraulic Pressure Station

Specifically designed for bending pallet tank meshes, the IBC bending machine expertly shapes them into rectangular frames with precise dimensions of (1200±5mm)×(1000±5mm). This hydraulic-powered station guarantees optimal bending performance.

IBC Cage Frame Locking Machine
The IBC cage frame locking machine is meticulously crafted as a cohesive unit, boasting exceptional precision in insertion, robust locking strength, and a seamless blend of stability and efficiency during operation.

Locking Efficiency and Quality

Adjustable Clinching Arm:

Tailored to different IBC metallic cage designs, the adjustable clinching arm widens the machine's working range.
The hydraulic and pneumatic design of the clinching arm enhances machine efficiency.
The clinching arm is also engineered for the automatic joining of the two sides of the pipe.
Hydraulic Clinching Mold:
Featuring a hydraulic system, the clinching mold creates tight clinching spots for the pipe, preventing the metallic cage from cracking.

Hydraulic Pressure Station:
Equipped with an auto-sending device, the hydraulic pressure station ensures a smooth and efficient production process for metallic cages.

IBC Cage Frame Hole Making and Punching Machine
IBC cage frame hole making and punching machine is used to form the hole on the frame, so the complete frame can be fixed on the base frame.
Hole Making Efficiency and Quality
The hole making and punching machine is using hydraulic force. It will takes about 25-30sec to complete the complete process.
a. Pressing heads with pressing mold
b. Hydraulic station
c. Punching head locating panel
Left-right, forward-backward adjustable loacing panel can make the punching position in a wider using range.

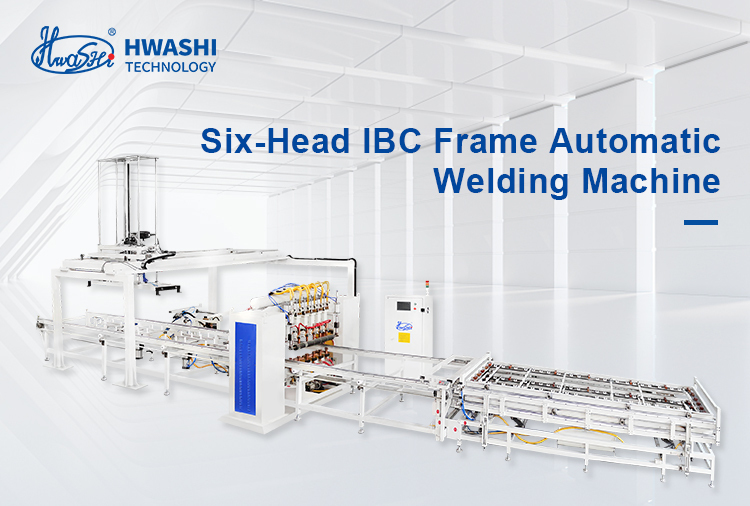

IBC Cage Base Frame Welding Machine
The base frame welding machine design adopts horizontal structure and 7 welding heads for completing the welding of base frame.The operator only need to load and unload the product. The machine will do the welding automatically.
Product Features:
1. The design adopts horizontal structure and 7 welding heads for completing the welding of base frame. The operator only need to load.
2. Welded pallet will be unload automatically. The machine will do the welding automatically.
3. It adopts 3 sets of MF DC 250KVA power. The machine helps to increase product quality and production rate, lower the production cost.
4. Solve the problem of unstable welding quality caused by manual work. Higher production rate and automation level.

Product Features-Tank Sending System:
1. This system is suitable for factories that separate the blowing machine workshop and the cage workshop.
2. The test tanks are transported by the conveyor to the cage workshop. No human intervention required.
3.Tank Sending System
4.IBC Bended,Clinching and Punched Cage Placement Area
5.Welded Pallet Stocking Area
6.Auto Pallet Assemble Path
7.Pallet Welding
8.Rotating Cage and Pallet Assemble AreaSafe Passage
9.Pallet Plate Stocking Area/ Auto Feeding
