Steel Panel Cabinet Arc Industrial Welding Robots Arm With Automatic Production Line feeder

Steel Panel Cabinet Arc Industrial Welding Robots Arm With Automatic Production Line feeder

  • Steel Panel Cabinet Arc Industrial Welding Robots Arm With Automatic Production Line feeder
Steel Panel Cabinet Arc Industrial Welding Robots Arm With Automatic Production Line feeder
Product Details:
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: HS-R6-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Steel Panel Cabinet Arc Welding Robot Arm With Automatic Production Line Feeder Application: Welding For Steel Panel Cabinet
Size: 6000x1300x1700mm Weight: 1100 Kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years
High Light:

robotic spot welding machine

,

spot welding robots

Steel Panel Cabinet Arc Welding Robot Arm With Automatic Production Line feeder





DESCRIPTION

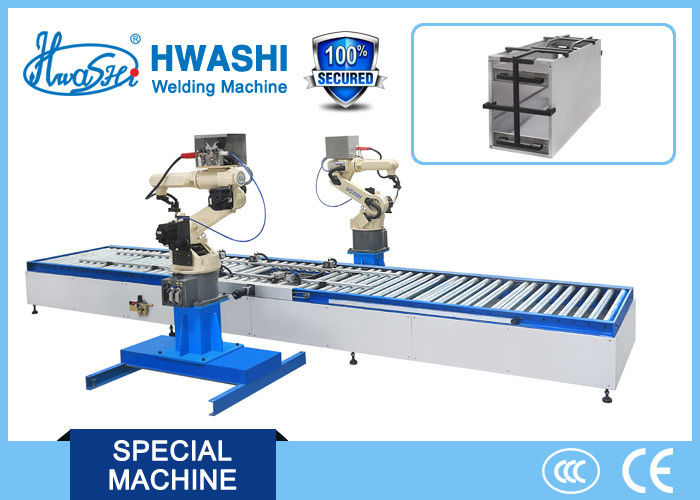

This welding robot is designed for welding Steel Panel Cabinet . Adopt 6 axis robot with MIG welder for automatic welding and automatic production line feeder( Tube roller type) . Use fixture to fix the steel panels and ensure the location requirement for robotic automatic welding.



Working process:

  1. Manual load the steel panels of cabinet box onto the fixture;
  2. Start welding; The welding robot and feeder will complete welding according to the setting program.
  3. Complete welding.
  4. The machine can achieve automatic welding, manual loading. Help to increase welding quality and production rate. Lower production cost so as to solve the instability, low production rate caused by manual work. Higher automation level.

COMPOSITION:

1. Welding system: Panasonic TIG welding machine with automatic wire feeding system. Stable performance.

2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.

3. Welding gun system: famous brand TBI welding gun.

4. Welding gun cleaning and wire cutting system: TBI brand.

5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.

6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.

7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.





Items Parameters
Model HS-06RH
Degrees of Freedom 6
Driving Method AC servo driving
Max. Payload 8kg
Repeated Positioning Accuracy ±0.05mm
Motion Range J1Axis ±170°
J2Axis +120°~ -85°
J3Axis +85°~ -165°
J4Axis ±180°
J5Axis ±135°
J6Axis ±360°
Max. Speed J1Axis 2.27rad/s, 130°/s
J2Axis 2.27rad/s, 130°/s
J3Axis 2.27rad/s, 130°/s
J4Axis 3.93rad/s, 225°/s
J5Axis 2.53rad/s, 145°/s
J6Axis 6.98rad/s, 400°/s
Allowed Torque J4Axis 12N.m
J5Axis 10N.m
J6Axis 8N.m
Environment Temperature 0℃~55℃
Humidity 20%~80%(No frost)
Other

Avoid inflammable, explosive, corrosive gas and liquid;

No water, oil, dust;

Keep away from noise(plasma)

Installation Method Ground installing
Robot Main body 180kg
Power Three-phase 380V,50HZ/60HZ,3.6KVA
Electric Cabinet Weight 200kg
