WL-C-25K Capacitor Discharge Welding Machine For Non Stick Pan Handle

WL-C-25K Capacitor Discharge Welding Machine For Non Stick Pan Handle

capacitive discharge welder

capacitor discharge welder

Capacitor Discharge Spot Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-CD-3-25K

Contact Us

Request A Quote
Product Details
Product Name:
WL-C-25K Capacitor Discharge Spot Welding Machine For Non-stick Pan Handle
Application:
Welding For All Kinds Of Cookware,metal Products
Size:
900mmX1150mmX1750mm
Weight:
2210kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

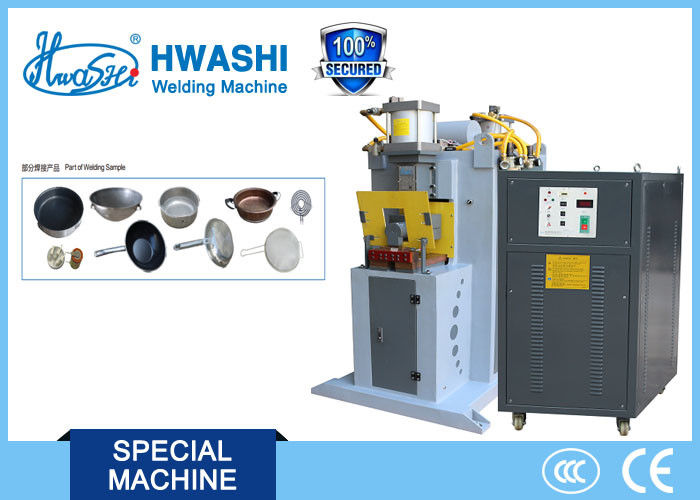

WL-C-25K Capacitor Discharge Spot Welding Machine for Non-stick Pan Handle





FEATURES:



1. Applicable to single-side single point, single-side double-point, and double-side double-point welding. Ensure that no welidng trace on one side of the work piece.

2. This machien gets low instant power from the power grid and the power factor is high, Compared with the normal AC welding machine with the same capability. It uses only 1/7 to 1/10 power. Lower using cost.



DESCRIPTION



Double-head capacitor discharge spot welder adopts tandem welding method to solve the welding difficult when the work piece is coated with paint or PET protective film. Meanwhile this machine is suitable for welding work piece without coating and welidng the thick work piece collocating with thin work piece.


SPECIFICATION

 Model

 WL-CD-3-25K

 Voltage

 380 V 50HZ

 Power

 20KVA

Energy Storage

8000J

Capacitance

73500uF

 Pressurization

2000kg

 Electrode Stroke

100 mm

 Closure

130-230mm

 Platform Distance

260mm

 Electrode Distance

490-540mm

 Cooling Water

6 Lit/min





APPLICATION
Mainly  applied to industries like low-voltage apparatus, elevator, compressor,automobile manufacturing, kitchen utensils,, glasses, hardware, household appliances,  etc.

WL-C-25K Capacitor Discharge Welding Machine For Non Stick Pan Handle 0
MATERIAL CONFIGURATION

     Novel structure, special design, good rigidity.Adopt the high definition guidance institution,high staying quality,piston straight pole pressurizing,   high speed welding, pressure steady.
      Projection weld terrace is conveninet to customers to fix tongs,and weld with multiaspect,multi-welding spot.
      Microcomputer constant voltage control system, twice section discharge, precise control of the welding time and welding current, easy to adjust.
      High conduction magnetism silicon sheet steel, secondary whole structure, output current is high, energy-saving and protect environmental .
     Water-transformer,water-controlled silicon, and water-electrode what can improve the use life of equipment.


COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.





          WL-C-25K Capacitor Discharge Welding Machine For Non Stick Pan Handle 1

WL-C-25K Capacitor Discharge Welding Machine For Non Stick Pan Handle 2



WL-C-25K Capacitor Discharge Welding Machine For Non Stick Pan Handle 3



WL-C-25K Capacitor Discharge Welding Machine For Non Stick Pan Handle 4
