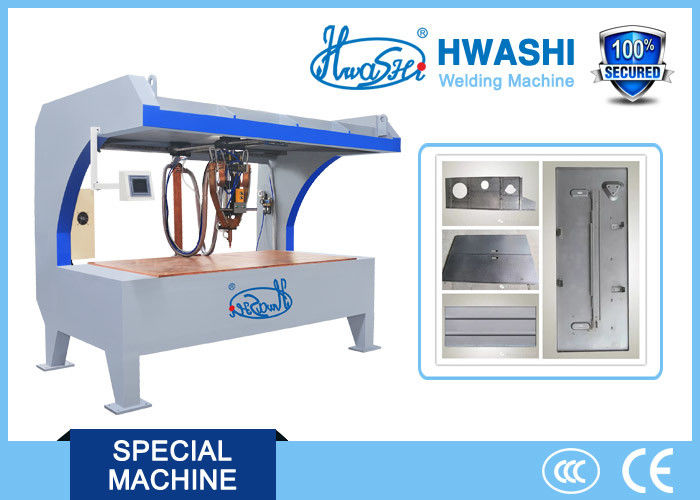

Sheet Metal Roof Type Spot Welding Machine With Copper Table and Balanced Welding Head

Sheet Metal Roof Type Spot Welding Machine With Copper Table and Balanced Welding Head

Product Details:

Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-SMF-120K

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Roof Type Spot Welding Machine With Copper Table And Balanced Welding Head Application: Welding For Sheet Metal,Cabinet
Size: 2500x3200x2300mm Weight: 3000kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years

Roof Type Spot Welding Machine With Copper Table and Balanced Welding Head





DESCRIPTION



Resistance welding machine with copper table and balanced welding head, “zero weight”. Highest flexibility, available for welding galvanized materials, normal steel, stainless steel and aluminium.

Different working areas are available upon request.



Welding machines with copper table, welding head balanced and easy to handle. Great flexibility with solutions for steel, galvanized steel, aluminium. Conventional generators Medium Frequency (1000 Hz). Actuators da45 1800 daN.



The first prototype of the Roof was developed to meet the needs of a worldwide customer. The mission was to weld pieces heavy and thick in a fixed position. The solution has been, is and will be the series Roof, which in fact meets these expectations thanks to the easy handling of the welding head positioned above the work pieces, staking them exactly where required. Easy set-up, to use, maximum flexibility and versatility: targets achieved.



Possibility to choose between different models (for example, one head, two heads, X vertical gun, G vertical gun, different sizes, different powers, quality control, etc. …) which meet the specific needs of the end user.



Constant control of the current, active on every part of the copper bench, by means of a toroid belt, controlled by a Medium Frequency system (Inverter).



Technical Parameters

No.

Item

Parameters

1

Welding power

MFDC160K

2 Input voltage Three-phase 380V±10% 50Hz
3 Rated capacity

160KVA

4 Rated switch

250KVA

5 Duty cycle rate

50%

6 Frequency

1000HZ

7 Control heat adjustment range

15%~99%

8 Welding Models

101kinds

9 Output way

AC

10 The maximum output voltage

DC9.6V

11

Insulation class

F

12

The secondary maximum short-circuit current

38KA

13

The degree of time adjusting range 0~9999ms
14 Control system Panasonic PLC









COMPETITIVE ADVANTAGE



1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.



2. Customized Service: We can help the customers to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.



3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.



4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



5. Quick Delivery: Our company provides just-in-time delivery.



6. Prompt Response to Customers: Your satisfaction is the goal Hwashi pursue.







          Sheet Metal Roof Type Spot Welding Machine With Copper Table and Balanced Welding Head







Sheet Metal Roof Type Spot Welding Machine With Copper Table and Balanced Welding Head

Sheet Metal Roof Type Spot Welding Machine With Copper Table and Balanced Welding Head

Sheet Metal Roof Type Spot Welding Machine With Copper Table and Balanced Welding Head



Sheet Metal Roof Type Spot Welding Machine With Copper Table and Balanced Welding Head
