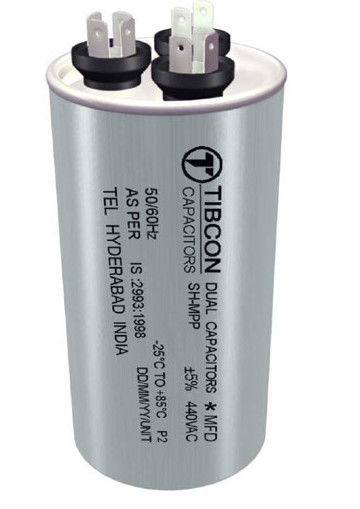

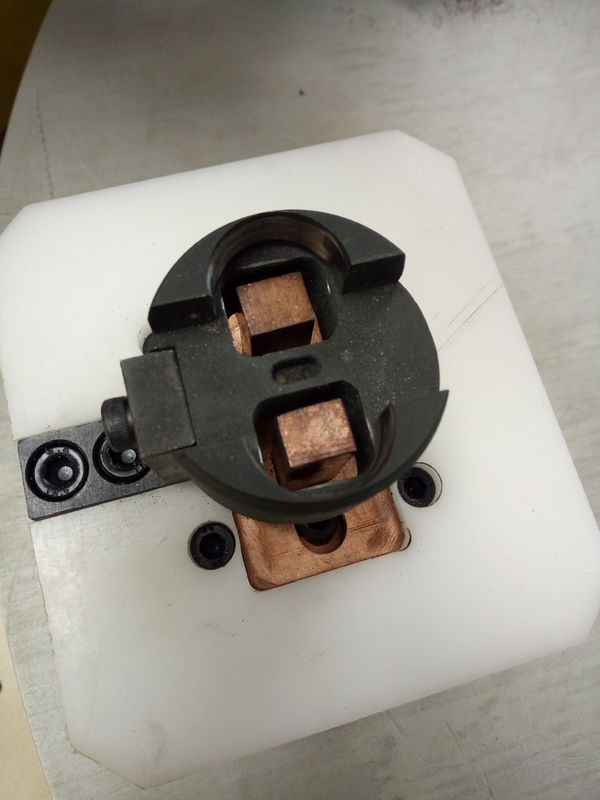

Motor Run Capacitor Dual Head Spot Welder , Capacitor Cover Plate Welding Mahine

Motor Run Capacitor Dual Head Spot Welder , Capacitor Cover Plate Welding Mahine

    • Motor Run Capacitor Dual Head Spot Welder , Capacitor Cover Plate Welding Mahine
    • Motor Run Capacitor Dual Head Spot Welder , Capacitor Cover Plate Welding Mahine
    • Motor Run Capacitor Dual Head Spot Welder , Capacitor Cover Plate Welding Mahine
  • Motor Run Capacitor Dual Head Spot Welder , Capacitor Cover Plate Welding Mahine

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-MF-35K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Motor Run Capacitor Dual Head Spot Welder , Capacitor Cover Plate Welding Mahine Application: Welding Of Copper ,aluminum Plate
    Size: 480x900x1600*mm Rated Power: 35kva
    Condition: New Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years
    Duty Cycle Rate: 20%
    High Light:

    dc spot welder

    ,

    spot welding tool

    Motor Run Capacitor Dual Head Spot Welder, Capacitor Welding Machine.



    DESCRIPTION



    MF DC Inverter Spot Welder is a set of advanced welding equipment. The welding transformer is in small size but the outout energy is large. Three-phase AC will be converted into DC after being rectified. Then the DC will be converted into medium frequency 1000HZ square wave to be connected to primary welding transformer  through the inverter circuit which is composed of IGBT. The MF square wave will become small  pulse DC to the electrode for welding work piece through the depressurization and recitifying process in the welding transformer. The Inverter will adjust the duty ratio of IGBT through the feedback of secondary current so as to achieve constant current of the welding process.



    Welding current

    Motor Run Capacitor Dual Head Spot Welder , Capacitor Cover Plate Welding Mahine 0


    SPECIFICATION



    Items

    Specification

    Display

    5 Inches Blue Display Screen

    Rated Power

    90KVA

    Input Voltage

    AC 380V, 50Hz

    Duty Cycle Rate

    25%

    Maximum Short Circuit Current

    25000A

    Inverter Frequency

    1000Hz

    Welding Cycle Period

    11

    Welding Pulse Times

    3

    Current Slow Rise And Down Control

    Yes

    Stored Welding Models

    18

    Throat Depth

    300mm( can be adjustable)

    Cylinder Size

    ¢100x100mm( can be adjustable)









        Medium Frequency Welding Machine Welding Controller



                Motor Run Capacitor Dual Head Spot Welder , Capacitor Cover Plate Welding Mahine 1

    Click here to download detail information about machine controller

    Medium Frequency Inverter Welding Machine Controller-HWASHI.pdf



    1.101 sets of programmable welding models,92 sets of seam welding modles. Be able to select the model directly when welding .

    2.The function of welidng spot curretn increase progressively, efficiently solve the instability of welding effect caused by current shunt when doing multiple points welding.

    3.Be able to set the preheat currrent ,welding current and tempering current, efficiently prevent the splash during the welding and work piece quenching after welding.The 3 electric pulses can be set separately and combine separately or freely.

    4.Be able to slowly increase and decrease the current, effectively avoid the splash and defective nugget formation during welding,Be able to obtain excellent physical performance.

    5.Energy saving,three phase power source output , high working frequency,low consumption of transformer,significant effect of saving energy.

    6.Adopt DSP and PLD  as main control unit. The electric cirsuit is simple, high intergrated, intelligent . Decrease the rate of malfunction. Easier maintenance.





    APPLICATION



    Widely applied to welding battery ,lighting electric resource automobile.medical apparatus and instruments,photoelectric communication, micro motor as well as requested chip inductor with high temperature enamed round wire/extra fine wire minimum size can be 0.02mm), wire rope,metal wire,nickle cup, can cutting wire and welding ,CCFL filed ,fuse,lamp filament.





    FEATURE



    1. The current in secondary weldin gloop is DC. Dramatically reduce the impact to the welding current due to the inductive reactance in secondary lopp when welding to the work piece.



    2.Reduce power consumination, energy saving . Reduce the requirement of cables and lots of maintance cost.



    3. Improve the power factor, reduce the production cost.



    4. Reduce interference in secondary circuit which is in the large open area: the welding current is direct current. When there is induction or magnetic material in secondary winding, the welding will not be affected.



    5. To make the power supply unit load balance: MF inverter projection welder adopts the three-phase sources which can store energy.







    COMPETITIVE ADVANTAGE



    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always  willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.



    Motor Run Capacitor Dual Head Spot Welder , Capacitor Cover Plate Welding Mahine 2

    Motor Run Capacitor Dual Head Spot Welder , Capacitor Cover Plate Welding Mahine 3
