Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-SQ-150kx20
Contact Us
DESCRIPTION

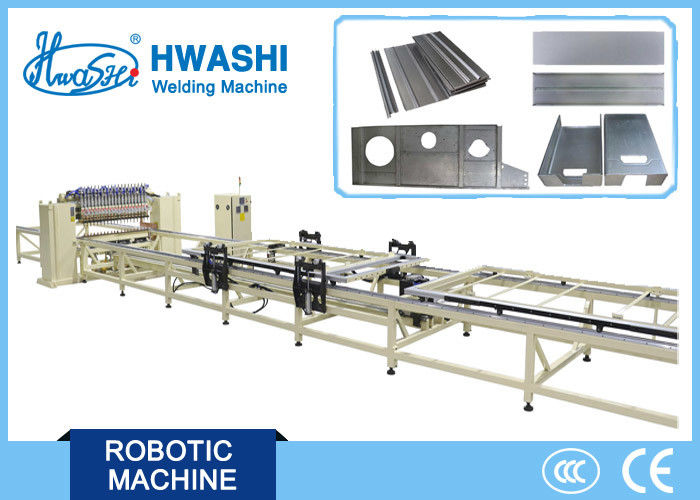

This machine are mainly use to welding heating exchange plates, it have serval welding electorde to do spot welding one by one. The effective welding width is 1500mm( canbe adjustable) no limitted for lenght.
Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes.
SPECIFICATION
| S.N | Items | Wl-SQ-150kx20 |
| 1 | Input Voltage | 380V three phase/Two phase |
| 2 | Power | 100KVA |
| 3 | Input Current | 150A |
| 4 | Output Voltage | DC12.6V |
| 5 | Maximum Welding Current | 15000Ax2 |
| 6 | Maximum Welding Model | 101Kinds |
| 7 | Welding Electrode | 20 |
| 8 | Effective Welding Width | 2000mm( can be customized) |
| 9 | Welding Fixture | 3000x3000mm |
| 10 | Welding electrode Number | 20 |
| 11 | Machine Programming System | Panasonic PLC. |
| 12 | Welding power | Medium Frequency inverter/ standard ac |
| 13 | Y Axis Servo Motor | 2 sets |
APPLICATION
This machine is suitable for welding all kinds of door plate/ galvanized steel panel.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help the customers to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal Hwashi pursue.
