    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-TSP-150K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Kitchen Oven Grill / Rack Welding Machine , Automatic Wire Spot Welder Application: Welding Of Refrigerator Wire Rack / Wire Grill / Kitchen Wire Shelf
    Size: 1800x1380x1650mm Weight: 900kg
    Condition: New Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years

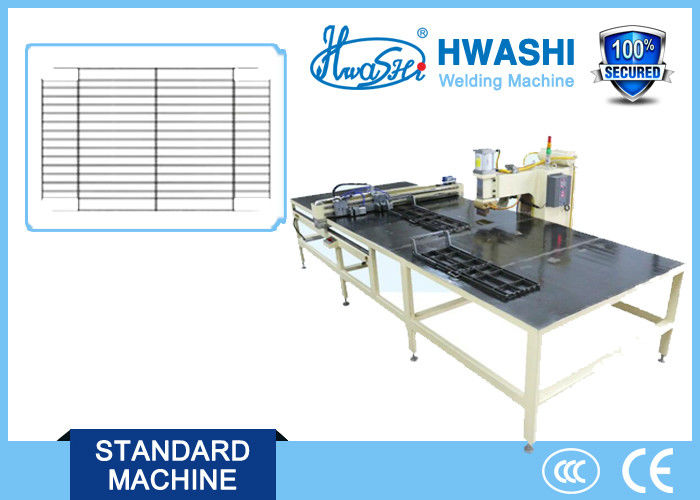

    Kitchen Oven Grill / Rack Welding Machine , Automatic Wire Spot Welder

    DESCRIPTION

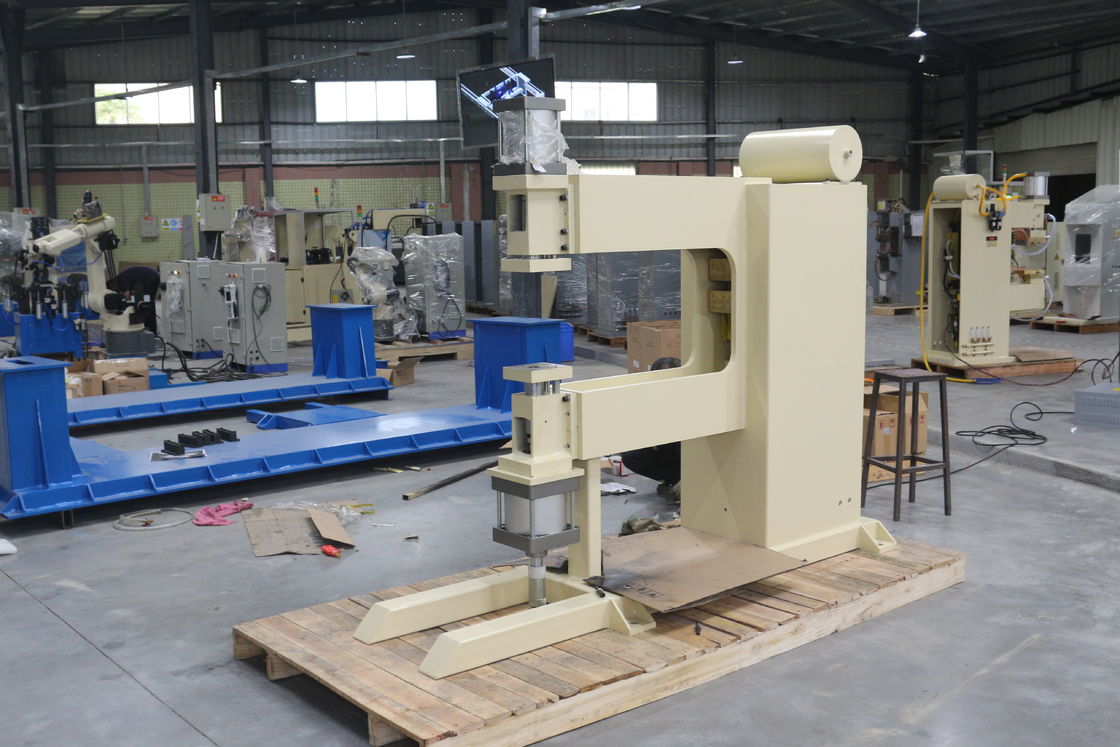

    This is machine is designed as single welding electorde head with X,Y Asix automatic fixture feeder , which can improve welding effective than normal row welding machine. It is easily to change different fixture if you have different type of wire mesh with the same wire mesh size. .Effective welding wire mesh is LxW 1000x1000 mm.





    1. Semi-automatic feeding type: Manual place the precut wires into mesh mold, automatic step feeding to welding position and welding a row automatically, then automatic draw the mesh mold to next welding position and automatic welding until to finish a complete mesh, then mesh mold automatic back to origin and get out the mesh ;



    2.The structure of the machine is simple, and the assembly is easy. Be able to match with different welding machines.



    3. Adopt the servo motor to drive the X, Y axis to run in the PLC preset program. Max to store 5000 welding positions and 18 sets welding models (18 types of welding positions and welding current of wire mesh).





    SPECIFICATION

    No. Item

    WL-TSP-150K

    AC Pulsed Power Supply

    Or DC Inverter Power Supply

    1 Input Voltage two-phase 380V
    2 Input Current 65A
    3 Output Voltage 9.65V
    4 Max Welding Current 38000A
    5 Welding Models 18 types
    6 Welding Positions 5000 types
    7 Different Welding Currents 18 types
    8 X Axis Effective Width 1000mm
    9 Y Axis Effective Width 1000mm
    10 Feeder Moving Speed 0.5m/sec
    11 Welding Cylinder ¢160x100mm




    We have manufacturing different type of wire mesh welding machine for about 20 years, this one is a simple one , if you need  higher automation machine , you are almost welcome to contact us for more information and welding video.





    APPLICATION



    Suitable for welding metal wire mesh, goods shelf, guard rail, air conditioner mesh, dish rack ,Refrigerator Wire Rack , Wire Grill , Kitchen Wire Shelf, iron wire mesh, door reinforcing rib, air conditioner backboard etc.





    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Can custom design and manufacture based on customers' needs.



    3. Use the most advanced technology ball screw driving to realize higher precision and efficiency.



    4. Key parts use the best quality. Transformer made of copper by ourselves, no spark and excellent welding quality.



    5. There are similar stock to show to customers when you come to visit.



    6. Quick delivery: 15-30 days as we have spare parts stock.



    7. Can do drop shipping: do proper export wood package and arrange shipment for customers.







              Kitchen Oven Grill / Rack Automatic Welding Machine , Auto Wire Spot Welder

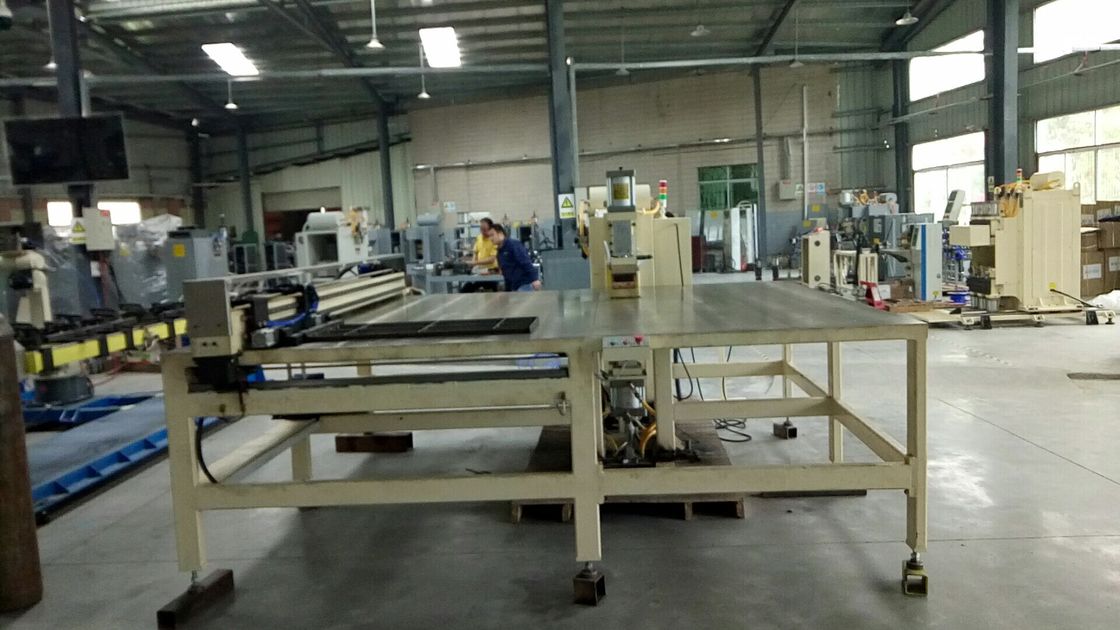

    Double fixture for achieve cycle welding, help to enhance welding effective, and lower labor cost. More detail information about machine you can check this file.Single head wire mesh row welding machine.pdf







    Kitchen Oven Grill / Rack Automatic Welding Machine , Auto Wire Spot Welder

     Kitchen Oven Grill / Rack Automatic Welding Machine , Auto Wire Spot WelderKitchen Oven Grill / Rack Automatic Welding Machine , Auto Wire Spot Welder

    Kitchen Oven Grill / Rack Automatic Welding Machine , Auto Wire Spot Welder    Kitchen Oven Grill / Rack Automatic Welding Machine , Auto Wire Spot Welder
